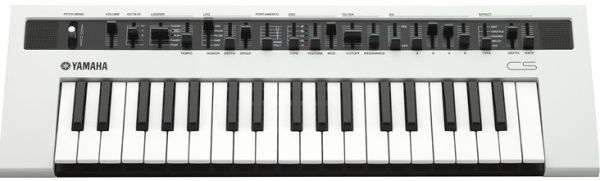

Yamaha Reface CS Synthesizer
Product Information
reface CS
Analog modelling synth: simple control, complex sound, endless possibilities.
-8-note polyphonic Virtual Analog synth
-Five unique oscillator types
-Powerful and intuitive control
hands-on
reface CS overview
Waves
Multi-saw
Pulse
OSC Sync
Ring Mod
FM
Multi-saw
Multi Saw produces a typical synthesizer sound on the basis of sawtooth waveforms.
The term "Multi" stands for the possibility to layer multiple waveforms.
TEXTURE :
Adds an octave lower Sub-Oscillator
MOD :
Layers multiple sawtooth waveforms for a thicker sound.
Controls
LFO
EG
FILTER
EFFECT
PORTAMENTO
LFO
The [DEPTH] and [SPEED] sliders control modulation speed and intensity. In addition to typical LFO uses, you can create interesting sound effects using extreme settings. So if you want get back at your motorcycle-driving neighbors, try out the following example! (Some amplification may be required!)
Looper
Integrated MIDI Phrase Looper: capture song ideas or just jam
The integrated Looper lets you capture your performance and play it back. This is useful in a number of ways. First, you can use it to jam over top of a bass line or other ostinato part. Second, it's a great way to dial in a sound by tweaking the panel while the Looper plays for you.
Experience more
How To Use The Oscillator With Reface CS
How To Build A Sound With Reface CS
How To Build Pad Sounds With Reface CS
How To Build A Bass Sound With Reface CS
How To Build FX And Sweeps With Reface CS
How To Use The Reface CS With Cubase
Get more tips on yamahasynth.com
reface concept site
Sound
・Analog Physical Modeling Engine with multiple synthesis and oscillator types
Each oscillator type has flexible LFO and ADSR routing plus unique Texture and Mod controls that work as follows:
Multi-saw
Texture, control adds sub-oscillator
Mod, layers multiple sawtooth waves
Pulse
Texture, changes pitch of 2nd square wave
Mod, change pulse width
Oscillator Sync
Texture, changes pitch and tone of OSC2
Mod, sets pitch change amount
Ring Modulation
Texture, changes pitch of OSC1
Mod, changes pitch of OSC2
Frequency Modulation
Texture, sets Modulation amount
Mod, changes pitch of the Modulator
・Onboard effects processor with five types add depth to your sound
The effect types are: OFF (effect bypass,) Delay, VCM Phaser, VCM Chorus/Flanger and Distortion
・8-note polyphony allows complex chords and pads or switch to mono Mode for fat synth bass or solo leads
Control
・Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing
・Integrated Phrase Looper: capture song ideas or just jam
・Continuous controller pedal input for volume control
Mobility & Connectivity
・2W 3cm stereo speaker system lets you play any place, any time
Specially designed bass reflex port technology enhances bass response for full, rich sound
・Battery powered - uses six "AA" batteries with five hours of life
・USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device
・Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more
・A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument
Create your Soundmondo. Inspire and be inspired.
Soundmondo is a free sound sharing community that lets you discover, create and share reface Voices and Set Lists using Google Chrome any place, any time you’re online.
Powered by Web MIDI, Soundmondo is simple to use - just connect reface to Chrome and you’re ready to create or start browsing.
Visit Soundmondo
Song creation anywhere - Cubasis LE Bundle
Cubasis LE is the compact version of Steinberg's streamlined, multitouch sequencer for the iPad, providing the same look and feel of its bigger brother Cubasis.
http://www.steinberg.net/en/products/mobile_apps/cubasis_le/start.html
reface inside
Specification
|
reface CS |
reface DX |
reface CP |
reface YC |
|
---|---|---|---|---|---|
Amplifiers |
2 W x 2 | 2 W x 2 | 2 W x 2 | 2 W x 2 | |
Speakers |
3 cm x 2 | 3 cm x 2 | 3 cm x 2 | 3 cm x 2 | |
Power Consumption |
6 W (When using PA-130 power adaptor) | 6 W (When using PA-130 power adaptor) | 6 W (When using PA-130 power adaptor) | 6 W (When using PA-130 power adaptor) | |
Battery Life |
Approximately 5 hours | Approximately 5 hours | Approximately 5 hours | Approximately 5 hours | |
Auto Power Off |
Yes | Yes | Yes | Yes | |
Power Supply |
Adaptors |
PA-130 or an equivalent recommended by Yamaha | PA-130 or an equivalent recommended by Yamaha | PA-130 or an equivalent recommended by Yamaha | PA-130 or an equivalent recommended by Yamaha |
Batteries |
Six “AA” size batteries or Ni-MH rechargeable batteries | Six “AA” size batteries or Ni-MH rechargeable batteries | Six “AA” size batteries or Ni-MH rechargeable batteries | Six “AA” size batteries or Ni-MH rechargeable batteries | |
Included |
AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale | AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale | AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale | AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale | |
Number of types |
5 OSC types | 4 Operators, 12 Algorithms | 6 Keyboard types | 5 Organ types | |
Effects | Distortion, VCM Chorus/Flanger, VCM Phaser, Delay | Distortion/VCM Touch Wah/Chorus/VCM Flanger/VCM Phaser/Delay/Reverb | Drive, Tremolo/VCM Wah, Chorus/VCM Phaser, Digital Delay/Analog-Type Delay, Reverb | Rotary Speaker, Distortion, Reverb | |
Number of voices |
- | 32 (memorable) | - | - | |
Dimensions |
Width |
530 mm (20 7/8") | 530 mm (20 7/8") | 530 mm (20 7/8") | 530 mm (20 7/8") |
Height |
60 mm (2 3/8") | 60 mm (2 3/8") | 60 mm (2 3/8") | 60 mm (2 3/8") | |
Depth |
175 mm (6 7/8") | 175 mm (6 7/8") | 175 mm (6 7/8") | 175 mm (6 7/8") | |
Weight |
1.9 kg (4 lbs, 3 oz) (not including batteries) | 1.9 kg (4 lbs, 3 oz) (not including batteries) | 1.9 kg (4 lbs, 3 oz) (not including batteries) | 1.9 kg (4 lbs, 3 oz) (not including batteries) | |
Number of Keys |
37 keys | 37 keys | 37 keys | 37 keys | |
Type |
HQ mini (High-Quality mini) | HQ mini (High-Quality mini) | HQ mini (High-Quality mini) | HQ mini (High-Quality mini) | |
Initial Touch |
Yes | Yes | Yes | Yes | |
Maximum Polyphony |
8 | 8 | 128 | 128 | |
Engine |
AN (Analog Physical Modeling) | FM | SCM + AWM2 | AWM (Organ Flutes) | |
Phrase Looper |
Yes | Yes | - | - | |
Display |
Type |
- | Full Dot LCD (128 x 64 dots) | - | - |
DC IN |
DC IN (12 V) jack | DC IN (12 V) jack | DC IN (12 V) jack | DC IN (12 V) jack | |
Headphones |
PHONES (6.3 mm, stereo phone jack) | PHONES (6.3 mm, stereo phone jack) | PHONES (6.3 mm, stereo phone jack) | PHONES (6.3 mm, stereo phone jack) | |
MIDI |
MIDI (mini-DIN IN/OUT) | MIDI (mini-DIN IN/OUT) | MIDI (mini-DIN IN/OUT) | MIDI (mini-DIN IN/OUT) | |
AUX IN |
AUX IN (3.5 mm, mini stereo phone jack) | AUX IN (3.5 mm, mini stereo phone jack) | AUX IN (3.5 mm, mini stereo phone jack) | AUX IN (3.5 mm, mini stereo phone jack) | |
OUT PUT |
L/MONO, R (6.3 mm, TS phone jack, unbalanced) | L/MONO, R (6.3 mm, TS phone jack, unbalanced) | L/MONO, R (6.3 mm, TS phone jack, unbalanced) | L/MONO, R (6.3 mm, TS phone jack, unbalanced) | |
USB TO HOST |
USB (TO HOST) | USB (TO HOST) | USB (TO HOST) | USB (TO HOST) | |
Pedal |
Type |
FOOT CONTROLLER: FC7 (optional) (to adjust the volume) | SUSTAIN: FC3(A), FC4(A), FC5 (optional) | SUSTAIN: FC3(A), FC4(A), FC5 (optional) | FOOT CONTROLLER: FC7 (optional) (to adjust the volume) |
Half damper |
- | NO (*Half damper's control message can be sent to external device via MIDI) | Yes (only connceted to FC3(A)) | - |
Brand | Yamaha |
---|---|
Warranty | 1 Year Manufacturer |
