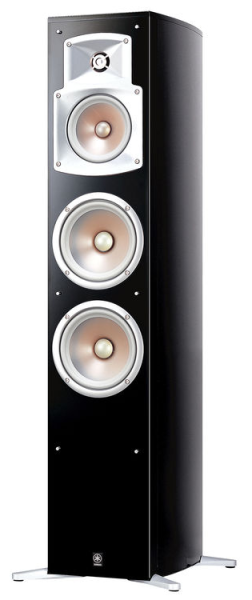

Yamaha NS-555 Floor Standing Home Theater Speaker

AvailabilityIn stock
Rs 135,999

3-way/4-driver Bass Reflex Speaker System
Yamaha's NS-555 speaker system has been designed specifically for home theater applications. The floor standing speaker is a bass-reflex design that can be used for main channels and incorporates a pair of 6 1/4" polymer-injected mica diaphragm (PMD) cone woofers, a 5" midrange cone driver and a 1” aluminum dome tweeter. For improved imaging, the midrange and tweeter utilize Yamaha's exclusive waveguide horns.

Waveguide Horn
Unlike most homes, movie theaters use sound absorbing materials on walls and ceilings. The result is that the sound reaching your ears is the sound wave produced by the speakers rather than reflected off the walls. Yamaha has created waveguides that greatly reduce reflected sound and increase the proportion of directly generated sound waves reaching your ears. The result is a clear and precise sense of sound direction and placement.

Internally Wired with Monster Cable
Yamaha has chosen to ensure optimum sound quality by internally wiring some of the components with Monster Cable™. This ensures a clean, clear signal from the crossover network to the speaker driver.

Speaker Stands Included
Yamaha's matching speaker stands provides the solid footing necessary for full floor contact, enhanced stability and minimal vibration resonance. The stands also provide an attractive counterpoint to the cabinet.

Magnetic Shielding
The speaker is magnetically shielded, so it can be placed on a TV or video monitor without degrading the picture via stray magnetic fields.

Bi-wiring Capability
To further maintain signal purity, Yamaha provides bi-wiring capability for the NS-555 speakers. There are separate +/- terminals for the woofer(s) and other driver(s). The separation reduces modulation distortion and better sound quality.

Performance Enhanced by a Handsome Cabinet
The EF series speakers are enclosed in an elliptical form cabinet with a high gloss black piano finish, which provides solid construction with minimal sound diffraction.

New Grille Design
New grille design and grille cloth provide an attractive and acoustically transparent protective cover for the drivers.


TYPE: 3-way, 4-speaker, bass reflex, magnetically shielded floorstanding tower


Dual 6 1/4” polymer-injected mica diaphragm (PMD) woofers

5” cone midrange with waveguide horn

1” aluminum dome tweeter with waveguide horn

INPUT POWER: 100 watts nominal, 250 watts music power


SENSITIVITY: 88 dB / 2.83 V / 1 m


DIMENSIONS: (W x H x D) 8-3/4” x 39-7/16” x 12-1/4”

WEIGHT: 44.1 lbs.

Recommended Usage Front speakers
Type 3-way bass reflex design
Woofers Dual 6-1/2" PMD cone
MidRange Driver 5" cone with waveguide horn
Tweeters 1" aluminum dome with waveguide horn
Magnetic Shielding Yes
Twin Bass Reflex Ports Single port
Gold-Plated Brass Extruded Terminals Bi-wiring terminals
Frequency Response 30 Hz - 35 kHz
Sensitivity 88 dB / 2.83 V / 1 m
Input Power (Maximum / Nominal) 250 W / 100 W
Impedance 6 ohms
Product Dimensions (W x H x D) 8-3/4" x 38-9/16" x 13-9/16"
Product Weight (lbs. each) 44.1
