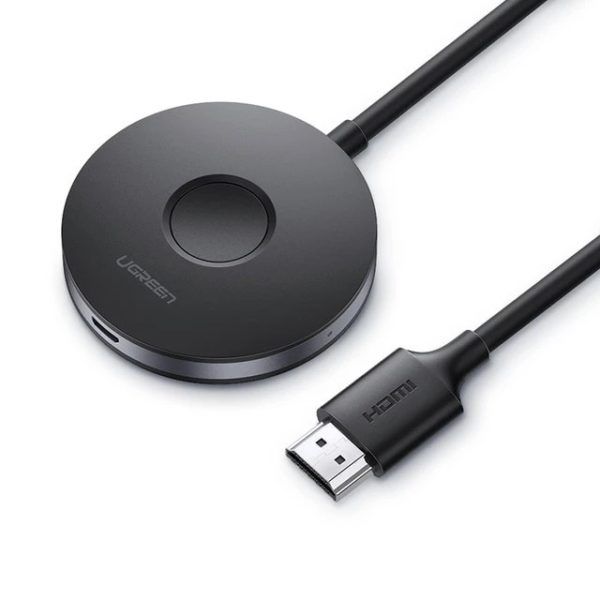

Ugreen HDMI Display Receiver Wireless

Small Screen to Big Screen

Wifi display dongle will facilitate your life! You can easily connect smartphone, notebook or iPad to TV, remote control projector or monitor and whatever you see on your mobile devices will be mirrored onto the bigger screen, which is easier to watch and is suitable for sharing. Wide Used in Car, Home, Office,School to mirroring screen from phone to big screen. Also this wireless hdmi receiver for tv will protect your eyes and your eyes of family.

Dual Band 5G/2.4G

5GHz+2.4GHz dual-band, time delay of 5Ghz wireless transmission is less than 0.2s, the screen mirroring is almost synchronou,without the shaky image and the choppy sound. Wireless display adapter is designed with extending HDMI cable which solves the shortcome of the first generation. Powered by RAM Dual core chipset. Support H.265/HEVC Decoder, support 4K(3840 X 2160) and 1080P resolution.

Same screen display – operation method

Function description: mobile phone and display device play the same content synchronously.

iOS system – operation method 1

Find the Wi-Fi function in the Settings of iPhone/iPad and open it, search for UGREEN wireless device and connect it. (For example: device name: Ugreen-BFC8B810, password: 123456 (changeable).

Swipe the screen up to open control center, click the screen mirror and select the UGREEN wireless device.

iOS system – operation method 2

Find the Wi-Fi function in the Settings of iPhone/iPad and open it, search for UGREEN wireless device and connect it. (For example: device name: Ugreen-BFC8B810, password: 123456 (changeable).

Open the browser and enter the address 192.168.203.1 to enter the server.

Click Internet Settings, select Wi-Fi and connect.

Swipe the screen up to open control center, click the screen mirror and select the UGREEN wireless device.

Note:

Your phone cannot connect to Wi-Fi by the operation method 1, while your phone can connect to Wi-Fi by the operation method 2.

Android – operating method

Turn on phone/tablet wireless function.

Search and connect UGREEN wireless device.

Different wireless function settings path for different phone/tablet

Huawei:

drop-down menu – Wireless Screen Casting/Multi-Screen Interaction

Samsung:

 swipe down -Smart View

One plus:

Settings – Display – Screen Cast

LG:

Settings – Network – Screen Sharing

Google:

Settings – Associated device – Cast

Xiaomi:

Settings – More Connection Ways – Wireless Display

OPPO:

 Settings – Other Wireless Connections – Wireless Display/Multi-ScreenInteraction

Vivo:

 Settings – More Connections – Wireless Display

Meizu:

Settings – Display – Screen Cast

Lenovo:

Settings – Display – Wireless Display

Hammer:

 Settings – Wireless Network – Wireless Display

Nubia:

 Screen Cast

Casting Display – operation method (for Android and iOS phones)

Find the Wi-Fi function in the Settings of phone/tablet and open it, search for UGREEN wireless device and connect it. (For example: device name: Ugreen-BFC8B810, password: 123456 (changeable).

Open the browser and enter the address 192.168.203.1 to enter the server.

Click Internet Settings, select Wi-Fi network and connect

Open video App (such as iQIYI, youku, etc.), search video and click play. Click “TV” at the top of the play page to play video.

Specifications

Brand Name:

UGREEN

Operation System:

 Android

Remote Control:

Not Included

Model Number:

 (60356)

Recording:

 No

Decode Ability:

 1080P (Full-HD)

Type:

Normal

Output:

HDMI male

Wi-Fi service frequency:

 2.4G/5G

CPU:

 Dual-core Corex-A7 1.2 GHz

Resolutions:

 4Kx2K@30Hz,1920×1080@60Hz/1280×720@60Hz

Working Current:

300-400mA

Power supply:

Micro USB port 5V

Video format:

MP4, AVI, WMV, MKV, MOV, RM, and RMVB

Dual mode:

 same screen/casting screen

Protocol standard:

Supports 802.11a/b/g/n/ac

Supports:

Android/iOS

HDMI cable length:

50CM

Micro USB cable length:

1M
