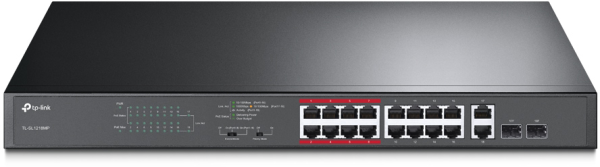

TP LINK TL-SL1218MP 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
TL-SL1218MP
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Extend Mode ButtonTL-SL1218MP
Up to 250mPriority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
HARDWARE FEATURES | |
|---|---|
| Interface | 16 PoE+ 10/100Mbps RJ45 Ports 2 10/100/1000Mbps RJ45 Ports 2 Combo Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Power Supply | 100-240V AC, 50/60 Hz |
| Backup Bandwidth | 7.2 Gbps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W |
| Mac Address Table | 8K |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| Max Power Consumption | 18.7 W (no PD connected) 217.2 W (with 192W PD connected) |
| Max Heat Dissipation | 63.9 BTU/h (no PD connected) 741.2 BTU/h (with 192W PD connected) |
SOFTWARE FEATURES
| |
|---|---|
| Advanced Features | Compatible with IEEE 802.3at/af compliant devices Port Priority Mode Extend Mode (Up to 250m PoE power supply and data transmission) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
OTHERS
| |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | TL-SL1218MP Power Cable Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Brand | TP Link |
|---|---|
| Warranty | 7 Day Replacement |
| Shipping | 24 - 48 hrs |
