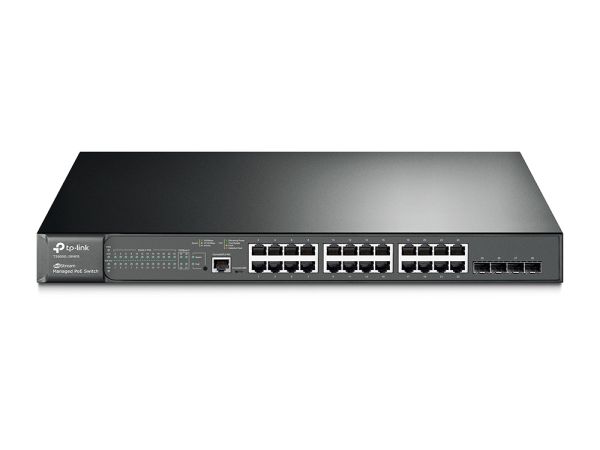

Tp Link T2600G-28MPS (TL-SG3424P) JetStream 24-Port Gigabit L2 Managed PoE+ Switch with 4 SFP Slots
The T2600G-28MPS provides 24 10/100/1000Mbps ports that support 802.3at/af-compliant PoE , with a total PoE power supply of up to 384W, giving users the power and flexibility to deploy wireless access points or IP-based network surveillance cameras. In addition, it provides high performance static routing, enterprise-level QoS, advanced security strategies and rich layer 2 management attributes. With all these advanced features, the JetStream Gigabit L2 Managed PoE Switch is an ideal choice for small and medium business networking solutions.
The switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and other advanced security strategies. OAM, L2PT and sFlow can meet the requirement of large ISP customers, and the IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2 Switch and gigabit capability, TP-LINK JetStream 24-Port Gigabit L2 managed PoE+ Switch T2600G-28MPS provides you the ideal network solution.
IEEE 802.3at/af-compliant Power over Ethernet
The T2600G-28MPS supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 384W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T2600G-28MPS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
Secure Networking
The T2600G-28MPS provides IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.
Abundant L2 and L2+ features
T2600G-28MPS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. In addition, the switch provides advanced features for network maintenance, including LoopBack Detection and Cable Diagnostics. IGMP Snooping ensures intelligent forwarding of the multicast stream to only the appropriate subscribers, while IGMP throttling & filtering restricts each subscriber on a port level to prevent unauthorized multicast access. Moreover, T2600G-28MPS supports L2+ feature, static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and directs network traffic for more efficient use.
IPv6 Support
T2600G-28MPS supports various IPv6 functions, such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which guarantees your network is ready for the Next Generation Network (NGN) without the need to upgrade your network equipment.
Ethernet OAM
The T2600G-28MPS provides 802.3ah OAM and Device Link Detection Protocol (DLDP) improves the monitoring and troubleshooting of Ethernet networks, while helping to facilitate network management.
Enterprise Level Management Features
T2600G-28MPS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
Supports 24 802.3at/af-compliant POE+ ports with a total power supply of 384W
L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources
IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
L2/L3/L4 QoS and IGMP snooping optimize voice and video application
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 1000Mbps SFP Slots 1 Console Port 1 Micro-USB Console Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100~240VAC, 50/60Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 384W |
| Dimensions ( W x D x H ) | 17.3*13*1.7 in.(440*330*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 29.02W (220V/50Hz with no PD connected) 468.7W (110V/60Hz with 384W PD connected) |
| Max Heat Dissipation | 99.02 BTU/h (with no PD connected) 1599.20 BTU/h (with 384W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 41.7Mpps |
| MAC Address Table | 16k |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| L2 and L2+ Features | Static Routing DHCP Relay DHCP Server IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control L2PT |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) 802.1Q/MAC/Protocol-based/Private VLAN GARP/GVRP |
| Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p,DSCP, protocol and VLAN ID Time Range Based |
| Security | IP-MAC-Port Binding AAA 802.1x and Radius Authentication DoS Defend Dynamic ARP Inspection (DAI) SSH v1/v2 SSL v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 ACL DHCPv6 Snooping IPv6 Interface |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP IPv6 ACL IPv6 Interface IPv6 Routing DHCPv6 Relay DHCPv6 Snooping |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) sFlow PPPoE Circuit ID DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 Dual Image CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Password Recovery |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Switch Power Cord Quick Installation Guide Resource CD Rackmount Kit Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Warranty | *** |
| Brand | TP Link |
|---|---|
| Warranty | 1 Year Manufacturer |
| Shipping | Same Day From Lahore |
