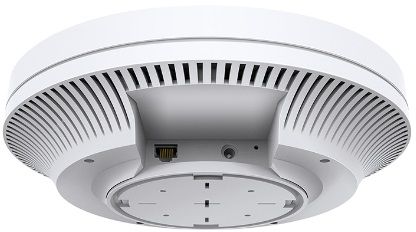

Tp Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

Ultra-High Performing
AX3600 Enterprise Wireless for
High-Density Environments

High-Density Connectivity with 4× Increased Capacity

OFDMA^* and Uplink & Downlink MU-MIMO^** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Hospitality

High Quality and Full Coverage Wi-Fi

Restaurant

Full Wi-Fi Coverage
in High-Density
Environment

Shopping Mall

Social Marketing
for O2O

Meeting Room

Wireless and Wired
Connections for
dense usage

Railway Station

High-Density Wi-Fi

Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)^†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

25% more data
encoded at one time

11% faster speed

5GHz

2.4GHz

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Wi-Fi 6 AP for High-Density Environments

EAP660 HD

Wall Plate AP

Outdoor AP

Ceiling Mount AP

JetStream PoE Switch

Omada Router

Cloud Access

Omada

Cloud-Based Controller

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Optimized Wired Performance with 2.5 GE PoE+ Port

Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

2.5 GE PoE+ Port

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Boost Network Efficiency in All Aspects

With Rich Advanced Features

Band Steering

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance

ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness

Increases average network throughput in heavily congested environments

Easy to Mount with Refined Industrial Design

1 push up 2 simply rotate to lock

Secure Guest Network with SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS authentication simplifies the captive portal even further to simplify connectivity and power up your business.
