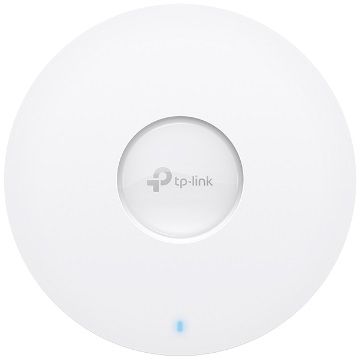

TP Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point

The New Slimline Business WiFi 6

AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 WiFi 6 Speed

2402 Mbps on 5 GHz +
574 Mbps on 2.4 GHz^†



High-Efficiency WiFi 6

More connected devices can enjoy faster speeds



Centralized Cloud Management

Manage the whole network locally or from the cloud



160 MHz Channel

Double the data at peak transmission times on a single stream with HE160



Auto Channel Selection and Power Adjustment*

Optimize overall performance by reducing WiFi interference



Omada Mesh Technology

More flexible and convenient wireless deployment



Seamless Roaming

Uninterrupted streaming when moving between APs



Ultra-Slim Design

160 mm × 33.6 mm elegant design brings more agility



PoE+ Powered

Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Designed for Business Environments

Requiring High-Performance WiFi

Hospitality

High-quality and full coverage Guest WiFi



Education

High-security WiFi to connect more devices



Shopping Mall

Seamless marketing WiFi coverage to boost business



Office

Stable, seamless, and high-security WiFi coverage



Meeting Room

Faster streaming, downloading, video conferencing, and more

Power up Your Business with New-Era Business WiFi 6

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Superior WiFi 6 Speeds

Higher Efficiency for More Devices

Lightning-Fast AX3000 WiFi 6 Speeds

New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5.Every application feels more fluid with drastically improved WiFi speeds.



1024 QAM

25% more data encoded at one time



Long OFDM Symbol

11% faster speed



HE160

Double the data at peak transmission times on a single stream

5GHz

2.4GHz

2 Stream WiFi 5

Ordinary 2 Stream WiFi 6 with HE80

EAP650: 2 Stream WiFi 6 with HE160

2 Stream WiFi 5

EAP650: 2 Stream WiFi 6

867 Mbps

1201 Mbps

2402 Mbps

300 Mbps

574 Mbps

177% Faster

90% Faster

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.



Hardware, Software, or Cloud-Based Controllers



Centralized Cloud Management



Intelligent Monitoring



Zero-Touch Provisioning (ZTP)

Internet

Cloud Access

WiFi 6 Ceiling Mount AP EAP650

Wall Plate AP

Outdoor AP

JetStream PoE Switches

Omada VPN Router

Web Browser

Omada App

Omada Hardware Controller

Or

Omada Software Controller

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Before Optimization

After Optimization

Easy Deployment & Higher Performance by Omada Mesh

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Traditional Wired Networking



Mesh Wireless Networking

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Intelligent Self-Organization



Self-Healing

Always Stay Smooth with Fast Roaming

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.



33.6mm

160mm

54mm

86mm

Easy to Mount with Refined Industrial Design

1

Push u

2

Rotate to lock

Ceiling / Wall / Junction Box Mounting (Kits included)

Boosted Network Security and Efficiency

Security

Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.



Boost Business with Facebook WiFi and SMS Login

Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.



WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Efficiency

Band Steering

Automatically moves dual band devices onto the wider 5GHz band for faster connections

Load Balance

Ensures large numbers of users have smooth network experiences in high-density business network

Airtime Fairness

Increases average network throughput in heavily congested environments

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
