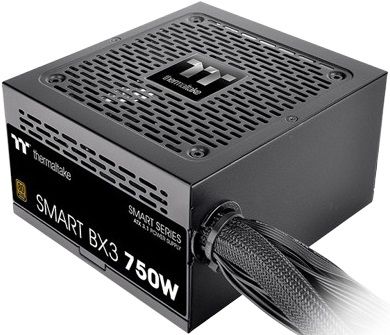

Thermaltake Smart BX3 Bronze 750W 80 Plus Bronze ATX 3.1 Non Modular Power Supply
Intel ATX 3.1 Standard
Simple Black Flat Cables
120mm Fluid Bearing Fan
Thermaltake Smart BX3 Bronze 750W 80 Plus Bronze ATX 3.1 Non Modular Power Supply
Unmatched Reliability ATX 3.1 Power Supply
The Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid
ATX 3.1 Ready
Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
ATX 3.1
ATX 2.0
Total power excursion
Be Smart, Stay Quiet
Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.
High Quality 105°C/221°F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
|
AC INPUT |
Input Voltage: 100 - 240V~ |
||||
|
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
Max Output Current |
18A |
18A |
62.5A |
0.3A |
3A |
|
Max Output Power |
110W |
750W |
3.6W |
15W |
|
|
Total Power |
750W |
||||
Built-in Industrial Grade Protection
To protect the hardware, Smart BX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
Non-Modular Flat Cable Design
Smart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |  |
X 1 | 600mm |
| ATX 12V (4+4Pin) |
X 2 |  |
X 1 | 650mm+150mm |
| PCIe (6+2Pin) |
X 2 |  |
X 1 | 500mm+150mm |
| SATA (5Pin) |
X 4 |  |
X 1 | 500mm+150mm +150mm+150mm |
| Peripheral | X 4 |  |
X 1 | 500mm+150mm +150mm+150mm |
80 PLUS Bronze-Certified and Intel C6/C7 States Ready
Smart BX3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
