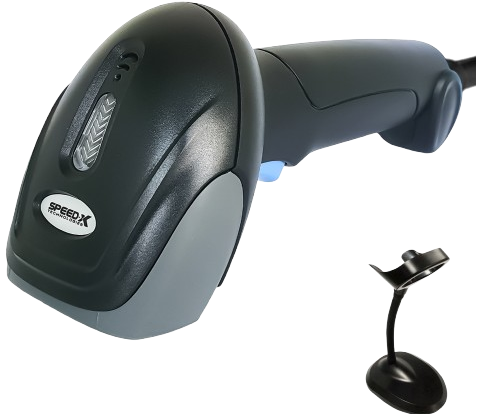

Speed-x 8600 2d Wire Cmos Handheld Barcode Scanner With Stand
SKU
K70056
Category: Barcode Scanners
| Technical Specifications | |
| Electrical Characteristics | |
| Interface Supported | USB HID KEYBOARD/USB COM |
| Input Voltage | DC 5V±10% |
| Current |
Max::170mA Dormant current：48mA |
| Optical Characteristics | |
| Image Sensor | CMOS Array Sensor |
| Sensor Resolution | 640x480 Pixels |
| Light Source | White LED |
| Aim Light Source | Red Bar LED |
| Performance Characteristics | |
| Scanning Angle | Pitch angle:±60°;Skew angle:±40°;Tilt angle:±180° |
| Field of View | 66°(H),50°(V) |
| Min Resolution |
1D：0.127mm/5mil（PCS 0.9）
2D：0.202mm/8mil（PCS 0.9） |
| Min .PCS value | 〉20%UPC/EAN 13（5mil） |
| Language | Multiple Languages |
| Data Edition | Support for custom data output |
| Decode Capability |
1D : Code128（ISBT 128、AIM 128、GS1 128)、EAN-13、EAN-8、UPCE0、 UPCE1、UPC-A、ISBN、ISSN、Code11、Interleaved 2 of 5、Code39、 Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、 MSI Plessey
|
| 2D: QR Code，Data Matrix，PDF417，Micro QR | |||||
| Physical Characteristics | |||||
| Dimensions | 90mm*62mm*160mm(L*W*H) | ||||
| Weight | 125g(not included cable) | ||||
| Indicator | Beeper, LED | ||||
| Environmental Characteristics | |||||
| Temperature | -20°- 65°C (operation) ， -30°- 70°C (storage) | ||||
| Humidity | 5 - 90% (operation) ；5 - 90% (storage)5 | ||||
| Ambient Light: | Up to 80,000 lx | ||||
| Shock Drop Test | 1.5m drop onto concrete surface | ||||
| Decoding Depth of Field | |||||
| Symbology | Resolution |
Barcode number |
Barcode width | Nearest | Farthest |
| Code 128 | 5mil | 20 | 4.3x1.5cm | 4cm | 8cm |
| Code 128 | 15mil | 7 | 4.3x1.5cm | 7cm | 32cm |
| Code 39 | 6.67mil | 16 | 4.4x1.5cm | 8.5cm | 11cm |
| Code 39 | 20mil | 4 | 4.3x1.5cm | 7cm | 37cm |
| EAN-13 | 13..34mil | 13 | 4.2x1.5cm | 6cm | 22cm |
| QR code | 20mil | 120 | 2x2cm | 4.5cm | 22cm |
| Data Matrix | 6.67mil | 60 | 0.5x0.5cm | 3cm | 11cm |
| Screen QR Code | 18 | 2.1x2.1cm | 3cm | 41cm | |
| Screen QR Code | 18 | 3.7x3.7cm | 10cm | 78cm |
| Brand | Speed-X |
|---|---|
| Warranty | 7 Day Replacement |
| Shipping | Same Day From Lahore |
| Color | Black |
