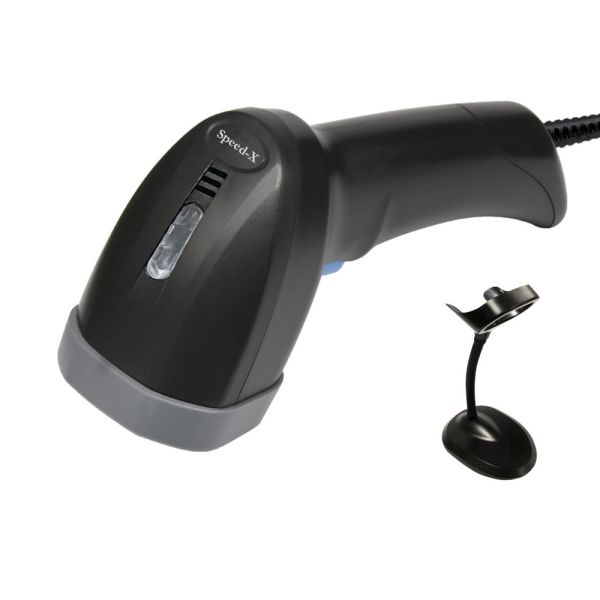

CMI-8010

2D Wire CMOS Handheld Barcode Scanner





Technical Parameters

Electrical Characteristics

Interface USB HID KEYBOARD/USB VCP

Voltage requirement 5VDC±10%

Current consumption Max:120mA

Optical Characteristics

Photo sensor CMOS array sensor

SENSOR RESOLUTION 648X488 pixels

Light source White LED*1

Aim light source Red Bar led

Performance Characteristics

Decode angle Pitch angle:±55°

Skew angle:±55°

Tilt angle:±180°

Min resolution 1D:4mil(0.127)

Min.PCS value 〉30%UPC/EAN 13（13mil）

Language multiple languages

Field of View 20°(H),21°(V)

Identification 1D：UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI

2D：QR, PDF417，Data Matrix

Physical Characteristics

Dimensions 67 mm H x97 mm W x165 mm D

Weight 122.8g

Environmental Characteristics

Temp -20°to 60°C / -4°to 140°F((operation) )                                          -40°-to 80°C /-40°to 176°F(storage)

Humidity 5 - 95% (operation) ) 5 - 95% (storage)

Shock drop test 1.5m drop onto concrete surface

Ambient Light: fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Regulatory

Electrical Safety UL 60950，EN/IEC 60950

EMI/RFI FCC Part 15 Class B,EN 55024/CISPR 22

Environmental RoHS



Depth of field

Symbology     Resolution(mm)         Depth of field

Code39                             5.0 mil                                 40mm--90mm

100% UPCA    15.0mil                                 40mm—250mm

Code 39                            15.0mil                                 40mm--250mm

Code 93                            10.0mil                                 40mm--210mm
