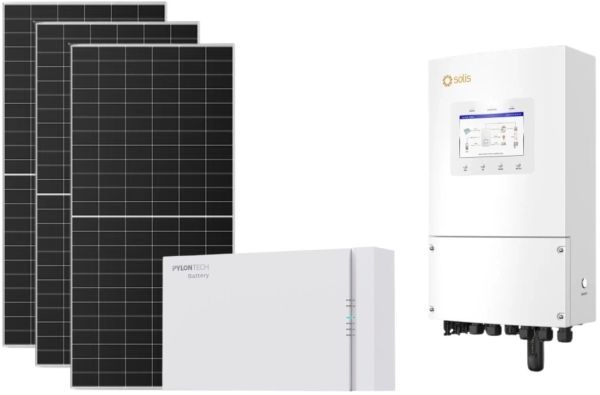

Solar System 10KW with Battery Backup

Solar System Installation 10KV

Longi Hi MO X10 645W Bifacial Panel


The LONGi Hi MO X10 645W Bifacial Panel features high-efficiency N-Type TOPCon cell technology.

OR


Aiko 650W Bifacial Panel


The Aiko 650W Bifacial Solar Panel is a next-generation high-efficiency module featuring advanced N-Type ABC cell technology and enhanced bifacial performance.

10 Kilo Watts


SOLIS L PLUS / GoodWe 10kw LCD Hybrid IP66


The SOLIS L PLUS / GoodWe ES Uniq 10kW LCD Hybrid Inverter is a smart, compact, and high-efficient inverter designed for hybrid solar systems. With 6kW output, 48V battery support, and real-time LCD monitoring, it provides seamless integration of solar, grid, and battery power—ideal for homes and small businesses across Pakistan.

SOLAR STRUCTURE

L2 Structure, Solar Standard (SS Bold), with fitting panels, installation & alignment.



Battery (Choose One):

• PylonTech FIDUS 5.12kWh Lithium Battery IP65 (10-Year Warranty)

OR

• Dyness DL5.0C Pro 5kWh LV Battery IP20 (10-Year Warranty)


DC Wire

GM Cables

Core cables, PVC insulated (non-armored) electric power and lighting cables. PVC insulated non-sheathed cables ranging from 1.5 sq.mm to 630 sq.mm, rated 450/750V. Single core cables with additional PVC oversheath up to and including 35 sq.mm conductor size, rated 600/1000V.


AC Wire

Standard AC wire for inverter & DB Box connections.


Electrical Installation

Cable conduits, cable ties, PVC bends, ducts, flexible pipes, MC4 connectors, etc.



Earthing

Earthing bores, grounding wire with 2.5 standard copper wires. (Double bore with material)



Transportation

Transportation of equipment from warehouse to site.

Wireless Monitoring

Remote monitoring for inverter & string performance via 4G dongle device.



LV Panel

2-Pole AC Breaker, SPD, 2-Pole DC Breaker, etc. Material: CHINT / TOMZN
