Sennheiser ew 112-p G3 Lavalier Clip-On Microphone Wireless Set

Ew
112-p G3

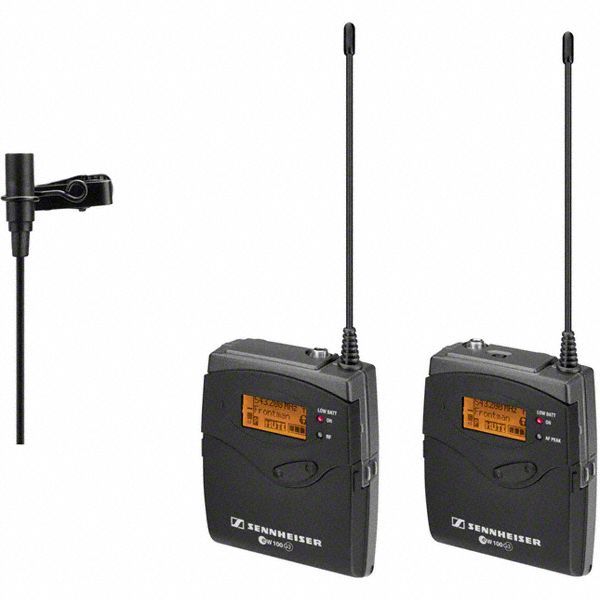

Robust, user-friendly, and comprehensively equipped reporting set: EK
100 G3 adaptive diversity receiver, SK 100 G3 bodypack transmitter with Mute
function, ME 2 cardioid clip-on microphone.

Overview



Fast, flexible and professional: these characteristics make the ew 112-p G3 the
perfect fit for every ambitious reporting team seeking both portability and
great sound quality. The nearly invisible clip-on, ME2, omni-directional
microphone transmits its signal via bodypack transmitter with mute function and
a portable, battery-powered adaptive-diversity receiver. The receiver and
transmitter are lightweight and easy to operate, yet rugged and packed with
features.



Features

•
  Sturdy metal housing (transmitter and receiver)


•
  42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free
  reception


•
  Enhanced frequency bank system with up to 12 compatible frequencies


•
  High-quality true diversity reception


•
  Pilot tone squelch for eliminating RF interference when transmitter is
  turned off


•
  Automatic frequency scan feature searches for available frequencies


•
  Enhanced AF frequency range


•
  Increased range for audio sensitivity


•
  Wireless synchronization of transmitters via infrared interface


•
  User-friendly menu operation with more control options


•
  Illuminated graphic display (transmitter and receiver)


•
  Auto-Lock function avoids accidental changing of settings


•
  HDX compander for crystal-clear sound


•
  Transmitter feature battery indicatation in 4 steps, also shown on receiver
  display


•
  Programmable Mute function


•
  Integrated Equalizer and Soundcheck mode


•
  Contacts for recharging BA 2015 accupack directly in the transmitter


•
  Wide range of accessories adapts the system to any requirement

Technical Specs

RF frequency range

516...558 MHz



Frequency range

626...668 MHz

734...776 MHz

780...822 MHz / Germany

823...865 MHz / Germany

566...608 MHz

606...648 MHz

516...558 MHz

626...668 MHz

734...776 MHz

780...822 MHz

823...865 MHz

566...608 MHz

925...937.5 MHz

Frequency response (Microphone)

80 - 18000 Hz



Compander

HDX

Audio-XLR connector

3,5 mm Jack



Presets

12



Microphone

electret



Sound pressure level (SPL)

130 dB(SPL) max.



THD, total harmonic distortion

< 0,9 %



AF sensitivity

20 mV/Pa



Signal-to-noise ratio

> 110 dB(A)



RF output power

30 mW



Transmission/receiving frequencies

1680



Switching bandwidth

42 MHz



Peak deviation

+/- 48 kHz



In compliance with

ETS 300422, ETS 300445, CE, FCC



Operating time

typ. 8h



Input voltage range

1,8 V ligne



Audio output level

balanced: +10 dBu max



Transmitter



Dimensions

82 x 64 x 24 mm



Weight

~ 160 g



Receivers



Dimensions

82 x 64 x 24 mm



Weight

~ 160 g
