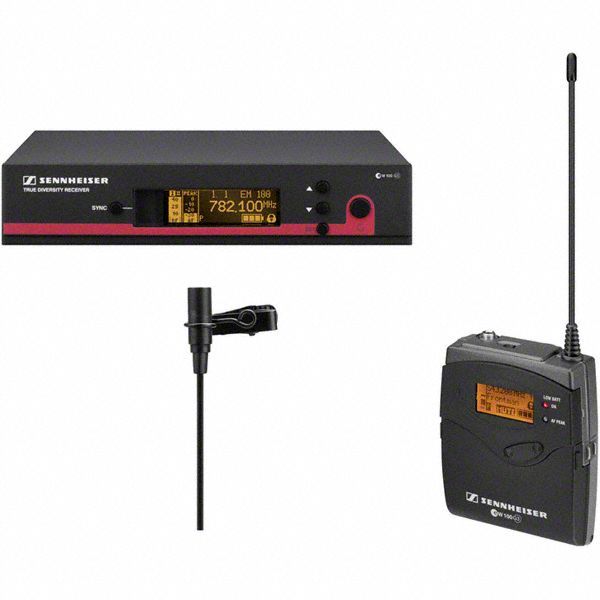

Sennheiser ew 112 G3 Lavalier Microphone Clip-On-Set

Overview
Make your presentations come to life. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation - not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.

Features

• Sturdy metal housing (transmitter and receiver)


• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception


• Enhanced frequency bank system with up to 12 compatible frequencies


• High-quality true diversity reception


• Pilot tone squelch for eliminating RF interference when transmitter is turned off


• Automatic frequency scan feature searches for available frequencies


• Enhanced AF frequency range


• Increased range for audio sensitivity


• Wireless synchronization of transmitters via infrared interface


• User-friendly menu operation with more control options


• Illuminated graphic display (transmitter and receiver)


• Auto-Lock function avoids accidental changing of settings


• HDX compander for crystal-clear sound


• Transmitter feature battery indicatation in 4 steps, also shown on receiver display


• Programmable Mute function


• Integrated Equalizer and Soundcheck mode


• Contacts for recharging BA 2015 accupack directly in the transmitter


• Wide range of accessories adapts the system to any requirement

Technical Specs

Frequency range
606...648 MHz
925...937.5 MHz / Korea
823...865 MHz / Power supply unit UK
823...865 MHz / Power supply unit EU/Germany
823...865 MHz / Power supply unit EU
780...822 MHz / Power supply unit UK
780...822 MHz / Power supply unit EU/Germany
780...822 MHz / Power supply unit EU
734...776 MHz / Power supply unit UK
734...776 MHz / Power supply unit US
734...776 MHz / Power supply unit EU
626...668 MHz / Power supply unit UK
626...668 MHz / Power supply unit US
626...668 MHz / Power supply unit EU
566...608 MHz / Power supply unit UK
566...608 MHz / Power supply unit US
566...608 MHz / Power supply unit EU
516...558 MHz / Power supply unit UK
516...558 MHz / Power supply unit US
516...558 MHz / Power supply unit EU

Compander
HDX

Presets
12

Frequency response
25 - 18.000 Hz

THD, total harmonic distortion
< 0,9 %

Signal-to-noise ratio
> 110 dB(A)

RF frequency range
516...865 MHz

Transmission/receiving frequencies
1680

Switching bandwidth
42 MHz

Receivers True Diversity

Dimensions
212 x 202 x 43 mm

Weight
~ 900 g

Antenna connector
2 BNC, 50 Ω

Audio output level
unbalanced: Jack : +12 dBu max

Audio output level
balanced: XLR : +18 dBu max

Transmitter

Dimensions
82 x 64 x 24 mm

Weight
~ 160 g

RF output power
30 mW

Operating time
typ. 8 h

Power supply
2 x 1,5 V (AA)

Input voltage range
1,8 V line

Clip-on microphone

Microphone
permanent polarized 130 dB(SPL) max.

Sound pressure level (SPL)
130 dB(SPL) max.

AF sensitivity
20 mV/Pa
