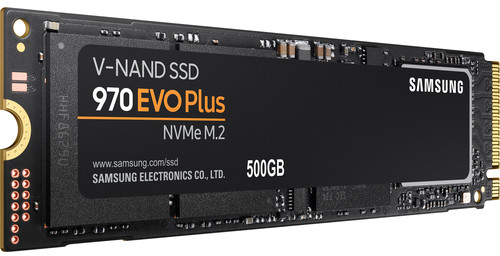

Samsung 500GB 970 EVO Plus NVMe M.2 Internal SSD

SKU
N40564
Samsung
Rs 18,499.00
In stock



500GB Storage Capacity
PCIe Interface
M.2 2280 Form Factor
Up to 3500 MB/s Sequential Read Speed





At a Glance



Featuring our latest V-NAND technology and a newly enhanced Phoenix controller, Samsung 970 EVO Plus Series NVMe M.2 SSDs deliver outstanding performance in Non-Volatile Memory Express (NVMe), with exceptionally fast sequential speeds outperforming our standard 970 EVO models. Plus, Samsung's Magician software solution provides advanced functionality for you to manage, monitor and maintain your drive.


NVMe speeds up sequential read/write performance, while Samsung TurboWrite technology accelerates write speeds even further


Compact M.2 form factor ready for high-end computing


Samsung Magician software for SSD management, including automatic firmware updates


Ideal for high-performance client PC applications (not designed for server or data center applications and warranty does not support such usage)¹










Features










Non-Volatile Memory Express



Non-Volatile Memory Express (NVMe)




970 EVO Plus 500GB NVMe SSDs with a newly enhanced Phoenix controller outperform our standard 970 EVO 500GB model with exceptionally fast sequential read/write speeds up to 3,500/3,300 MB/s. They also support PCI Express® (PCIe) Gen 3 x 4 lanes to provide high bandwidth and low latency, making them perfect for business professionals who need cutting edge-performance for high-end computing.






ssd read write speed



TurboWrite Technology




Samsung’s intelligent TurboWrite technology helps to maximize your computing ability, accelerating write speeds above and beyond the already exceptionally fast speeds of NVMe.






ssd temperature management



Dynamic Thermal Guard




This feature constantly monitors and works to maintain ideal temperatures to protect the integrity of your data and safeguard from overheating. When temperatures rise above an optimal threshold, the Dynamic Thermal Guard automatically throttles them down to protect data while maintaining responsiveness.




















ssd warranty



5-Year Limited Warranty




Secure your investment with a 5-year limited warranty up to 300 TBW. The 970 EVO Series also minimizes performance degradation over time, in order to provide sustained performance for high-end business use.






ssd software



Professional-Quality Drive Management




With the Samsung Magician software solution, you get advanced functionality to manage, monitor and maintain your 970 EVO Plus SSDs. Magician provides personalized firmware checking and additional functions tailored for individual drives. It even updates the firmware automatically to make sure that the drive's performance stays up to date.






samsung v nand



V-NAND Technology




Samsung's proprietary V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 64 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.
















ssd security



SSD Data Security




This Drive includes an AES-256-bit hardware based, full disk encryption engine that secures your data without sacrificing performance and is compliant with TCG/OPAL V2.0 and IEEE1667.






ssd power management



Highly-Efficient Power Management




Thanks to exceptionally low active power consumption, you can work efficiently for long periods of time. Device Sleep Mode is also supported for ultra-thin laptop PCs and high-end desktop main boards.






ssd components



Samsung SSD Components




Samsung's solid state drives are built entirely from Samsung components, leveraging our extensive OEM expertise to allow complete, optimized integration.

















Specifications







M.2 (2280)

NAND Flash



V-NAND





Sequential Read Speed

3,500MB/s Seq. Read







Sequential Write Speed

3,200MB/s Seq. Write






Type



Product Type

SSD



Series

970 EVO Plus



Usage Application

Client PCs



Interface

PCIe Gen 3.0 x 4, NVMe 1.3





Application



Consumer

Yes





Storage



Capacity

500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)





Key Features



Sequential Read Speed

Up to 3,500 MB/s * Performance may vary based on system hardware & configuration



Sequential Write Speed

Up to 3,200 MB/s * Performance may vary based on system hardware & configuration



Random Read Speed

Random Read (4KB, QD32): Up to 480,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration



Random Write Speed

Random Write (4KB, QD32): Up to 550,000 IOPS; Random Write (4KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration





Controller

Samsung Phoenix Controller



NAND Flash

Samsung V-NAND 3-bit MLC



Cache Memory

Samsung 512MB Low Power DDR4 SDRAM



Trim Support

Supported





AES Encryption

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)



S.M.A.R.T. Support

Supported



GC (Garbage Collection)

Auto Garbage Collection Algorithm



WWN Support

Not supported





Device Sleep Mode Support

Yes



Temperature proof

Yes



NVMe

Yes



Gaming SSDs

Yes





General



Average Power Consumption (system level)

* Average: 5.8 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration



Power consumption (Idle)

Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration



Voltage

3.3 V ± 5 % Allowable voltage



Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)





Environmental Specs



Operating Temperature

0 - 70 ℃ Operating Temperature



Shock

1,500 G & 0.5 ms (Half sine)





Form Factor



Product

M.2 (2280)





Dimensions (W x H x D)



Product

80.15 x 22.15 x 2.38 (mm)





Weight



Product

Max 8.0 g Weight





Software



Management SW

Magician Software for SSD management





Warranty



Product

5-Year Limited Warranty or: 300 TBW Limited Warranty






BrandSamsung
Hard Disk Capacity500GB
WarrantyCheck at Delivery
ShippingSame Day From Lahore
