Plustek SmartOffice PS456U Scanner
Ultrasonic misfeed detection ensures all of your critical documents are imaged correctly.

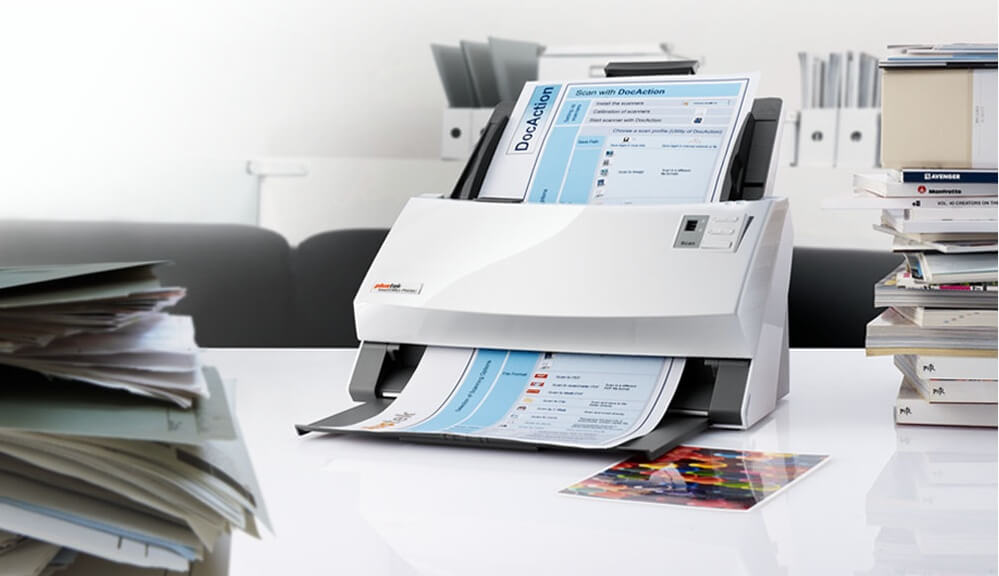

Robust paper handling, advanced image processing and a high daily duty cycle all add up to the perfect departmental scanning solution for document management, content management and forms processing applications.
Cost EffectiveReliableFast

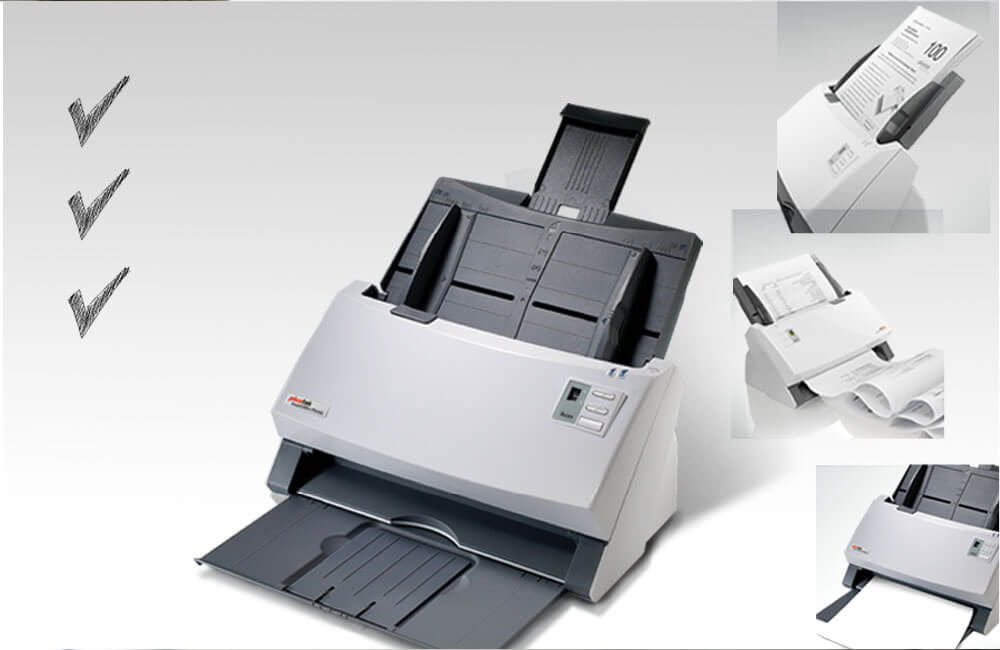

Exceptional Document Handling
This system allows the SmartOffice PS456U to scan mixed batches of varying paper sizes and weights. Nomore wasted time sorting documents based on their size or thickness.
Plastic and rigid cards such as ID cards, Drivers Licenses, Membership Cards, Insurance Cards .
Card | Business Card | Cheque | Receipt

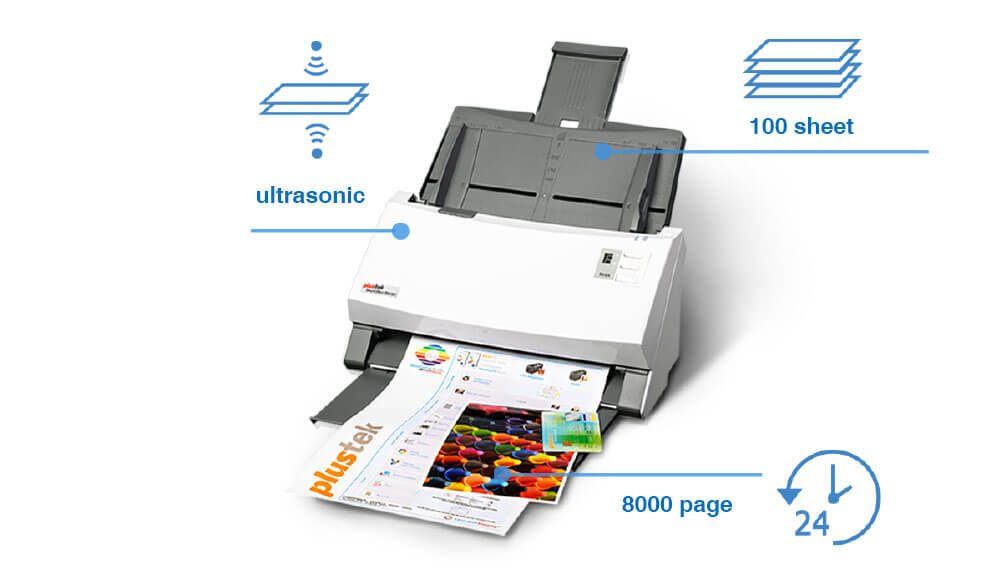

The ultrasonic sensor detects the double feeding of original documents during scanning. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.

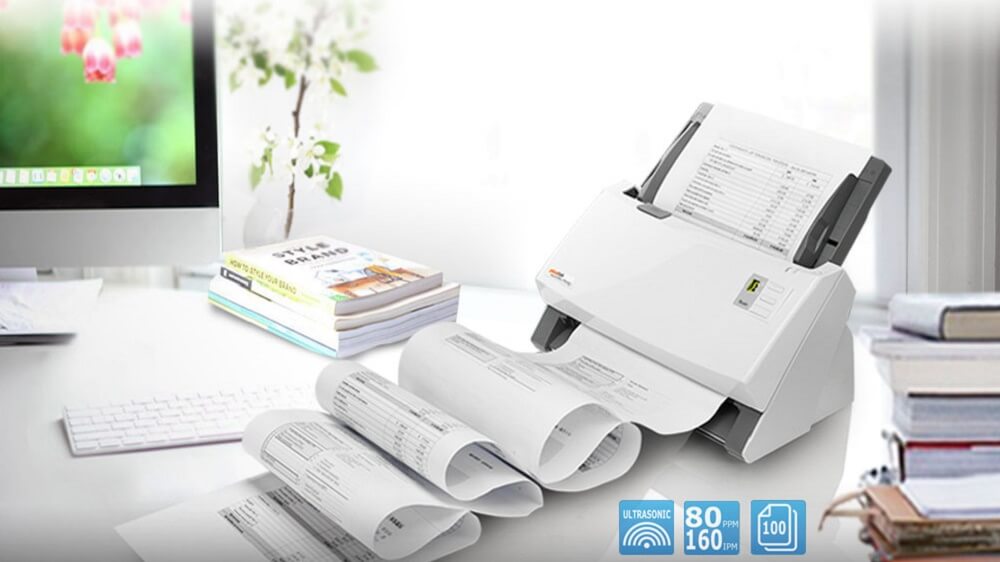

The 100 sheets feed tray along with a daily duty cycle of 8000 pages means that the SmartOffice PS456U is a scanner that is designed to scan documents every day,all day long.

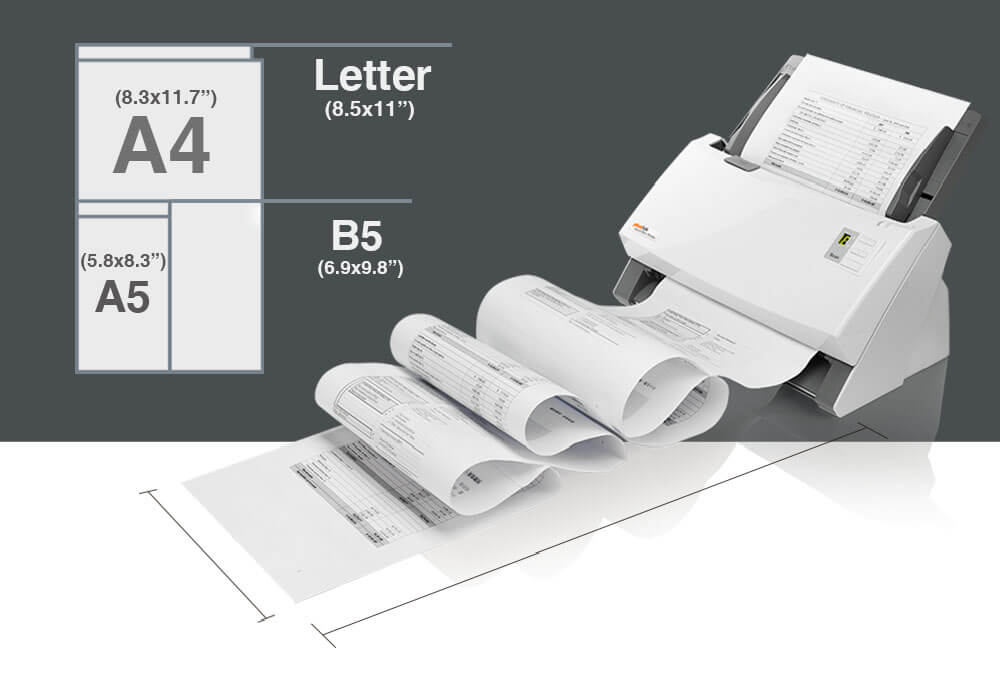

Width From 2" to 9.6"Length From 2" to 200"
Single Touch scanning allows you to define 9 different scanning functions that can all be accessed by simply pressing a button.
In addition to Searchable PDF, you can transform your paper documents into editable Microsoft Office document formats. Industry standard TWAIN, ISIS and WIA drivers ensure compatibility with thousands of image enabled applications.
The SmartOffice PS456U is environmentally responsible and easy to use at the same time thanks to its ENERY STAR certification, low power LED illumination technology and power-saving function.

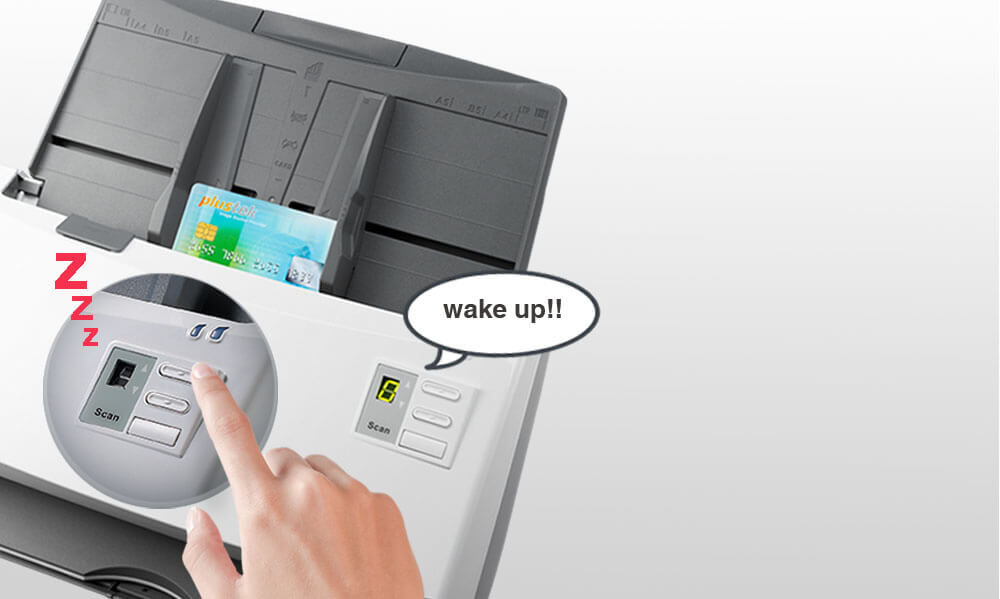

The SmartOffice PS456U also features auto wake up that enables users to simply place the paper in the scanner and wake up the scanner from sleep / stand-by mode.

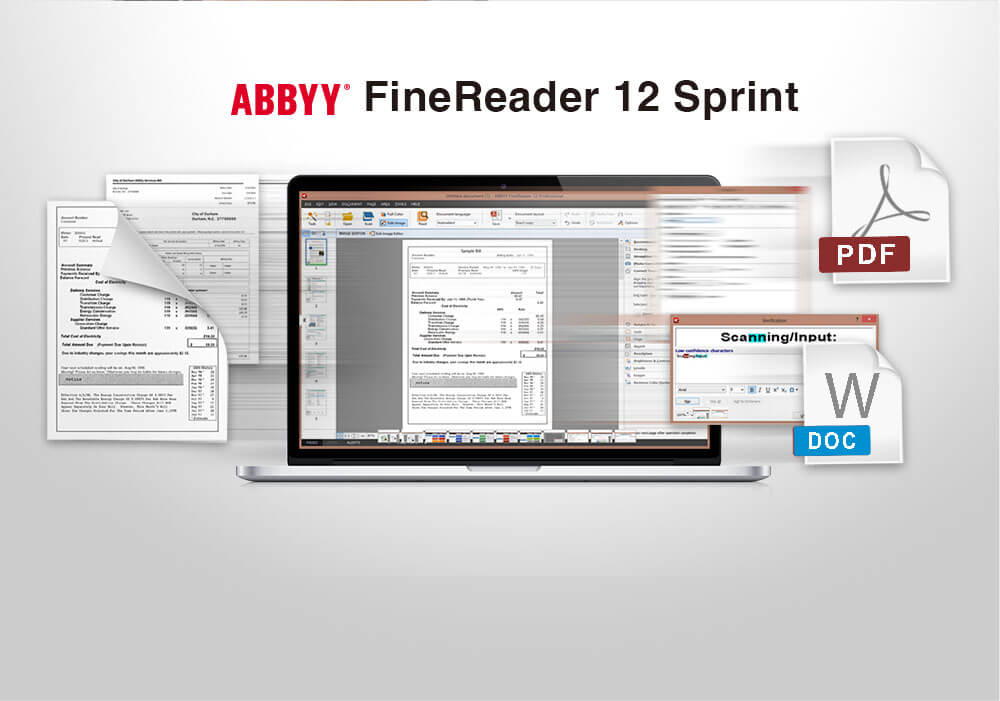

Industry standard TWAIN and WIA drivers combined with TIF, JPG, PDF and Microsoft Office file formats ensure compatibility with thousands of scanning and imaging programs. ABBYY FineReader Sprint is included to easily create and manage searchable PDFs at the touch of a button.
Image Processing Features
Auto Threshold
Auto Rotate
Auto Crop & Deskew
Auto Mode

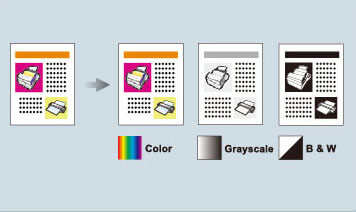

Multi-Image Outputnta Fe Springs, California 90670
Specifications
| Image Sensor | CCD Sensor x 2 |
|---|---|
| Light Source | LED |
| Optical Resolution | 600 dpi |
| Hardware Resolution | 600 x 600 dpi |
| Scan Modes | Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit |
| ADF Capacity | 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 2. 30 sheets (Business Cards) 3. Plastic Card, Max. thickness under 1.2 mm. Note: Maximum ADF capacity varies, depending upon paper weight. |
| Scanning Speed ( ADF ) | 80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait) 45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait) 30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait) Note: Results may vary depending upon your scanning application, computer processor and system memory. |
| Scanning Area (W x L) | Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”) |
| Acceptable Paper Sizes (W x L) | Max: 244 x 5080 mm (9.6” x 200”) Min: 50.8 x 50.8 mm (2” x 2”) |
| Acceptable Paper Weight (Thickness) | 40 to 220 g/㎡ (10 to 58 Lbs) |
| Multi-feed Detection | With ultrasonic technology |
| Daily Duty Scan ( Sheets ) | 8,000 |
| Roller Lifetime (Scans) | 300,000 |
| Pad Lifetime (Scans) | 50,000 |
| Action Button | 4 Buttons: Up, Down, Scan, Standby 9 function keys are all customizable. |
| Power Supply | 24 Vdc/ 1.25 A |
| Interface | USB 2.0 |
| Net Weight | 2.7 Kgs (5.95 Lbs) |
| Dimensions (W x D x H) | 318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99") |
| Protocol | ISIS & TWAIN Compliant |
| OS | Windows XP / Vista / 7 / 8 / 10 |
| Hardware Requirements | PentiumR IV 2.4 GHz processor DVD-ROM Driver One available USB 2.0 Port 1GB RAM (2GB or higher recommended) 2GB free HDD space (3GB or larger recommended) |
| Brand | Plustek |
|---|---|
| Warranty | 1 Year Manufacturer |
| A3 | No |
| Scane Type | Sheetfed |
| Shipping | 24 - 48 hrs |
| Scan Speed Black | Up to 100 ppm |
| Scan Speed Color | 41 - 50 ppm |
| DPi | 600 |
