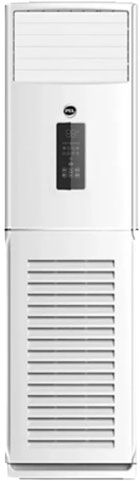

Pel PFSAC-48K Bold Floor Standing Heat & Coo Air Conditioner
SKU
U57945
Category: PEL
| Brand | PEL | ||||
| Supplier Model Name | CF-140A6A-E**AF2A (Panel # 41) | ||||
| PEL Model Name | 48K BOLD | ||||
| Category | On/Off – Fixed Speed Floor Standing/ Cabinet Air Conditioner | ||||
| Function | Heat & Cool | ||||
| Capacity | 48K Bold | ||||
| Climatic Type | T1 | ||||
| Additional Feature | |||||
| Picture | |||||
| Rated Capacity | Cooling | W |
|
||
| Heating | W | 15000+2500 | |||
| Rated Power Consumption | Cooling | W | 4650 | ||
| Heating | W | 5000+2500 | |||
| Rated Running Current | Cooling | W | 8 | ||
| Heating | W | 8.5+11.4 | |||
| Max. Input Power | W | 9500 | |||
| Max. Input Current | A | 26 | |||
| EER Cooling | W/W | 3.01 | |||
| COP Heating | W/W | 3 | |||
| SEER | |||||
| Power Supply Source | V/Ph/Hz | 380V/50Hz/3PH | |||
| Refrigerant | R22 | ||||
| Refrigerant Charged | g | 2800 | |||
| Max. Discharge Pressure | MPa | 4 | |||
| Max. Suction Pressure | MPa | 1.2 | |||
| Air Flow Volume | m3/h | 1900 | |||
| Indoor Noise Level | dB | 57 | |||
| Outdoor Noise Level | dB | 67 | |||
| Indoor Unit Weight (Net Weight/ Gross Weight) | Kg | 59/75 | |||
| Outdoor Unit Weight (Net Weight/ Gross Weight) | Kg | 95/108 | |||
| Evaporator | Multi-Bend | Nos. | |||
| Rows | Nos. | 2 | |||
| Tube Pitch x Row Pitch | mm | 25*22 | |||
| Inlet & Outlet Distributor | |||||
| Tube | Material | ||||
| Length | mm | 480 | |||
| Diameter ? Thickness | mm | ?9.52/Internal thread tube | |||
| Quantity | Nos. | 36 | |||
| Fin | Material | ||||
| Fin Type | open window fin | ||||
| Thickness | mm | ||||
| Fin Spacing | mm | 1.42 | |||
| Fins Per Inch | Nos. | ||||
| Length x Height x Width | mm | 480*900*44 | |||
| Fan System | Fan | Type | |||
| Material | |||||
| Diameter ? Length | mm | ?380?180 | |||
| Fan Motor | Model | YDK?100-10B 1 | |||
| Type | AC/DC | ||||
| Insulation Grade | |||||
| Capacitor | ?F | 6?F/500V | |||
| Rated Current | A | ||||
| Rated Input Power | W | 277 | |||
| Rated Output Power | W | ||||
| Motor Speed (H/M/L) | rpm | High 480?20rpm Med 400?25rpm Low 300?30rpm |
|||
| Air Circulation | m3/h | 1900 | |||
| Dimensions | Unit Dimension (WxDxH) |
mm | 600?313?1868 | ||
| Packing Dimension (WxDxH) |
mm | 2085?750?520 | |||
| Condensate Drainage Pipe (O.D? L) | mm | ||||
| Connecting pipe | Material | ||||
| Length | m | ||||
| Liquid tube Diameter ? Thickness | mm | ?9.52 | |||
| Gas? tube Diameter ? Thickness | mm | ?19.05 | |||
| Stop Valve | Liquid Valve | ||||
| Gas Valve | |||||
| Connecting wires | Quantity | Nos. | |||
| Length ? Specs | m | ||||
| Compressor Parameter | Model | ATE590SC3Q9JK | |||
| Drive Mode | AC/DC | ||||
| Type | Rotary | ||||
| Brand | HIGHLY | ||||
| Capacity | W | 14850 | |||
| Input | W | 4950 | |||
| Rated Current (RLA) | A | 8.7 | |||
| Locked Rotor Amp (LRA) | A | 65 | |||
| Thermal protector | Internal | ||||
| Capacitor | uF | – | |||
| Refrigerant oil | ml | 68HES-H/1600ml | |||
| Fan System | Fan | Type | |||
| Material | |||||
| Vane Number | |||||
| Diameter ? Length | mm | ?496?143 | |||
| Fan Motor | Model | YDK-60-6B 9 | |||
| Quantity | Nos. | ||||
| Type | AC/DC | ||||
| Insulation Grade | |||||
| Capacitor | ?F | 4 | |||
| Rated Current | A | ||||
| Rated Input Power | W | 135 | |||
| Rated Output Power | W | ||||
| Motor Speed (H/M/L) | rpm | 900?20 | |||
| Air Circulation | m3/h | ||||
| Condenser | Rows | Nos. | 2 | ||
| Tube Pitch x Row Pitch | mm | 21*18.19 | |||
| Inlet & Outlet Distributor | |||||
| Bended or Flat | |||||
| Tube | Material | ||||
| Length | mm | 900 | |||
| Diameter ? Thickness | mm | ?7?0.25+0.18/Internal thread tube | |||
| Quantity | Nos. | 56 | |||
| Fin | Material | ||||
| Fin Type | open window fin(arc-shaped) | ||||
| Thickness | mm | ||||
| Fin Spacing | mm | 1.6 | |||
| Fins Per Inch | Nos. | ||||
| Throttling Gear | |||||
| Length x Height x Width | mm | 900*1200*18.19 894*1200*18.19 |
|||
| Capillary | Material | ||||
| Capillary Specification for Cooling | mm | ||||
| Dimensions | Unit Dimension (WxDxH) |
mm | 970?345?1237 | ||
| Packing Dimension (WxDxH) |
mm | 1125?485?1385 | |||
| Brand | Pel |
|---|---|
| Wi-Fi | No |
| Warranty | 1 Year Parts + 3 Years Compressor |
| Ton | 4.0 Ton |
| Heat & Cool | Yes |
| Inverter | Yes |
| Shipping | Same Day From Lahore |
