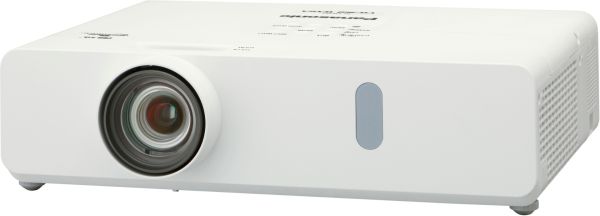

Panasonic PT-VW360 LCD Projector

4,000 lumens

LCD

15.0 mm (16:10 aspect ratio)

0.59 inch (16:10 aspect ratio)

Transparent LCD panel (x 3, R/G/B)

1,024,000 (1280 x 800) pixels

Manual zoom (1.6x) (throw ratio: 1.18 - 1.90:1), manual focus, F 1.60 - 1.90, f 15.31 - 26.24 mm

0.76 - 7.62 m, 16:10 aspect ratio

30 - 300 inch, 16:10 aspect ratio

1280 x 800 pixels

(Input signals that exceed this resolution will be converted to 1280 x 800 pixels)

4,000 lm (input signals: PC, lamp power: NORMAL, picture mode:

Dynamic, Iris: Off, Daylight View: Off, Auto Power Save: Off )

240 W x 1 lamp

NORMAL: 5,000 hours / ECO: 7,000 hours

85 %

20,000:1 (Full On/Off) (input signals: PC, lamp power: NORMAL, picture mode: Dynamic, Iris: On, Daylight View: Off, Auto Power Save: Off )

49:1 (fixed)

Vertical: ±35° (±30° when using AUTO) (maximum value of WXGA input)

Horizontal: ±35° (maximum value of WXGA input)

Ceiling/floor, front/rear

HDMI 19-pin x 2 (compatible with HDCP, Deep Color), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

D-sub HD 15-pin (female) x 1 (RGB), (input/output selectable using on-screen menu)

Pin jack x 1 (Composite VIDEO)

M3 x 1 (L-R x 1)

M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)

Pin jack x 2 (L, R x 1)

M3 x 1 (L-R x 1) for output (variable)

RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)

D-sub 9-pin (female) x 1 for external control (RS-232C compliant)

Memory Viewer / Wireless Module (DC 5 V, max 500 mA)

For USB Display

AC 100 - 240 V, 50 Hz/60 Hz

100 - 240 V: 320 W (0.5 W when Standby mode set to ECO*2, 1.6 W when Standby mode set to Network, 9.5 W when Standby mode set to NORMAL)

4.0 cm (1 9/16 inch) round shape x 1, output power: 10.0 W (monaural)

37 dB (lamp power: NORMAL), 29 dB (lamp power: ECO)

Molded plastic

352 x 98*3 x 279.4*4 mm

13 27/32 inch x 3 27/32 inch*3 x 11 inch*4

Approx. 3.3 kg

7.3 lbs

Operating temperature: 0 - 40 °C (less than 1,400m above sea level, High Altitude Mode: OFF); 0 - 30 °C (1,400m to 2,000m,

High Altitude Mode: 1); 0 - 30 °C (2,000m to 2,400 m, High Altitude Mode: 2)

Operating temperature: 32 - 104 °F (less than 4,593 ft above sea level, High Altitude Mode: OFF); 32 - 86 °F (4,593 ft to 6,562 ft,

High Altitude Mode: 1); 32 - 86 °F (6,562 ft to 7,874 ft, High Altitude Mode: 2)

Operating humidity: 20 - 80 % (no condensation)

*1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*2 When the Standby mode is set to ECO, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for

external control using the serial terminal.

*3 With legs retracted to minimum.

*4 Including protruding parts.

*5 Average value. May differ depending on the actual unit.
