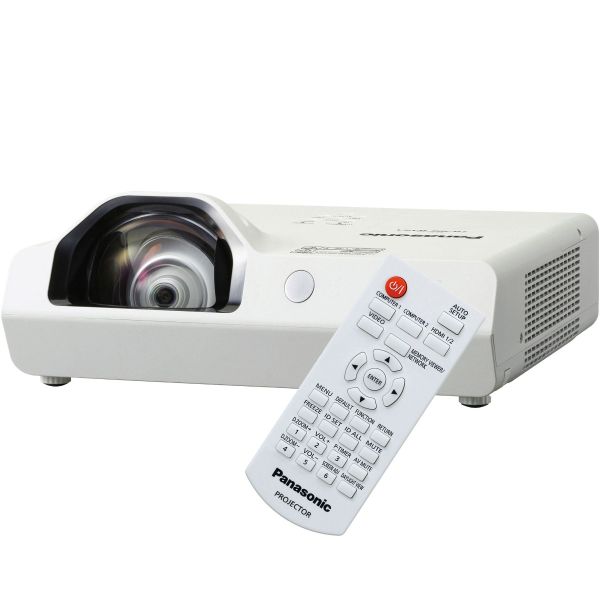

Panasonic PT-TW380 LCD Projector

PT-TW381R	PT-TW380	PT-TX440	PT-TX350
3,300 lm*1		3,800 lm*1	3,200 lm*1
WXGA		XGA

* Requires optional ET-WML100 (stock limited)/AJ-WM50 series wireless modules. ET-WML100 Series and AJ-WM50 Series devices are both compatible with all projectors in this series, and either can be used to enable the wireless network function.

* PT-TW381R only



Key Feature

Beautiful Pictures, No Shadows

Developing high-contrast brilliance from a compact body, the PT-TW381R Series serves interactive*2 images in well-lit rooms from as little as 80 cm*3 or less away from an 80-inch screen image, avoiding presenter shadowing.

Low-Maintenance Reliability and Low TCO

High reliability and low TCO come with a new long-life lamp engineered for 20,000 hours*4 of operation. The air filter lasts as long as 10,000 hours*5, setting your team up for dependable everyday projection.

Simple, Flexible, and Very Well Connected

Connect two laptops via dual HDMI® to seamlessly switch HD content*6; use our optional wireless USB module*7 to mirror device screens; or cast to a media streaming device*8 powered via USB DC to reduce cable clutter.

*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

*2 PT-TW381R only.

*3 80 cm for the PT-TW381R/TW380 and 75 cm for the PT-TX440/TX350 when projecting an 80-inch image.

*4 Lamp life is approximately 20,000 hours in Eco Mode and approximately 10,000 hours in Normal/Quiet Mode. Replacement timing varies depending on operating environment and usage conditions.

*5 Filter life is approximately 10,000 hours in Quiet Mode, approximately 6,000 hours in Eco Mode, and approximately 5,000 hours in Normal Mode. Replacement timing varies depending on operating environment and usage conditions.

*6 Content exceeding the projector’s panel resolution is converted upon projection.

*7 ET-WML100 (stock limited)/AJ-WM50 series wireless modules are subject to regional availability. ET-WML100 Series and AJ-WM50 Series devices are both compatible with all projectors in this series, and either can be used to enable the wireless network function. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).

*8 Panasonic cannot guarantee compatibility with third-party media streaming devices.

Beautiful Pictures, No Shadows

Write and Draw on Projected Images (PT-TW381R Only)

Communicate effectively by making notations on stills, graphics, and documents, adding new information as your meeting or lesson progresses using the supplied Interactive Light Pen or optional Interactive Pointer. Companion LightPen3 Software*1 for Windows® or Mac improves writing smoothness for up to two presenters at once*2 with support for high frame-rates. You can save modified images to PC for later distribution.

・Automatic Calibration

Auto calibration gets you started faster. If preferred, you can also set up manually just by touching four screen corners with the pen/pointer.

・Better Performance

A faster refresh-rate lets you write with the smoothness of a real marker.

・Supports Two Pens*3

Dual Pen Mode (half- or full-screen modes) lets two presenters write at the same time.

・Half Screen Mode

The screen is divided vertically with individual color and line-width selection available on both panes.

・Full-Screen Mode

Color and line-width for both pens is the same across the whole screen.

・Two Interactive Light Pens Included

Lightly touch the included pens across the projection surface to write.

Whiteboard Software Extends Built-in Functions

Need more functions? Interactive capabilities expand with Whiteboard Software for Windows PC*4. This software works with interactive-ready Panasonic projectors and Touch Screen LCD displays*5 to greatly enhance your communication capabilities.

*1 Download free LightPen3 Software for Windows here or for Mac OS here. Please check the device, OS version, and driver requirements (if needed) before download and installation to your device.

*2 Additional pens/pointers are optionally available to support multiple presenters.

*3 Available for Windows operating systems.

*4 Download free Whiteboard Software for Windows 8.1 and Windows 10 here.

*5 Please note that some functions available to professional displays are not supported on projectors.

High-Contrast Visibility in Bright Rooms

Give your presentation team an edge with bright and vivid 3,800 lm* images behind them. Thanks to 20,000:1 contrast—25 % more than our PT-TW371R Series—graphics, text, and video are clear and sharp while color resists washout in natural or artificial light.

* Brightness is 3,300 lm for the PT-TW381R/TW380, 3,200 lm for the PT-TX350, and 3,800 lm for the PT-TX440.

Short-Throw Design Gives a Clearer View

Communicate with flair almost anywhere with support for desktop or ceiling installation. The PT-TW381R Series can be set up at arm’s length from the screen to reproduce a big 80-inch image*. As well as bringing large pictures to small spaces, the short-throw lens casts the image in front of the presenter so his or her shadow does not obscure the screen.

* Projection distance is 80 cm for the PT-TW381R/PT-TW380 and 75 cm for the PT-TX440/PT-TX350 when projecting an 80-inch image.

Daylight View Lite

Daylight View Lite optimizes color and brightness according to ambient lighting levels. This function is easily accessed using the supplied remote control.

Low-Maintenance Reliability and Low TCO

Long-life Lamp Lowers Your Overheads

A breakthrough in materials design has enabled development of a new low-degradation long-life lamp designed to operate for 20,000 hours* before recommended replacement. Enjoy lower running costs and excellent reliability.

* Lamp life is approximately 20,000 hours in Eco Mode and 10,000 hours in Normal/Quiet Mode. Replacement timing varies depending on operating environment and usage conditions.

Easy-to-Access Long-life Air Filter

Together with an extra-long-life lamp, the PT-TW381R Series equips a durable air filter supporting up to 10,000 hours* service before suggested maintenance. The filter can be replaced in moments via a handy panel door even when the projector is mounted on the ceiling.

* Filter life is approximately 5,000 hours in Normal Mode, 6,000 hours in Eco Mode, and 10,000 hours in Quiet Mode. Replacement timing varies depending on operating environment and usage conditions.

Multi Monitoring & Control Software

Manage up to 2,048 devices via network with system map visualization and auto-search of unregistered devices. The free software is available with Early Warning functions* (free 90-day trial). These enable real-time monitoring, abnormality detection, and much more.

Multi Monitoring & Control Software and Early Warning Software (Product Information)

* Early Warning Functions (ET-SWA100 Series) are included free with Multi Monitoring & Control Software Ver. 2.0 and later, but require a paid license key and activation to continue usage after a 90-day trial period.

Simple, Flexible, and Very Well Connected

Extensively Connected with HDMI® and PC Inputs

The PT-TW381R Series can connect up to four players at a time via dual HDMI and D-sub inputs*, so multiple presenters won’t have to share a cable, making transitions smoother.

* Computer In 2 is shared with Computer Out.

Options for Wireless Media Mirroring and Casting*1

Create a collaborative space with our optional USB wireless modules for mobile*2 and PC*3 screen-mirroring, or power a media streaming module*4 via USB DC terminal for media casting from PC or mobiles without cable clutter.

*1 Optional ET-WML100 (stock limited)/AJ-WM50 series wireless module is subject to regional availability and requires Wireless Projector app for iOS or Android™ or Presenter Light (for Windows® PC) to enable wireless projection. ET-WML100 Series and AJ-WM50 Series devices are both compatible with all projectors in this series, and either can be used to enable the wireless network function.

*2 When using the Wireless Projector app, display resolution differs depending on your iOS/Android device and the display device. The maximum supported display resolution is WXGA (1280 x 800).

*3 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted.

*4 Panasonic cannot guarantee compatibility with third-party media streaming devices.

Image Adjustment for Distortion-free Projection

V/H Keystone Correction (H: ±15 ° auto/manual, V: ±15 ° manual) provides some leeway for image geometry adjustment when projecting off-axis to the screen center, while Curved Screen Correction tames distortion when shooting onto convex or concave surfaces.

Light and Compact for Easy Portability

Intended for easy room-to-room portability or as an on-ceiling solution supporting Panasonic software and third-party control protocols over LAN, the PT-TW381R Series’ light 3.9 kg (8.6 lbs) weight makes handling a breeze. Manual controls let presenters set up quickly and easily on-site and commence their workshop almost immediately with less wasted time.

Selectable Modes Suit Your Projection Priorities

Choose your preferred mix of high brightness, extended maintenance, or quiet operation. Normal Mode prioritizes picture quality in bright environments, while Quiet Mode projects at a virtually inaudible 30 dB*1 with an extended filter replacement cycle. Eco Mode strikes a useful balance between the two with 20,000-hour*2 lamp-life and 35 dB*1 operation.

*1 38 dB in NORMAL Mode.

*2 Lamp life is approximately 20,000 hours in Eco Mode and approximately 10,000 hours in Normal/Quiet Mode. Replacement timing varies depending on operating environment and usage conditions.

Other Features

Memory Viewer Light

Insert a USB memory device into the USB port and start projecting stored content straight away without need of a connected PC. The USB media player supports a variety of image files, such as JPEG and PNG. Start your presentation right away without having to connect to a computer.

Note: Still images only. Video reproduction is not supported.

Direct Power Off

Projectors with Direct Power Off function allow you to switch off the projector and unplug the power cord right after use. You can safely turn off the room’s breaker switch without waiting for the projector to cool down. This is useful in applications where the projector is mounted on the ceiling, or in time-critical situations.

SPECIFICATIONS

Dimensions (W x H x D)	335 x 134.1*3 x 329 mm (13 3/16˝ x 5 9/32˝ *3 x 12 15/16˝ )
Power Consumption	300 W
Lens	Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.46:1 (Projection distance: 0.79 m [2.59 ft] for 80-inch image)
Resolution	1280 x 800 pixels
Operating Environment	Operating temperature: 5–40 °C (41–104 °F), operating humidity: 20–80 % (no condensation)
Keystone Correction Range	Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual)
Installation	Ceiling/floor, front/rear
Applicable Software	Multi Monitoring & Control Software, Presenter Light Software (for Windows®), Wireless Projector
Contrast Ratio*1	20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Lamp control: Normal)
Power Supply	AC 100–240 V, 50/60 Hz
Light Source	230 W x 1 lamp
Terminals | LAN	RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 1) compatible
Light output	3,300 lm
Operation noise*1	Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB
Projector type	LCD projector
Screen size [diagonal]	1.27–2.54 m (50–100 in), 16:10 aspect ratio
Center-to-corner zone ratio*1	85 %
Note	*1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *2 Lamp replacement cycle stated is maximum value, at which time brightness will have decreased to 50 %. Usage environment affects lamp replacement cycle.*3 With legs at shortest position. *4 Average value. May differ depending on the actual unit.
Terminals | Computer 1 In	D-sub HD 15-pin (female) x 1 [RGB/S-Video/YPB(CB)PR(CR)]
Terminals | Video In	Pin jack x 1
Terminals | Audio In 1	M3 (L,R) x 1
Terminals | Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compatible)
Terminals | Audio Out	M3 (L,R) x 1 (Variable)
Terminals | Computer 2 In/1 Out	D-sub HD 15-pin (female) x 1 [RGB]
LCD Panel | Panel Size	15.0 mm (0.59 in) diagonal (16:10 aspect ratio)
LCD Panel | Number of pixels	1,024,000 ( Number of pixels 1280 x 800 pixels) x 3
Built in Speaker	10 W monaural
Terminals | Audio In 2	Pin jack x 2 (L,R)
Filter Replacement Cycle	Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h
Lamp replacement cycle*2	Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h
Terminals | USB	USB Type-A (for Memory Viewer Light/Wireless Module [Output 5 V/2 A])
Terminals | Mini USB	-
LCD Panel | Panel Size	15.0 mm (0.59 in) diagonal (16:10 aspect ratio)
LCD Panel | Number of pixels	1,024,000 (1280 x 800 pixels) x 3
Light Source	230 W x 1 lamp
Light output	3,300 lm
Lamp replacement cycle*2	Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h
Filter Replacement Cycle	Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h
Resolution	1280 x 800 pixels
Contrast Ratio*1	20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Daylight View: Off, Lamp control: Normal)
Screen size [diagonal]	1.27–2.54 m (50–100 in), 16:10 aspect ratio
Center-to-corner zone ratio*1	85 %
Lens	Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm, throw ratio: 0.46:1 (Projection distance: 0.80 m [2.62 ft] for 80-inch image)
Keystone Correction Range	Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual)
Installation	Ceiling/desk, front/rear
Terminals | HDMI In 1/HDMI In 2	HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM (Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Terminals | Computer 1 In	D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC]
Terminals | Computer 2 In/1 Out	D-sub HD 15-pin (female) x 1 [RGB/YPBPR] (Input/output switching)
Terminals | Video In	Pin jack x 1
Terminals | Audio In 1	M3 (L,R) x 1
Terminals | Audio In 2	Pin jack x 2 (L,R)
Terminals | Audio Out	M3 (L,R) x 1 (Variable)
Terminals | LAN	RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible
Terminals | Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compatible)
Terminals | USB	USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3 ]/Power supply [DC 5 V/2 A])
Terminals | Mini USB	x 1 (Mini-USB connector for interactive function)
Power Supply	AC 100–240 V, 50/60 Hz
Power Consumption	300 W
Built in Speaker	10 W monaural
Operation noise*1	Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB
Dimensions (W x H x D)	335 x 134.1*4 x 329 mm (13 3/16˝ x 5 9/32˝*4 x 12 15/16˝ )
Weight*5	Approx. 3.9 kg (8.6 lbs)
Operating Environment	Operating temperature*6 : Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) at altitudes of 1,400–2,700 m (4,593–8,858 ft); Operating humidity: 20–80 % (No condensation)
Applicable Software	Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software,Presenter Light Software (for Windows®)*7 , Wireless Projector for iOS/Android™*8 , LightPen3 Software for Windows/Mac, Whiteboard Software (for Windows)
Note	*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 Lamp replacement cycle stated is maximum value, at which time brightness will have decreased to 50 %. Usage environment affects lamp replacement cycle. *3 ET-WML100 Series and AJ-WM50 Series devices are both compatible with all projectors in this series, and either can be used to enable the wireless network function. *4 With legs at shortest position. *5 Average value. May differ depending on the actual unit. *6 When [LAMP POWER] is set to [NORMAL] and the projector is operated at an elevation of 1,400 m (4,593 ft) or less, if the ambient temperature exceeds 35 °C (95 °F), [LAMP POWER] will be switched to [ECO] automatically to protect the projector. When [LAMP POWER] is set to [NORMAL] and the projector is operated at an elevation between 1,400 m (4,593 ft) and 2,700 m (8,858 ft), if the ambient temperature exceeds 30 °C (86 °F), [LAMP POWER] will be switched to [ECO] automatically to protect the projector. *7 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. *8 When using the Wireless Projector app, display resolution differs depending on your iOS/Android ™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).
