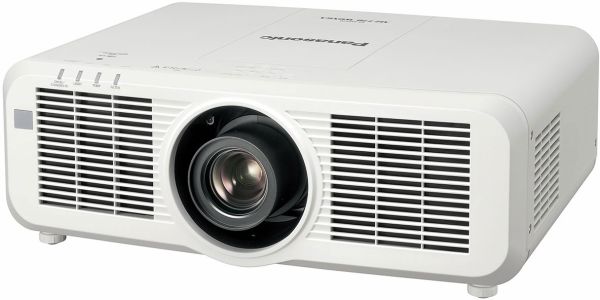

Panasonic PT-MZ770 LCD Projector
Hits all targets for bright and efficient installation projection
The PT-MZ770 Series features newly released 8,000-lumen high-brightness projector models that enable clear and vivid large-screen projection in bright environments. The MZ770 Series combines Panasonic’s time-proven LCD with industry-leading SOLID SHINE Laser light-source technology to achieve consistent high-quality pictures and extremely stable performance. Flexible installation in corporate or educational facilities is complemented by an efficient Eco Filter, which helps to extend maintenance to about 20,000 hours*1.
Note: PT-MZ770L/LB, PT-MZ670/L/LB, PT-MZ570L, PT-MW730L, PT-MW630L, and PT-MW530L deliver the same performance as PT-MZ770, PT-MZ670, PT-MZ570, PT-MW730, PT-MW630, and PT-MW530, but come without a lens.
*1 Around this time, original light source brightness will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Dynamic contrast , Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.
*2 PT-MZ770LB and PT-MZ670LB are only available in Americas and Europe.
*3 With image mode set to "Dynamic” and Dynamic Contrast set to 1 or 2.
*4 Optional Wireless Module ET-WM300 is required for wireless projection.
Brilliant Picture Quality
Vivid Images in Bright Environments
SOLID SHINE Laser phosphor drive with advanced 3LCD optical engine projects bright, vivid, and detailed pictures even in rooms with high levels of artificial light. Text is reproduced clearly and legibly, while graphics and video retain excellent color saturation and high contrast.
Dynamic Contrast of 3,000,000:1* for Natural Image Expression
Precision laser power output modulation achieves high contrast with low power consumption, enabling superior expression of light and dark scenes for a natural, comfortable viewing experience. The PT-MZ670 Series features high 3,000,000:1* dynamic contrast.
* With image mode set to “Dynamic” and Dynamic Contrast set to 1 or 2.
Daylight View Basic Optimizes Pictures in Bright Spaces
Daylight View Basic delivers clear and sharp images by enhancing detail, particularly in dark areas of the image, that are difficult to see in brightly lit rooms. A sensor measures ambient light while Daylight View Basic adjusts halftone color and brightness to suit surrounding illumination.
Detail Clarity Processor 4 Provides Pin-Sharp Insight
Proprietary circuitry analyzes individual video frames to clarify areas of each image containing fine details. Algorithms pull information from four frequency bands of the signal, sharpening outlines, correcting contours, and reducing ringing noise for a vastly superior picture.
Color Adjustment Function
Color Adjustment makes it easy to correct slight variations in the color reproduction range of individual units set up for multiple projection, particularly those in side-by-side configuration. Correction is performed on 3 or 7 colors.
Low Maintenance with ECO Functions
No Light-Source Replacement for 20,000 hours*
Laser light-source lifespan is extended to 20,000 hours*, cutting running costs, labor, and wastage in comparison to lamp-based projectors. By reducing use of consumable parts, organizations can also streamline spare-part inventories.
* Around this time, original light source brightness will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Dynamic contrast , Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.
Dust-Resistant Cabinet with One-Way Airflow Design
Dust-resistant cabinet has an unobstructed one-way airflow with improved hermetic sealing around the filter module and air-intake duct. Better lens-assembly hermeticity reduces dust intrusion and extends picture brightness.
Reusable ECO Filter Replacement Extended to 20,000 Hours*1
Eco Filter includes a Micro Cut Filter that collects minute dust particles with an electrostatic effect. Together with dust-resistant projector cabinet, Eco Filter enables long-term use in dusty conditions with less downtime. Replacement is at about 20,000 hours*1, and the filter can be washed and reused*2.
*1 Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment. *2 Please follow the procedures listed in the operating instructions when washing filter with water. Replacement is recommended after filter has been washed and reused twice, or if filter is not sufficiently clean after washing.
ECO Management System with Intelligent Light-Source Control
Energy efficiency is achieved by automatically reducing light-source output power in dim rooms, and by transitioning to a low-power mode when no signal is detected.
Excellent System Flexibility
Single-Cable DIGITAL LINK Connection for AV and Control Signals
Based on HDBaseT™ technology, DIGITAL LINK supports transmission of Full HD video, audio*1, and control commands through a single CAT 5e or higher STP cable for distances of 150 m*2 (492 ft). An optional DIGITAL LINK Switcher or Digital Interface Box further streamlines installation in large venues.
*1 Audio transmission depends on model’s audio capability.
*2 150 m (492 ft) transmission available with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080p in Long Reach Mode only.
Powered Lens Shift, Zoom, and Focus
Wide adjustment range of the powered horizontal/vertical lens-shift function enhances convenience and versatility during installation. Zoom and focusing are also easily performed with the supplied remote control.
*1 Adjustment range may vary depending on lens attached.
*2 Not supported with PT-MZ770/MZ770L/MW730//MW730L.
Supports 4K Input (PT-MZ770/L only)
The PT-MZ770/L supports uncompressed 4K signal input via HDMI® or DIGITAL LINK. Images are converted to Full HD (1920 x 1080) upon projection.
Auto Image Rotation
Images are automatically* rotated depending on projector orientation— upside-down on the ceiling or set on a table—using a built-in angle sensor.
* Manual setting also available via setup menu.
The quiet design keeps noise levels down to a low 26 dB* in Quiet Mode with the cooling fan hardly audible, minimizing distractions during presentations.
* Value for PT-MZ670 Series. Value for PT-MZ770 Series is 28 dB (Quiet Mode). When in Quiet Mode, brightness decreases to 70% of maximum.
Project Wirelessly with Optional Module
An optional ET-WM300 wireless module supports media projection from Windows® and Mac PCs*1, iOS devices, and Android™ devices*2 with an appropriate app installed. Whether projecting from desk or ceiling, there’s no need for cables, and a variety of file formats are supported.
*1 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. *2 When using the Wireless Projector app, display resolution differs depending on your iOS/Android device and the display device. The maximum supported display resolution is WXGA (1280 x 800).
Plug and Share
Insert a USB memory device into the projector’s USB terminal. In less than a minute, configuration setting files and an application are copied. Plug the USB memory device into your PC, click the player icon, and transmit video and stills wirelessly to the projector—no software or network setup required.Click here to download software.
Note: When using Plug and Share software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen.
Free 360-degree Installation
SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion temporarily or in permanent applications.
Loaded with High-Value Features
Multi Monitoring & Control Software
Panasonic Multi Monitoring & Control Software supports up to 2,048 devices over LAN and features system map visualization or auto-search of devices to be registered. The free software is available with Early Warning functions (automatic free 90-day trial available). These advanced functions enable real-time monitoring, abnormality detection, and notification before servicing is required. Administrators can achieve seamless control and real-time monitoring while preventing potential problems, saving time, and enhancing system reliability.
* Software functionality varies depending on the model.
Quick Start and Quick Off
The laser light source doesn’t require any time to warm up, so images appear almost instantly on projectors with Quick Start/Quick Off function. There’s also no cool-down needed when turning the power off. It’s safe to switch the projector on and off any time desired.
Fade In and Fade Out
Another benefit of digital laser output power modulation technology is a handy Fade In/Fade Out function, which allows users to commence or conclude their presentation to professional effect.
|PT-MZ770 / MZ770L / MZ670 / MZ670L||PT-MZ570 / MZ570L|
|Power supply||100–240 V AC, 50/60 Hz||100–240 V AC, 50/60 Hz|
|Power consumption||PT-MZ770/MZ770L: 570 W PT-MZ670/MZ670L: 525 W||450 W|
|Panel size||19.3 mm (0.76˝ ) diagonal (16:10 aspect ratio)||19.3 mm (0.76˝ ) diagonal (16:10 aspect ratio)|
|Display method||Transparent LCD panel (× 3, R/G/B)||Transparent LCD panel (× 3, R/G/B)|
|Drive method||Active matrix||Active matrix|
|Pixels||2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels||2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels|
|Lens||PT-MZ770/MZ670: Powered zoom (Throw Ratio 1.6–2.8 :1), F = 1.7–2.3, f = 26.8–45.5 mm PT-MZ770L/MZ670L: Optional powered zoom/focus lenses||PT-MZ570: Powered zoom (Throw Ratio 1.6–2.8 :1), F = 1.7–2.3, f = 26.8–45.5 mm PT-MZ570L: Optional powered zoom/focus lenses|
|Light source||Laser diode (Class 1) (Class 3R for US models)||Laser diode (Class 1) (Class 3R for US models)|
|Filter||x 1, estimated maintenance time: approx. 20,000 hours*1||x 1, estimated maintenance time: approx. 20,000 hours*1|
|Screen size (diagonal)||1.02–10.16 m (40–400 in), 16:10 aspect ratio 1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio||1.02–10.16 m (40–400 in), 16:10 aspect ratio 1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio|
|Brightness*2||PT-MZ770/MZ770L: 8,000 lm PT-MZ670/MZ670L: 6,500 lm||5,500 lm|
|Center-to-corner uniformity*2||90 %||90 %|
|Contrast||3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2)||3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2)|
|Resolution||1920 × 1200 pixels*3||1920 × 1200 pixels*3|
|Optical axis shift*4*5 (from center of screen)|
|Vertical||±67 % (powered) (for supplied lens)||±67 % (powered) (for supplied lens)|
|Horizontal||±35 % (powered) (for supplied lens)||±35 % (powered) (for supplied lens)|
|Keystone correction range*4||Vertical: ±25°, Horizontal: ±30° (for supplied lens)||Vertical: ±25°, Horizontal: ±30° (for supplied lens)|
|Installation||Horizontal/Vertical, free 360-degree installation||Horizontal/Vertical, free 360-degree installation|
|Built-in speaker||10 W (monaural)||10 W (monaural)|
|Cabinet materials||Molded plastic (PC + ABS)||Molded plastic (PC + ABS)|
|Dimensions (W x H x D)||PT-MZ770/MZ670: 560 x 205*6 x 443 mm (22 1/16˝ x 8 1/16˝ *6 x 17 7/16˝ ) (with supplied lens) PT-MZ770L/MZ670L: 560 x 205*6 x 428 mm (22 1/16˝ x 8 1/16˝ *6 x 16 27/32˝ ) (without lens)||PT-MZ570: 560 x 205*6 x 443 mm (22 1/16˝ x 8 1/16˝ *6 x 17 7/16˝ ) (with supplied lens) PT-MZ570L: 560 x 205*6 x 428 mm (22 1/16˝ x 8 1/16˝ *6 x 16 27/32˝ ) (without lens)|
|Weight*7||PT-MZ770: Approximately 17.1 kg (37.7 lbs) (with supplied lens) PT-MZ770L: Approximately 16.2 kg (35.7 lbs) (without lens) PT-MZ670: Approximately 16.9 kg (37.3 lbs) (with supplied lens) PT-MZ670L: Approximately 16.1 kg (35.5 lbs) (without lens)||PT-MZ570: Approximately 16.9 kg (37.3 lbs) (with supplied lens) PT-MZ570L: Approximately 16.1 kg (35.5 lbs) (without lens)|
|Operating noise*2||PT-MZ770/MZ770L: 35 dB (Normal/ECO Mode), 28 dB (Quiet Mode) PT-MZ670/MZ670L: 32 dB (Normal/ECO Mode), 26 dB (Quiet Mode)||32 dB (Normal/ECO Mode), 26 dB (Quiet Mode)|
|Operating environment||Operating temperature: 0 °C– 45 °C (32 °F –113 °F)*8, operating humidity: 20 %–80 % (no condensation)||Operating temperature: 0 °C– 45 °C (32 °F –113 °F)*8, operating humidity: 20 %–80 % (no condensation)|
|Applicable software/application||Logo Transfer Software, Multi Monitoring & Control Software, Wireless Manager ME, Plug and Share, Smart Projector Control App, Wireless Projector App||Logo Transfer Software, Multi Monitoring & Control Software, Wireless Manager ME, Plug and Share, Smart Projector Control App, Wireless Projector App|
|Supplied accessories||Power cord with power cord holder*9, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual)||Power cord with power cord holder*9, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual)|
|TerminalsPT-MZ770 / MZ770L PT-MZ670 / MZ670L PT-MZ570 / MZ570L|
