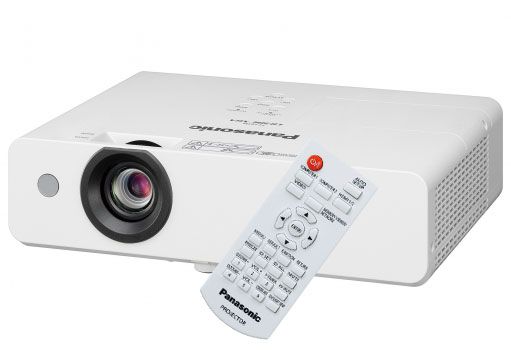

Panasonic PT-LB386 LCD Projector

SKU
N47226
Panasonic
Rs 224,999.00
In stock

Variety of Useful Features

Ease Wireless Projection by Optional Modul

Simply inserting the optional ET-WML100 Wireless Module into the USB port on the projector enables easy wireless projection from Windows PCs, iOS devices, or Android devices on which the proper freeware is installed.

Presenter Light for Windows® PCs

Pictures, videos, and any documents including PDF files/Power Point files, whatever are displayed on the PC screen can be projected.

The images from up to four PCs can be projected simultaneously.

VueMagic™ Pro* for iOS/Android Devices

Pictures, some documents including PDF files can be projected.

Live camera mode / Annotate mode can be used.

The images from up to four devices can be projected simultaneously.

Memory Viewer Function

In addition to JPEG/BMP image and text files, PDF files can be projected by simply inserting a USB memory device containing the data into the USB memory port. Now you can start your presentation without having to connect to a computer.

USB Display Function for Easy Projection Using a USB Cable

USB Display outputs images and sounds from the computer without the need to install any software. Simply connect* to the USB port with a single USB cable and start your presentation.

* The first time a USB cable is connected, a USB driver must be installed.

Equipped with an HDMI Input Terminal and Abundant Interfaces

Extensive interfaces include an HDMI input terminal, 2 sets of computer (RGB) input terminals, a monitor (RGB) output terminal, a wired LAN terminal, and a serial (RS-232C) terminal for external control. These features support a wide range of system architectures for portable or ceiling-mounted use.

A Wide Variety of Functions for Easy Setup

Auto Input Signal Search

The Auto Input Signal Search function automatically detects the input signal and selects the input channel based on the signal. This function lets you start a presentation without any complicated setup required.

Real-Time Keystone Correction

With Real-Time Keystone Correction, the projector automatically senses if you adjust its angle (in the vertical direction) during operation and instantly makes whatever keystone correction is necessary for optimal viewing.

Color-board and Blackboard (Green) modes

Color-board and Blackboard (Green) modes adjust the colors to provide high-quality projection possible in rooms that don’t have a screen.

10-Watt Speaker Enables Audio Playback Directly from the Projector

These portable projectors feature high-output 10-watt speaker that produces a high sound volume without requiring external speakers.

Other Features

  • Direct Power Off right after use
  • Projector identification system for remote control allocation of up to six projectors
  • Built-in closed caption decoder.

Excellent Performance in a Compact Body

High Brightness and High Contrast  in a Lightweight Body

A brightness level ranging from 3,100 lm* to 4,100 lm* and contrast ratio of 16,000:1 have been achieved in a compact lightweight body. Clear and bright images enhance the learning and working experience.

* Brightness ratings for models in the PT-LB426 Series are as follows:  PT-LB426 (4,100 lm), PT-LB386 (3,800 lm), PT-LB356 (3,300 lm), PT-LW376 (3,600 lm), and PT-LW336 (3,100 lm), PT-LB306 (3,100 lm)

A Maximum 10,000-hour *1  Lamp Replacement Cycle and 10,000-hour *2 Air Filter Replacement Cycle

The PT-LB426 Series has a maximum lamp replacement cycle of 20,000 hours.*1 The air filter also has a replacement cycle of 10,000 hours.*2 This reduces maintenance hassles for long periods of use, and helps to lower maintenance costs and reduce environmental impact.

*1 This is the maximum value when the lamp power is set to Eco2. The usage environment affects the lamp replacement cycle. *2 The usage environment affects the duration of the filter.

Daylight View Lite

The Daylight View Lite function can be activated from the remote control for easy and comfortable viewing during presentations and lectures in a bright room.

Ease of Installation

Corner Keystone Correction Enables Angeld Projection

All you need to do is designate for points as the corner of the projected image, and this function easily carries out horizontal and vertical keystone correction.

Easy Remote Monitoring and Control over a LAN

Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status.In addition, Multi Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.

1.2x Zoom Lens Allows Flexible Installation

The PT-LB426 Series includes a 1.2x zoom lens to support a wide range of projection throw-distances. This is useful when presenting in rooms of different sizes.

Easy Lamp and Air Filter Replacement Simplifies Maintenance

For easier maintenance, you can replace the lamp from the top and the air filter from the side, even after the projector is installed on the ceiling. This eliminates the need to detach the projector from its mounting bracket in ceiling-mounted applications.

SPECIFICATIONS

LCD Panel | Panel Size 16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
LCD Panel | Number of pixels 786,432 (1024 x 768 pixels) x 3
Light Source 230 W x 1 lamp
Light Output *2 3,800 lm
Lamp replacement cycle*3 Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h
Filter Replacement Cycle Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h
Resolution 1024 x 768 pixels
Contrast Ratio*2 20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Auto Power Save: Off, Daylight View: Off, Lamp control: Normal)
Screen size [diagonal] 0.76–7.62 m (30–300 in), 4:3 aspect ratio
Center-to-corner zone ratio*2 85 %
Lens Manual zoom (1.2x), manual focus lens, F = 1.6–1.76, f = 19.16–23.02 mm,throw ratio: 1.48–1.78:1
Keystone Correction Range Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual)
Installation Ceiling/desk, front/rear
Terminals | HDMI 1/2 IN HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM (Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Terminals | Computer 1 In D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC]
Terminals | Computer 2 In/1 Out D-sub HD 15-pin (female) x 1 [RGB/YPBPR] (Input/output switching)
Terminals | Video In Pin jack x 1
Terminals | Audio In 1 M3 (L,R) x 1
Terminals | Audio In 2 Pin jack x 2 (L,R)
Terminals | Audio Out M3 (L,R) x 1 (Variable)
Terminals | LAN RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible
Terminals | Serial In D-sub 9-pin (female) x 1 for external control (RS-232C compatible
Terminals | USB A USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*4]/Power supply [DC 5 V/2 A])
Terminals | USB B -
Power Supply AC 100–240 V, 50/60 Hz
Power Consumption 300 W
Built in Speaker 10 W monaural
Operation Noise*2 Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB
Cabinet Materials Molded plastic
Dimensions (W x H x D) 335 x 96*5 x 252 mm (13 3/16˝ x 3 25/32˝ *5 x 9 29/32˝ )
Weight*6 Approx. 2.9 kg (6.4 lbs)
Operating Environment Operating temperature*7: Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) ataltitudes of 1,400–2,700 m (4,593–8,858 ft); Operating humidity: 20–80 % (No condensation)
Applicable Software Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software, Presenter Light Software (for Windows®)*8, Wireless Projector for iOS/Android™*9
Note *1 Availability may vary by country or region. *2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *3 Lamp replacement cycle stated is maximum value, at which timebrightness will have decreased to 50 %. Usage environment affects lamp replacement cycle. *4 ET-WML100 Series and AJ-WM50 Series devices are both compatible with supported projectors in this series, and either can be used to enable the wireless network function. *5 With legs atshortest position. *6 Average value. May differ depending on the actual unit. *7 When [LAMP POWER] is set to [NORMAL] and the projector is operated at an elevation of 1,400 m (4,593 ft) or less, if the ambient temperature exceeds 35 °C (95 °F), [LAMP POWER] will be switched to[ECO] automatically to protect the projector. When [LAMP POWER] is set to [NORMAL] and the projector is operated at an elevation between 1,400 m (4,593 ft) and 2,700 m (8,858 ft), if the ambient temperature exceeds 30 °C (86 °F), [LAMP POWER] will be switched to [ECO]automatically to protect the projector. *8 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images andsound are being transmitted. *9 When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).
BrandPanasonic
HDMIYes
Warranty1 Year Manufacturer
3DNo
Lumens3800
Contrast Ratio16,000:1
Projector ResolutionXGA
Aspect Ratio4:3
Shipping24 - 48 hrs
