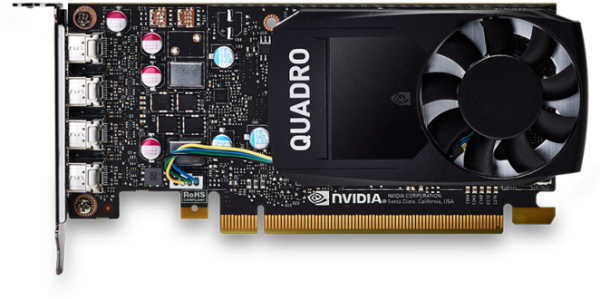

NVIDIA Quadro VCQP620V2-PB P620 V2 Graphics Card
Overview
Unmatched Power. Unmatched Creative Freedom.
NVIDIA Quadro P620 — Full Professional Performance and Features in a Small Form Factor.
The NVIDIA Quadro P620 combines a 512 CUDA core Pascal GPU, large on-board memory and advanced display technologies to deliver amazing performance for a range of professional workflows. 2 GB of ultrafast GPU memory enables the creation of complex 2D and 3D models and a flexible single-slot, lowprofile form factor makes it compatible with even the most space and power-constrained chassis. Support for up to four 4K displays (4096x2160 @ 60 Hz) with HDR color gives you an expansive visual workspace to view your creations in stunning detail.
CUDA Cores |
512 |
GPU Memory |
2 GB GDDR5 |
Memory Interface |
128-bit |
Memory Bandwidth |
Up to 80 GB/s |
Display Connectors |
mDP 1.4 (4) |
Warranty |
1 Years |
PNY Part Number |
VCQP620V2-PB |
EAN Number |
3536403375553 |
PNY Technologies delivers professional graphics cards with all necessary accessories, including appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install. PNY Technologies offers a standard 3-year warranty, dedicated Quadro Field Application engineers and direct tech support hot lines for pre- and post-support.
Specifications
Memory Size |
2 GB GDDR5 |
Memory Interface |
128-bit |
Memory Bandwidth |
80 GB/s |
CUDA Cores |
512 |
System Interface |
PCI Express 3.0 x16 |
Max Power Consumption |
40 W |
Energy Star Enabling |
Yes |
Thermal Solution |
Ultra-quiet active fansink |
Form Factor |
68,9 mm H × 145 mm L (2.713” H × 5.7” L) Single Slot, Low Profile |
Display Connectors |
4 × mDP 1.4 |
Max Simultaneous Displays |
4 Direct 4 DP 1.4 Multi-Stream |
DisplayPort 1.4 |
Yes |
DisplayPort with Audio |
Yes |
DVI-D Single-Link Connector |
Via included adapters |
Max DP 1.4 Resolution |
5120 × 2880 @ 60 Hz |
Maximum DVI-I DL Resolution |
2560 ×1600 @ 60 Hz |
Maximum DVI-I SL Resolution |
1920 × 1200 @ 60 Hz |
HDCP 2.2 Support |
Yes |
Graphics APIs |
Shader Model 5.1, OpenGL 4.5, DirectX 12, Vulkan 1.0 |
Compute APIs |
CUDA, DirectCompute, OpenCL™ |
NVIDIA nView™ DesktopManagement Software Compatibility |
Yes |
Mosaic Mode |
Yes |
3D Stereo Support |
Yes |
NVIDIA GPUDirect™ Support |
Yes |
Quadro Sync II Compatibility |
No |
Stereo Connector |
No |
Package Content |
4 × mDP to DP adapter |
QUADRO P620 - Minimum System Requirements |
|
Windows 10, Windows 8.1, Windows 8, 7, Linux, or Solaris PCIe x16 expansion slot 1GB or more of system memory, 2GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) Ccompatible display(s) |
Brand | PNY Technologies |
---|---|
HDMI | Yes |
Warranty | 1 Year Manufacturer |
Memory Size | 2GB |
Interface | PCI-Express 4.0 |
Core Clock | Info N/A |
Memory Clock | Info n/a |
DVI Out Put | Yes |
Max Resolution | 2560 x 1600 |
Memory Interface | 128 bit |
Shipping | 24 - 48 hrs |
