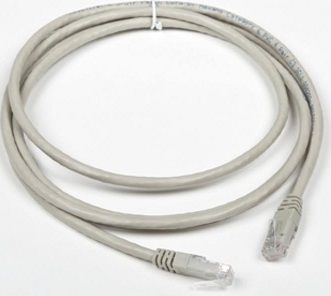

NEXANS Essential-6 Patch Cord UTP Cat 6 PVC Grey 3m

Description

The Nexans Essential-6 patch cords are manufactured and tested to the latest Category 6 specifications and support Class E applications up to 250 MHz. They are matched with the complete Essential-6 range in order to deliver a full end-to-end Class E Channel.

Design

The Essential-6 patch cords contain a central PE cross member, keeping the pairs in place and reducing the risk of losing performance when bending the cords. Available in standard lengths of 1, 2, 3 and 5m, each cord is individually bagged and carries a traceability code.

Performance

The Essential-6 cords are compliant with the specifications of ISO/IEC 11801 and EN 50173.

Installation

Thanks to their small outer diameter, the Essential-6 cords are easy to install and manage in a rack.

Characteristics

Construction characteristics

Screen

UTP

Colour

Light grey

Outer sheath

PVC

Dimensional characteristics

Conductor cross-section (AWG/KCMIL)

-

Electrical characteristics

Characteristic impedance

100 Ohm

Usage characteristics

Category

Cat. 6

Component function

Patchcord

Flame retardant

IEC 60332-1

Length

3 m

Mechanical durability/matings

-

Range

essential-6
