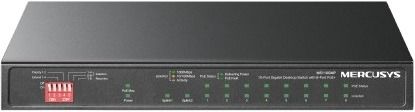

Mercusys MS110GMP 10-Port Gigabit Desktop Switch with 8-Port PoE+

MS110GMP 10-Port Gigabit Desktop Switch with 8-Port PoE+

111W

PoE Budget

8×

PoE+ Ports

2×

Gigabit Uplink

Ports

PoE Auto

Recovery

Long-Range

up to 250 m

Isolation

Mode

Priority

Ports

Durable Metal

Casing

Plug and

Play

8 PoE+ Ports for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 8 PoE+ ports supports a maximum power supply of 30 W. The total 111 W PoE power budget* can be applied in various scenarios, including surveillance, offices, dormitories, and small businesses, since MS110GMP is compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

111W

Total Power Budget

30W

Max on Each Port

Power and Data

Data Only

Access Point

IP Camera

IP Phone

Internet

Router

Network Video Recorder

Power over Ethernet: Two Cables in One

Traditional Switches

Power

Data

MS110GMP

Power + Data

No Fuss

No need for electricians; simplify installation and deployment.

Cost-Efficiency

Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility

Deployment in complex situations is made possible by more placement possibilities.

Power Management

Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at

PoE ports compliant with the 802.3af/at Powered Devices.

Long-Range up to 250 m with Extend Mode

Extend Mode** increases PoE transmission distance to 250 m. MS110GMP has 4 ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Traffic Separation

Isolation Mode easily divides traffic for ports 1-4 & 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

Port Prioritization

Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video.

PoE Auto Recovery

When a PoE-powered device stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

Plug and Play

MS110GMP offers auto-negotiation (10/100/1000M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Durable and Silent

MS110GMP’s durable metal case allows for a long network life. Its fanless design reduces power consumption and noise generated. And you can put the switch on desk or wall mount to meet your demand.

Durable Metal Casing

Silent
Operation

Wall
Mount
