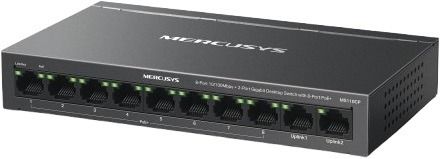

Mercusys MS110CP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+

SKU
U72637
main product photo
Mercusys
Rs 8,999.00
In stock
Notify me when the price drops
Category: Switches

Fast Delivery
Same Day in Lahore

7 Days Replacement
If goods have problems

Secure Payment
100% secure payment

24/7 Support
Dedicated support



MS110CP 8-Port 10/100Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+





65W
PoE Budget
8×
PoE+
Ports
2×
Gigabit
Ports
Plug and Play
Long-Range up to 250 m
Isolation Mode
PoE Auto Recovery
Silent Operation
Durable Metal Casing





8 PoE+ Ports and 2 Gigabit Ports for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 8 PoE+ ports supports a maximum power supply of 30 W. 2 Gigabit non-PoE ports are for uplink devices, one of which is used to connect to the internet and the other to the NVR. The total 65 W PoE power budget* can be applied in various scenarios, including surveillance, offices, dormitories, and small businesses, since MS110CP is compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

30W
Max on
Each Port
65W
Total Power
Budget
IP Camera
IP Phone
Access Point
Data and Power
Data Only

8 PoE+ Ports and 2 Gigabit Ports for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 8 PoE+ ports supports a maximum power supply of 30 W. 2 Gigabit non-PoE ports are for uplink devices, one of which is used to connect to the internet and the other to the NVR. The total 65 W PoE power budget* can be applied in various scenarios, including surveillance, offices, dormitories, and small businesses, since MS110CP is compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

Gigabit ×2
INTERNET
Router
Network Video Recorder
Data and Power
Data Only






Power over Ethernet: Two Cables in One



Traditional Switches

Power

Data

MS110CP

Power + Data



No Fuss

No need for electricians; simplify installation and deployment.



Cost-Efficiency

Getting rid of extra cables and power adapters will save money on infrastructure.



Flexibility

Deployment in complex situations is made possible by more placement possibilities.



Power Management

Improves power usage while intelligently protecting your gadgets from power surges.



IEEE 802.3af/at

PoE ports compliant with the 802.3af/at Powered Devices.







Long-Range up to 250 m with Extend Mode

Extend Mode increases PoE transmission distance to 250 m. MS110CP has eight long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

250m





Traffic Separation

With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110CP provides 2× uplink ports when turning on the isolation mode.

PoE Auto Recovery
IP Camera



PoE Auto Recovery

The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

MDI
auto
MDIX

Plug and Play

MS110CP offers auto-negotiation(10/100M) and automated MDl/MDIX. There is no additional configuration needed. lt is simple to use, saving time and effort.







Durable and Silent

MS110CP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life.



Durable Metal Casing



Silent Operation



WallMount

Brand Mercusys
Warranty 1 Year Manufacturer
Shipping Same Day From Lahore
