SPECIFICATIONS


Product Information
Component Model Number (M/N) S/N Location
Wheel W-U0004 Under wheel base

Product Dimensions
Component Height Width Depth Weight
Wheel 270 mm (10.63 in) 10.94 mm (278 in) 260 mm (10.24 in) 2.25 kg (4.96 lb)
Pedals 167 mm (6.57 in) 311 mm (12.24 in) 428.5 mm (16.87 in) 3.10 kg (6.83 lb)

General Product Specifications
Software Support (at release) Logitech Gaming Software
OS/Platform Support Windows 7, Windows 8, Windows 8.1, Windows 10
Mac OS X 10.10.x or later
Playstation 3, Playstation 4
Apps Available (at release) N/A
System Requirements •  PlayStation 4 / PlayStation 3 and games that support Logitech® force feedback racing wheel,
•  Windows 10, Windows 8, 8.1, or Windows 7, Mac OS X 10.10.x or later, 150 MB of available hard disk space, USB port, games that support Logitech® force feedback racing wheel

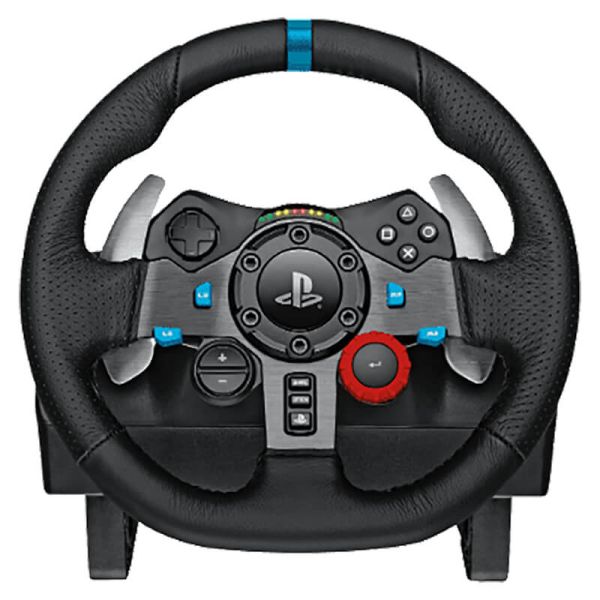

Wheel Specifications
Connection Type USB (corded)
USB VID_PID VID_046D&PID_C24F (PC Mode)
USB Protocol USB 2.0
USB Speed Full-speed
Indicator Lights (LED) RPM/Shift Indicator LEDs
Wheel Rotation 900 degrees (Max)
AC Adapter 24V 1.75A, Autoswitching
Special Buttons Directional Pad
Square, Triangle, Circle, X
L1 / R1 (Paddles)
L2 / R2
R2 / R3
+ / -
24-point Selection Dial
Enter
PS
SHARE
OPTION
Other Features Dual-motor force feedback; helical gearing
Cable Length (USB) 6 ft (1.8 m)

Pedals Specifications
Connection Type Pedals connection - DB9 (Male)
Special Buttons Pedals (3) - Throttle, Brake, and Clutch
Other Features Retractable non-slip pad (underside of pedal base)
Cable Length 6 ft (1.8 m)
