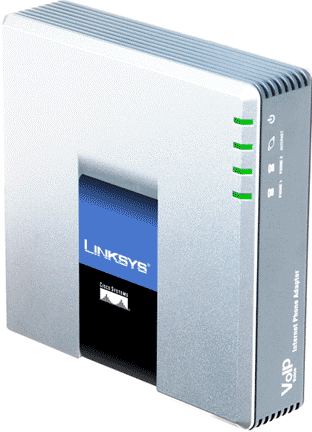

Linksys Internet Phone Adapter with 2 Ports for Voice-over-IP

SKU
N31309
-18%
Linksys
Special Price Rs 5,499.00 was Rs 6,699.00
Out of stock

The Linksys Internet Phone Adapter enables high-quality feature-rich VoIP (voice over IP) service through your broadband Internet connection. Just plug it into your home Router or Gateway and use the two standard telephone ports to connect analog phones or use one of the ports for a fax machine. Each phone port operates independently, with separate phone service and phone numbers, like having two telephone lines. You'll get clear reception and a reliable fax connection, even while using the Internet at the same time.








STEP 1
You must first determine what IP address it received. To do this, you need to pick up the phone attached to the Line 1 jack and

dial:   **** (four asterisks)
then dial:  110 #


and you will be told the IP address of your device (e.g. 192.168.0.100).








STEP 2
Go to any browser equipped computer on your network and enter the address:

http://<IP ADDRESS>/

(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1.







STEP 3
Click on the "Admin Login" button near the top right side of the screen, then click on the "Line 1" tab.






























STEP 4
You need to modify only a few parameters from the factory default. They are listed here:
Proxy:  sip.inphonex.com
Display Name:  Enter your full name, this will show up as part of your callerid.
User ID:  Enter the phone number you chose when you signed up for InPhonex service.
Password:  Enter the password that you chose when you signed up for InPhonex service.
Register Expires:  3600








STEP 5
To save bandwidth, you can change Line 1 "Preferred Codec" to G729a. Also change the "Use Pref Codec Only" to No. You can only do this for one line. So, if Line 1 is on G.729a, Line 2 has to be some other codecs.








STEP 6
Click on the "Save Settings " button at the bottom of the form.








STEP 7
Make calls!

BrandLinksys
Warranty7 Day Replacement
Shipping24 - 48 hrs
