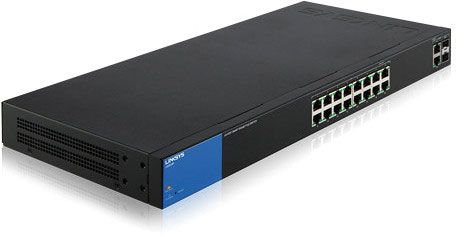

Linksys LGS318P-18 Port Business Smart Gigabit Switch with 2 Combo SFP Ports

SKU
N64938
main product photo
Linksys
Rs 69,999.00
Out of stock

18 x Gigabit Ethernet Ports
128MB DRAM
125 W Dedicated PoE+ Power
16 x Ports w/ PoE+ Support
Enhanced Green Power Mode
26.79 Mpps Forwarding Rate
36 Gbps Switching Capacity
8K MAC Address Table
9K Jumbo Frame (FE, GE)
Supports Up to 128 Active VLANs

Notify me when the price drops
Notify me when this product is in stock
Category: Switches

Fast Delivery
Same Day in Lahore

7 Days Replacement
If goods have problems

Secure Payment
100% secure payment

24/7 Support
Dedicated support

Special Offers

Samsung Galaxy A34 5G 8GB 256GB

Samsung Galaxy A34 5G 8GB 256GB

Special Price Rs 94,999.00 was Rs 114,999.00
Vivo V30 5G 12GB 256GB

Vivo V30 5G 12GB 256GB

Special Price Rs 127,999.00 was Rs 139,999.00
HP Pavilion 15 EH3050AU AMD Ryzen 7 7730U 16GB 1TB SSD

HP Pavilion 15 EH3050AU AMD Ryzen 7 7730U 16GB 1TB SSD

Special Price Rs 201,999.00 was Rs 237,999.00
Realme Note 50 4GB 64GB

Realme Note 50 4GB 64GB

Special Price Rs 22,999.00 was Rs 25,999.00
Tecno Spark 20 Pro Plus 8GB 256GB

Tecno Spark 20 Pro Plus 8GB 256GB

Special Price Rs 53,499.00 was Rs 59,999.00
Lenovo IdeaPad 1 15AMN7 AMD Ryzen 5 7520U 8GB 512GB SSD

Lenovo IdeaPad 1 15AMN7 AMD Ryzen 5 7520U 8GB 512GB SSD

Special Price Rs 111,999.00 was Rs 129,999.00

With 16 Power over Ethernet enabled ports, the LGS318P 18-Port Smart Gigabit PoE+ Gigabit Switchfrom Linksys helps to eliminate the need to run an additional power supply to your network components. The "plus" gives you roughly double the power per port while remaining backwards compatible with the traditional 802.1af PoE networking standard. In addition to Power over Ethernet functionality, this network switch features 18 Gigabit Ethernet ports along with a forwarding rate of 26.79 Mpps, a switching capacity of 36 Gbps, an 8K MAC address table, and 9K Jumbo Frame support.

Quality of Service (QoS)

Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency.
Power over Ethernet Plus (PoE+)
Linksys smart switches support the latest 802.3at (PoE+) standards and provide up to double the power budget per Gigabit Ethernet port while offering 802.3af (PoE) backward-compatibility. Power over Ethernet reduces electrical wiring costs, simplifies installation, and supports network devices such as IP cameras and wireless access points in optimal indoor and outdoor locations.
Network Security
Unauthorized access to the network and mission-critical data is a constant concern. Linksys smart switches help secure networks through port authentication and MAC-based port security, requiring clients to authenticate themselves before any data is passed. Advanced DHCP snooping and IP-MAC binding functions ensure network integrity and help prevent network attacks.
Network Expansion
Linksys smart switches include features for quickly expanding and growing your network. Multiple high-bandwidth trunks between switches enhance availability and redundancy. Spanning Tree Protocol (STP) and Storm Control features help control planned or inadvertent cable loops.

 Specifications

Linksys LGS318P Specs



Hardware Specifications
Ports 18 x Gigabit Ethernet ports
Copper Ports Copper FE/GE Ports (RJ45): g01-g08, g09-g16
Combo Ports Combo Ports (RJ45 + SFP): 2 x combo on ports g17, g18
Status LEDs System (blue), Link/Act/PoE (green/green)
DRAM 128 MB
Power Input 100-240 V, 50-60 Hz, (2.5 A max)
Power Dedicated to PoE+ 125
Number of PoE+ (RJ-45) Ports 16
Green Power Mode EEE+, Short Reach + Energy Detect
Power Consumption System Power Consumption without PoE+
110 V: 19.47 W
220 V: 19.39 W
Forwarding Rate 26.79 Mpps
Switching Capacity 36 Gbps
MAC Address 8 K
Jumbo Frame 9 K (FE, GE)
Fans 1 x 8,200 rpm fan
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 90% RH
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 10 to 90% RH (non-condensing)

Software Specifications
Number of VLANs 128 active VLANs (4,096 range)
VLAN Port-based and 802.1q tag-based VLANs
Management VLAN
Guest VLAN support
Dynamic VLAN assignment via Radius server with 802.1x client authentication
HOL Blocking Head of line (HOL) blocking prevention
Web User Interface Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)
SNMP Version 1 and 2c
Firmware Upgrade Web browser upgrade (HTTP) and TFTP
Port Mirroring Traffic on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer
RMON Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Other Management Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
Security 802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports limited dynamic lock and locked MAC address, management access control
Link Aggregation IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
Storm Control Broadcast, flooding, and multicast
Spanning Tree IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
IGMP Snooping IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
QoS Priority Levels 4 hardware queues
Scheduling Priority queuing and weighted round robin (WRR)
Class of Service Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Auto Voice LAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Standards 802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x Flow Control, 802.3ad, 802.1d STP, 802.1q/p VLAN, 802.1x Port Access Authentication, 802.3af PoE, 802.3at PoE+, 802.3az Energy Efficient Ethernet

Dimensions & Weight
Dimensions 17.3 x 7.9 x 1.7" / 440 x 200 x 44 mm
Weight 6.12 lb / 2.784 kg

Packaging Info
Package Weight 7.95 lb
Box Dimensions (LxWxH) 19.6 x 11.8 x 3.5"
BrandLinksys
Warranty1 Year Manufacturer
Shipping24 - 48 hrs
