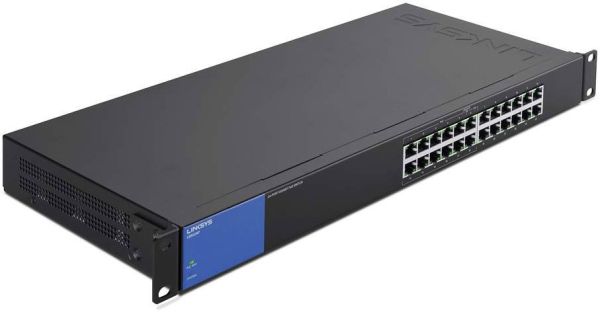

Linksys LGS124P-24 Port Gigabit Ethernet PoE+ Unmanaged Switch

SKU
N64741
Linksys
Rs 46,999.00
In stock
GIGABIT PERFORMANCE

Minimize transfer times and stream high-bandwidth files to connected devices without interference.

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device.

INTEGRATED POWER OVER ETHERNET PLUS (POE+)

Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.

TECHNICAL SPECS

Model Name:
LGS124P

Network Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3az

IEEE 802.3af

802.3at (PoE+)

Ports:
24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W

LEDs:
Link, speed, activity, and PoE indicators

Performance:

Full line rate and forwarding rate of 64B frame at:

1.488 Mpps for 1000M port

0.1488 Mpps for 100M port

0.01488 Mpps for 10M port

MAC Address Table Size:
8,000 entries

Bandwidth:
48 Gbps (non-blocking)

Fans:
One

Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables.

Dimensions (LxWxH):
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)

Weight:
2.758 kg (6.08 lbs)

Power Consumption:
7.79 W / 17.65 W

Power Input:
100–240 VAC, 50/60 Hz

Power Saving:
Cable connected detection, sleep mode

Power Supply:
Internal

Operating Temperature:
0–50°C (32–122°F)

Storage Temperature:
-40–70°C (-40–158°F)

Operating Humidity:
10–90% (non-condensing)

Storage Humidity:
10–90% (non-condensing)

Mounting:
Rack

Quality Of Service:
802.1p and DSCP

Regulatory Compliance:
FCC Class A, CE, UL, CB

Warranty and Support:
Limited Lifetime

BrandLinksys
Warranty7 Day Replacement
Shipping24 - 48 hrs
