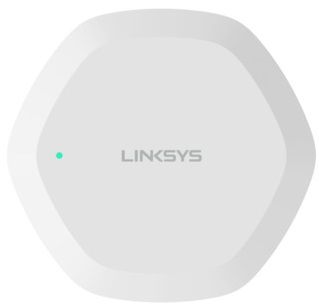

Linksys Cloud Managed AC1300 WiFi 5 Indoor Wireless Access Point

FEATURES

REMOTELY MANAGE YOUR ACCESS POINTS THROUGH THE CLOUD

The Linksys LAPAC1300C AC1300 WiFi 5 MU-MIMO Cloud Managed Wireless Access Point is an 802.11AC Wave 2 Dual-Band WiFi Access Point (2.4GHz + 5GHz) designed with 2x2 internal antennas for 1300 Mbps* total WiFi speed. Perfect for businesses of all sizes, every cloud access point comes with free cloud management so you can have access to an enterprise-class cloud-native management solution without the recurring fees. Zero Touch Provisioning reduces the need for on-site installation/configuration, saving you time and travel costs. With Linksys Cloud Manager 2.0, you get instant scalability with no limit to the number of networks and devices you can manage.

MAIN FEATURES



1 Gigabit Ethernet Uplink Port

802.3af PoE and 802.3at PoE+ Compliant

Limited Lifetime Cloud Management

8 Wireless SSIDs

WPA2 PSK/Enterprise

802.11k/r/v for Seamless Client Roaming

Cloud Hosted Captive Portal Splash Page

DHCP/NAT Mode + Wired LAN Isolation for Network Segmentation

Bandwidth Limit per SSID and per Client

Batch Remote Firmware Upgrade

Two-Factor Authentication for Cloud Account Login



BENEFITS



Deploy anywhere with PoE/PoE+ support for data and power

Save costs using cloud management without recurring license fees

Reduce time on-site with Zero Touch Provisioning

Dedicated business support from CCNA certified technicians

CLOUD-NATIVE CENTRALIZED MANAGEMENT

All of our cloud managed access points can be configured remotely or with Zero Touch Provisioning using our Cloud-Native management portal. Powered by AWS Microservices, our cloud communication is secure, lightweight and extremely fast compared to outdated server or controller architectures. With Linksys Cloud Manager 2.0, you get instant scalability with no limit to the number of networks and devices you can manage.

CLOUD HOSTED CAPTIVE PORTAL FOR SECURE GUEST WIFI ACCESS

Traditional captive portals are hosted in the local device with extremely limited space for graphics, logos and text. Linksys Cloud Manager 2.0 does it better with a built-in captive portal editor that allows you to upload logos and graphics of any size, so the only limit is your imagination. Easily create a terms of service agreement or lock WiFi access with an extra passcode, at no additional cost.

POE+ FOR STREAMLINED INSTALLATION

Thanks to Power over Ethernet support (802.3af PoE or 802.3at PoE+), the LAPAC1300C can draw both power and data from a single Ethernet cable. This allows you to mount on a ceiling, wall, or pole easily without having to source an AC outlet. This also eliminates a separate power adapter, reducing waste and saving the environment.

TECHNICAL SPECS



Model Name:

LAPAC1300C

Network Standards:

IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.3, 802.3u, and 802.3at

Radio Frequency Bands:
2.4GHz and 5GHz (Concurrent)

Ports:

1 x Gigabit LAN Port with IEEE 802.3at PoE+

1 x 12V/1A Power Port

LEDs:
1 x System LED

Buttons:
Reset Button

MIMO:
2x2

Antenna Type:
Internal Antennas

Radio Frequency Channels:

2.412 to 2.462 GHz: 11 channels

5.180 to 5.240 GHz: 4 channels

5.745 to 5.825 GHz: 5 channels

Maximum Power Consumption:
9.88W

Dimensions (LxWxH):

174.2 x 165.6 x 35.2 mm

(6.86 x 6.52 x 1.37 in)





Weight:
310g (0.68 lbs)

Operating Temperature:
0° to 40°C (32° to 104°F)

Storage Temperature:
-20° to 70°C (-4° to 158°F)

Operating Humidity:
0% to 90% (Non-Condensing)

Storage Humidity:
0% to 90% (Non-Condensing)

Mounting:

Wall

Ceiling

Security Features:

Multiple SSIDs (8)

SSID Broadcast/Hidden

SSID to VLAN Mapping (8)

Wi-Fi Protected Access (WPA/WPA Mixed, WPA2) Personal and Enterprise

Wireless Client Isolation

DHCP NAT Mode per SSID

Wired LAN Isolation

Two-Factor Authentication for Cloud Account Login

Quality Of Service:

WMM

Bandwidth Management per SSID

Regulatory Compliance:
FCC, CE

Event Notification:
Remote Syslog and Email Alert
