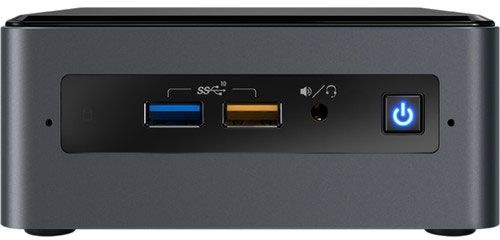

Intel NUC 8 Mini PC NUC8i5BEHFA

Product Collection

Intel® NUC Mini PC with 8th Generation Intel® Core™ Processors

Supported Operating SystemsWindows 10, 64-bit*

Board NumberNUC8BEB

Board Form FactorUCFF (4" x 4")

SocketSoldered-down BGA

Internal Drive Form FactorM.2 and 2.5" Drive

# of Internal Drives Supported2

Lithography14 nm

TDP28 W

DC Input Voltage Supported12-19 VDC

Pre-Installed Operating SystemWindows 10, 64-bit*

Processor Included

Intel® Core™ i5-8259U Processor (6M Cache, up to 3.80 GHz)

Intel vPro® Platform Eligibility ^‡No

of Cores4

of Threads8

Processor Base Frequency2.30 GHz

Max Turbo Frequency3.80 GHz

Supplemental Information

Embedded Options AvailableNo

Datasheet

DescriptionOther features: 16GB Intel® Optane™ Memory M.2 module pre-installed, 1TB HDD, Windows® 10 x64 Home, includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones

Product Brief

Memory & Storage

Included Storage16GB Intel® Optane™ Memory, 1TB HDD

Included Memory16GB Intel® Optane™ Memory + 1x 4GB DDR4-2400

Max Memory Size (dependent on memory type)32 GB

Memory TypesDDR4-2400 1.2V SO-DIMM

Max # of Memory Channels2

Max Memory Bandwidth38.4 GB/s

Max # of DIMMs2

ECC Memory Supported ^‡No

Processor Graphics

Processor Graphics ^‡Intel® Iris® Plus Graphics 655

Integrated Graphics ^‡Yes

Graphics OutputHDMI 2.0a; USB-C (DP1.2)

# of Displays Supported ^‡3

Expansion Options

PCI Express RevisionGen3

PCI Express Configurations ^‡M.2 slot with PCIe X4 lanes

Removable Memory Card SlotmicroSDXC with UHS-I support

M.2 Card Slot (storage)22x42/80

I/O Specifications

# of USB Ports6

USB Configuration2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers

USB Revision2.0, 3.1 Gen2

USB 2.0 Configuration (External + Internal)0 + 2

USB 3.0 Configuration (External + Internal)2B 2F + 0

Total # of SATA Ports2

Max # of SATA 6.0 Gb/s Ports2

Audio (back channel + front channel)7.1 digital (HDMI mDP); L+R mic (F)

Integrated LANIntel® Ethernet Connection I219-V

Integrated Wireless^‡Intel® Wireless-AC 9560 + Bluetooth 5.0

Integrated BluetoothYes

Consumer Infrared Rx SensorYes

Additional HeadersCEC, 2x USB2.0, FRONT_PANEL

# of Thunderbolt™ Ports1x Thunderbolt™ 3
