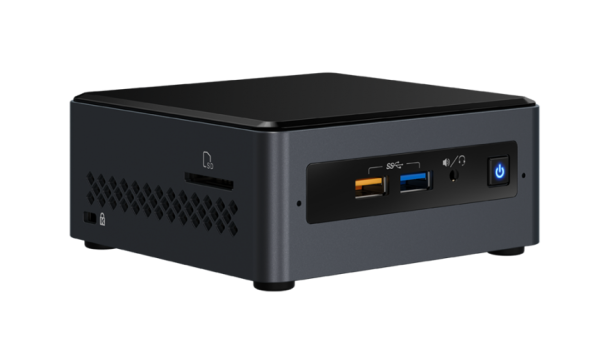

Intel NUC 7 Essential Mini PC NUC7CJYSAL

SKU
A49375
Intel
Rs 55,999.00
In stock
Product Collection

Intel® NUC Mini PC with Intel® Celeron® Processors

Supported Operating Systems

Windows 10, 64-bit*

Board Number

NUC7JYB

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor
2.5" Drive

# of Internal Drives Supported
1

Embedded Storage

32 GB

Lithography

14 nm

TDP

10 W

DC Input Voltage Supported
12-19 VDC

Pre-Installed Operating System

Windows 10, 64-bit

Processor Included

Intel® Celeron® J4005 Processor (4M Cache, up to 2.70 GHz)

Intel vPro® Platform Eligibility
No

Processor Base Frequency
2.00 GHz

Supplemental Information

Embedded Options Available
No
Description
Other features: 4GB DDR4 SO-DIMM; 32GB eMMC on-board; Windows® 10, 64-bit Home pre-installed. Includes SDXC card slot, dual microphones
Product Brief

Memory & Storage

Included Storage
32GB eMMC
Included Memory
1x 4GB DDR4 RAM
Max Memory Size (dependent on memory type)
8 GB
Memory Types
DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels
2
Max Memory Bandwidth
38.4 GB/s
Max # of DIMMs
2
ECC Memory Supported
No

Processor Graphics

Processor Graphics
Intel® UHD Graphics 600
Integrated Graphics
Yes
Graphics Output
2x HDMI 2.0a
# of Displays Supported
2

Expansion Options

Removable Memory Card Slot
SDXC with UHS-I support

Specifications

# of USB Ports
6
USB Configuration
2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision
2.0, 3.0
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total # of SATA Ports
1
Max # of SATA 6.0 Gb/s Ports
1
RAID Configuration
N/A
Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN
Realtek 8111H-CG
Integrated Wireless
Intel® Wireless-AC 9462 + Bluetooth 5.0
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL

Package Specifications

Chassis Dimensions
115 x 111 x 51mm

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro® Platform Eligibility
No
TPM
No
Intel® HD Audio Technology
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes

Security & Reliability

Intel® AES New Instructions
Yes
BrandIntel
Operating SystemWindows 10 Home
Hard Disk Capacity32GB eMMC
RAM4GB
RAM TypeDDR4
Processor TypeIntel Celeron
Processor Turbo2.7 GHz (Up to)
Processor Speed2.0 GHz
Processor Cache4 MB
Processor ModelJ4005
GraphicsIntel Integrated Graphics
Graphics DetailIntel UHD Graphics 620
Video MemoryShared
Optical DriveNo Optical Drive
WarrantyCheck at Delivery
ShippingSame Day From Lahore
