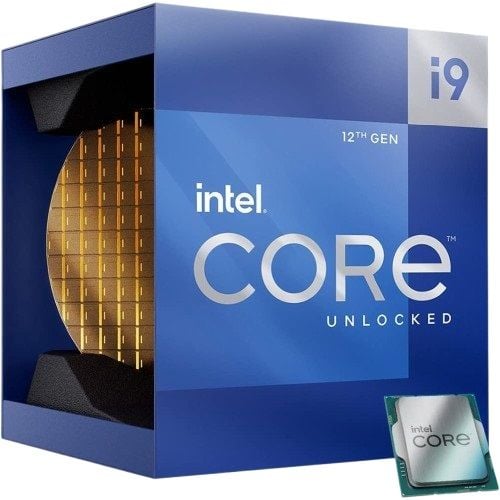

Intel Core i9-12900K 5.20GHz 16-Core Processor

SKU
S69422
Intel
Rs 104,999.00
In stock
12th Generation Intel® Core™ i9 Processors
Desktop
i9-12900K

16 Cores - 24 Threads
Turbo Frequency: 5.2 GHz
Unlocked Processor
LGA 1700 Socket
Intel Core i9-12900K 5.20GHz 16-Core Processor

Intel Core i9-12900K

Power up your productivity, gaming, and content creation experiences by installing the Intel Core i9-12900K 3.2 GHz 16-Core LGA 1700 Processor into your desktop computer system. Especially built using a Hybrid Core architecture with the Intel 7 process. Additionally this 12th generation desktop processor’s 16 cores combine the performance of eight Efficient-cores and eight 3.2 GHz Performance-cores. The low-voltage Efficient-cores handle background tasks for multitasking while the Performance-cores provide speed for demanding applications and games.

The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time to maximize performance. Additionally, this processor has a 5.2 GHz Turbo Boost Max 3.0 frequency with 30MB of cache for fast and reliable performance. The Core i9-12900K also includes support for up to PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz to help run and multitask a variety of demanding applications. You can overclock this processor for even greater performance.

The Core i9-12900K features integrated Intel UHD 770 Graphics. Please note that a thermal solution is NOT included.

Hybrid Core Design

Background tasks are handled by the processor’s Efficient-cores for multitasking while the Performance-cores provide the speed to handle high-end games and demanding applications.

Intel Thread Director

The Intel Thread Director is built into the CPU’s cores, working with the operating system to ensure each of the 24 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Integrated Graphics

Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Product Collection 12th Generation Intel® Core™ i9 Processors

Code Name Products formerly Alder Lake

Intel Core i9-12900K

Vertical Segment Desktop

Processor Number i9-12900K

Status Launched

Launch Date Q4’21

Lithography Intel 7

Use Conditions PC/Client/Tablet

Intel Core i9-12900K:CPU Specifications

Total Cores 16

# of Performance-cores 8

# of Efficient-cores 8

Total Threads 24

Max Turbo Frequency 5.20 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency  5.20 GHz

Performance-core Max Turbo Frequency 5.10 GHz

Efficient-core Max Turbo Frequency 3.90 GHz

Performance-core Base Frequency 3.20 GHz

Efficient-core Base Frequency 2.40 GHz

Cache 30 MB Intel® Smart Cache

Total L2 Cache 14 MB

Processor Base Power 125 W

Maximum Turbo Power 241 W

Supplemental Information for Intel Core i9-12900K

Embedded Options Available No

Datasheet View now

Memory Specifications

Max Memory Size (dependent on memory type) 128 GB

Memory Types Up to DDR5 4800 MT/s

Up to DDR4 3200 MT/s

Max # of Memory Channels 2

Max Memory Bandwidth 76.8 GB/s

Processor Graphics

Processor Graphics  Intel® UHD Graphics 770

Graphics Base Frequency 300 MHz

Graphics Max Dynamic Frequency 1.55 GHz

Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units 32

Max Resolution (HDMI) 4096 x 2160 @ 60Hz

Max Resolution (DP)‡ 7680 x 4320 @ 60Hz

Max Resolution (eDP – Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz

DirectX* Support 12

OpenGL* Support 4.5

Multi-Format Codec Engines 2

Intel® Quick Sync Video Yes

Intel® Clear Video HD Technology Yes

# of Displays Supported  4

Device ID 0x4680

OpenCL* Support 2.1

Expansion Options

Direct Media Interface (DMI) Revision 4.0

Max # of DMI Lanes 8

Scalability 1S Only

Intel Core i9-12900K

PCI Express Revision 5.0 and 4.0

PCI Express Configurations  Up to 1×16+4, 2×8+4

Max # of PCI Express Lanes 20

Package Specifications for Intel Core i9-12900K

Sockets Supported FCLGA1700

Max CPU Configuration 1

Thermal Solution Specification PCG 2020A

TJUNCTION 100°C

Package Size 45.0 mm x 37.5 mm

Security & Reliability with the Intel Core i9-12900K

Intel® AES New Instructions Yes

Secure Key Yes

Intel® OS Guard Yes

Execute Disable Bit  Yes

Intel® Boot Guard Yes

Mode-based Execute Control (MBEC) Yes

Intel® Control-Flow Enforcement Technology Yes
BrandIntel
Processor TypeIntel Core i9
Warranty1 Year Manufacturer
ShippingSame Day From Lahore
