Overview

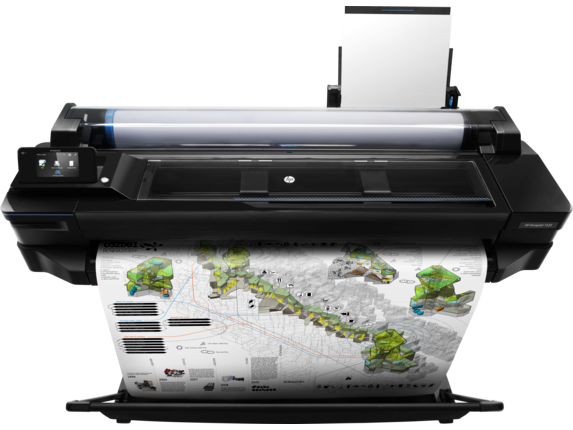

Designed to fit your office—and the way you work—this compact printer makes it easy to print architectural designs, maps, photos, and presentations with sharp detail up to 2400 dpi. Print easily from a smartphone or tablet with HP Mobile Printing.
Small AEC teams who need to print large-format documents and CAD drawings, print remotely, and network a small office.
OFFICE-READY—Fits the way you work
Achieve accurate lines, sharp details up to 2400 dpi from the first print with a long-life printhead.The professional look and feel of this printer is designed to complement your workplace.Produce a range of applications including architectural designs, maps, photos, and presentations.Take advantage of the most affordable, compact 36-inch HP DesignJet Printer.
EASY—Convenient printing
Easily print project sets and PDF documents with HP Click printing software.Move this printer any time, any place—with Wi-Fi connectivity, all you need is a power plug. The intuitive, full-color touchscreen simplifies navigation and printing.Easily set up your printer and connect everyone in your workgroup, thanks to built-in Wi-Fi.
TRUSTED—HP DesignJet quality and reliability
Get HP DesignJet quality in small-format sizes—print half-size technical documents with the A4/A3 input tray.Access and print projects when you're away from your work place, using HP Designjet ePrint & Share. [1]Join the hundreds of thousands of users who trust HP DesignJet T520 Printers for outstanding print quality. [3]Email projects to your HP Designjet T520 ePrinter and print, via its Web connectivity features. [1]
specifications
Product information
Functions
Mechanical print time, b&w line drawing, draft mode, plain
70 D prints per hour
Mechanical print time, line drawing, economode, plain
Resolution (black)
Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected
Resolution (color)
Up to 2400 x 1200 optimized dpi
Print Technology
HP Thermal Inkjet
Number of print cartridges
4 (cyan, magenta, yellow, black)
Compatible ink types
Dye-based (C, M, Y); pigment-based (K)
Print languages
HP-GL/2, HP-RTL, JPEG, CALS G4
Mobile Printing Capability
Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android.
Connectivity, standard
Fast Ethernet (100Base-T); Hi-Speed USB 2.0 certified; Wi-Fi
Connectivity, optional
Compatible HP Jetdirect print servers
Network ready
Standard
Minimum system requirements
Mac OS X v 10.6: Mac computer with Intel® Core™ Processor; 1 GB RAM; 2 GB available hard disk space
Microsoft® Windows® 7: 32-bit (x86) or 64-bit (x64) processor (1 GHz); 1 GB RAM (32-bit) or 2 GB RAM (64-bit); 1 GB available hard disk space; Windows Vista® Ultimate/Business/Home Premium: 32-bit (x86) or 64-bit (x64) processor (1 GHz); 1 GB RAM; 1 GB available hard disk space; Windows® XP Professional/Home (SP3 or higher): Intel® Pentium® family or AMD K6™/Athlon™/Duron™ family (1 GHz); 512 MB RAM; 1 GB available hard disk space
Compatible operating systems
Microsoft Windows 7 Ultimate/Professional/Home Premium, Windows Vista Ultimate/Business/Home Premium, Windows XP (32-bit, 64-bit) Professional/Home, Windows Server 2008 (32-bit, 64-bit), Windows Server 2008 R2, Windows Server 2003 (32-bit, 64-bit); Mac OS X v 10.6, v 10.7, v 10.8; Citrix XenApp; Citrix XenServer
Memory, standard
1 GB
Memory, maximum
1 GB
Print speed, color (draft)
Mechanical printing time.
Hard disk
None
Non-printable area (cut-sheet)
0.2 x 0.67 x 0.2 x 0.2 in
Guaranteed minimum line width
0.0028 in (ISO/IEC 13660:2001(E)
Line accuracy
±0.1%
Maximum optical density (black)
8 L* min/2.10 D
Finished output handling
Sheet feed; roll feed; input tray; media bin; automatic cutter
Media sizes supported
Input tray: A4, A3; manual feed: A2, A1, A0
Media sizes, custom
Input tray: 8.3 x 11 to 13 x 19 in; manual feed: 13 x 19 to 36 x 74.7 in; roll: 11 to 36 in
Media types
Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Media sizes, standard
8.3 to 36-in wide sheets; 11 to 36-in rolls
Roll maximum output
150 ft
Roll external diameter
3.9 in
Media thickness
Up to 11.8 mil
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption
< 35 watts (printing), < 0.3 watts (standby)
Operating temperature range
41 to 104ºF
Dimensions (W X D X H)
50.9 x 20.9 x 36.7 in
Weight
86.4 lb
Package weight
136.7 lb
What's in the box
HP DesignJet T520 36-in Printer; printhead; introductory ink cartridges; printer stand; quick reference guide; setup poster; startup software; power cord
Warranty
One-year limited hardware warranty
Software included
HP Click, HP DesignJet Utility for Mac and Windows
Mechanical print time, US D color image, best mode, glossy
11.4 min/page
Mechanical print time, US D color image, normal mode, glossy
9.1 min/page
Mechanical print time, US D color image, draft mode, coated
1.1 min/page
Mechanical print time, US D color image, normal mode, coated
3.8 min/page
Mechanical print time, color line drawing, draft mode, plain
35 sec/page
US D color line drawings/hr, draft mode, plain
70 D prints per hour
| Brand | HP |
|---|---|
| Warranty | 1 Year Manufacturer |
| Printer Type | Thermal |
| Scane Type | No |
| Wi-Fi | Yes |
| Air Print | No |
| A3 | No |
| LAN | Yes |
| Print Speed Black | 70 D prints per hour |
| Print Speed Color | 70 D prints per hour |
| Shipping | Same Day From Lahore |
