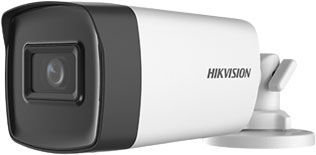

Hikvision DS-2CE17H0T-IT5F 5 MP Fixed Bullet Camera
SKU
U60875
Category: CCTV
Special Offers
Samsung Galaxy A34 5G 8GB 256GB
Special Price Rs 94,999.00 was Rs 114,999.00
Vivo V30 5G 12GB 256GB
Special Price Rs 127,999.00 was Rs 139,999.00
HP Pavilion 15 EH3050AU AMD Ryzen 7 7730U 16GB 1TB SSD
Special Price Rs 201,999.00 was Rs 237,999.00
Realme Note 50 4GB 64GB
Special Price Rs 22,999.00 was Rs 25,999.00
Tecno Spark 20 Pro Plus 8GB 256GB
Special Price Rs 53,499.00 was Rs 59,999.00
Lenovo IdeaPad 1 15AMN7 AMD Ryzen 5 7520U 8GB 512GB SSD
Special Price Rs 111,999.00 was Rs 129,999.00
Camera
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Focal Length & FOV
Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame Rate
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
Noise ReductionYes
White BalanceAuto/Manual
AGCYes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Material
Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
WeightApprox. 330 g (0.73 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%
Consumption
ProtectionIP67
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Focal Length & FOV
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°
8 mm, horizontal FOV: 41°, vertical FOV: 31°, diagonal FOV:52°
12 mm, horizontal FOV: 26°, vertical FOV: 19°, diagonal FOV:32°
Lens MountM12Image
Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
Noise ReductionYes
White BalanceAuto/Manual
AGCYes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Material
Front Cover: Metal
Main Body: Plastic
Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
WeightApprox. 330 g (0.73 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%
Consumption
Max. 5 W
IR RangeUp to 80 m
ApprovalProtectionIP67
| Brand | Hikvision |
|---|---|
| Warranty | 7 Day Replacement |
| Shipping | Same Day From Lahore |
