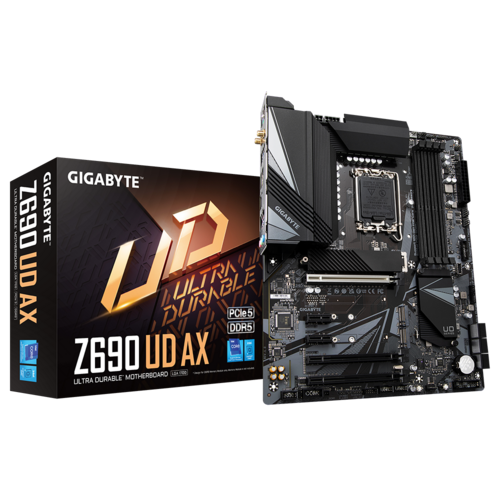

Gigabyte GB M/B Z690 UD AX 1.2 MotherBoard
Intel® Z690 Motherboard with Direct 16+1+2 Phases Digital VRM Design, DDR5 MEMORY, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI6 802.11ax, Rear USB 3.2 Gen 2x2 Type-C®, Q-Flash Plus
Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
DDR5 MEMORY Design
Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor
Ultra Performance VRM Heatsinks
Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
Fast 2.5GbE LAN with Bandwidth Management
3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0, supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Power Stage maximum current capacity is based on VCORE Phase.
OVERVIEW
PERFORMANCE
DDR5
THERMAL
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
WIFI 6 802.11ax 2T2R & BT 5 with AERO Antenna
DisplayPort
HDMI
Rear USB 3.2 Gen2x2 Type-C®
2.5 GbE LAN
Advanced Thermal Design
Fully Covered MOSFET Heatsinks
5 W/mK Thermal Conductivity Pad
Integrated IO Shield
Next Generation PCIe 5.0 Design
1*PCIe 5.0 x16 SMD Slot
Ultra Durable™ SMD PCIe 5.0 Armor
Audio Solution
8-ch HD Audio
Audio Noise Guard
High-End Audio Capacitors
RGB FUSION 2.0
Addressable LED Header*2
RGB LED Header*2
Solid Pin Power Connectors
8+4 pin CPU Power Connector
16+1+2 Direct Digital VRM Design
60A Power Stage
6-Layer PCB PCIe 5.0 Ready PCB
Premium Choke and Capacitor
2X Copper PCB
Supports 12th Gen. Intel Core™ Processors
Dual Channel DDR5
Front USB3.2 Type-C® for Connecting Devices
3* M.2 Connectors
PCIe 4.0 x4 NVMe support
1* Thermal Guard
6*SATA 6Gb/s
Q-FLASH Plus Onboard Button
| Brand | Gigabyte |
|---|---|
| Warranty | 1 Year Manufacturer |
| Shipping | Same Day From Lahore |
