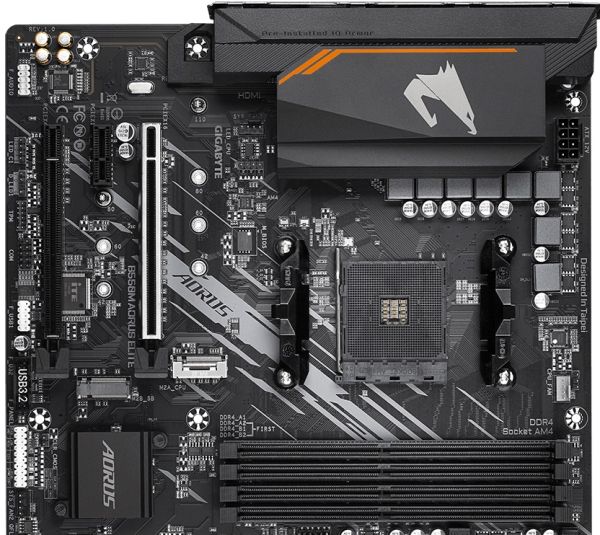

Gigabyte B550M Aorus Elite AMD 1.0 Motherboard

SKU
U61986
main product photo
Gigabyte
Rs 40,999.00
In stock
Notify me when the price drops
Category: Motherboard

Fast Delivery
Same Day in Lahore

7 Days Replacement
If goods have problems

Secure Payment
100% secure payment

24/7 Support
Dedicated support

Special Offers

Samsung Galaxy A34 5G 8GB 256GB

Samsung Galaxy A34 5G 8GB 256GB

Special Price Rs 94,999.00 was Rs 114,999.00
Vivo V30 5G 12GB 256GB

Vivo V30 5G 12GB 256GB

Special Price Rs 127,999.00 was Rs 139,999.00
HP Pavilion 15 EH3050AU AMD Ryzen 7 7730U 16GB 1TB SSD

HP Pavilion 15 EH3050AU AMD Ryzen 7 7730U 16GB 1TB SSD

Special Price Rs 201,999.00 was Rs 237,999.00
Realme Note 50 4GB 64GB

Realme Note 50 4GB 64GB

Special Price Rs 22,999.00 was Rs 25,999.00
Tecno Spark 20 Pro Plus 8GB 256GB

Tecno Spark 20 Pro Plus 8GB 256GB

Special Price Rs 53,499.00 was Rs 59,999.00
Lenovo IdeaPad 1 15AMN7 AMD Ryzen 5 7520U 8GB 512GB SSD

Lenovo IdeaPad 1 15AMN7 AMD Ryzen 5 7520U 8GB 512GB SSD

Special Price Rs 111,999.00 was Rs 129,999.00

LIGHTING


AUDIO


ULTRA DURABLE


GIGABYTE EXCELLENCE

Solid Pin Power Connector
DVI
HDMI
Realtek GbE LAN
Ultra Durable PCIe Slot
  1. PCIe® 4.0 Slot
  2. Running 1* x16
Audio Noise Guard
High-End Audio Capacitors
RGB FUSION 2.0
  1. Addressable LED Header*2
  2. RGB LED Header*3
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Enlarged MOSFET Heatsink
Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel DDR4, 4 DIMMs
Dual M.2 Connectors
1. 22110 M.2
  1. PCIe 4.0 M.2 Connector
  2. NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
2. 2280 M.2
  1. NVMe PCIe 3.0 x2 and SATA Mode (from Chipset)
Q-Flash Plus Button
Smart Fan 5 + FAN STOP
  1. 3 Fan Connectors
  2. 5 Temperature Sensors
AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

PERFORMANCE
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.


Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.

PCIe 4.0* Hardware Design
PCIe 4.0 Slot
PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with Lower impedance.
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
CONNECTIVITY
Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

*Actual support may vary by CPU.




Realtek GbE LAN with Bandwidth Management
Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support













HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.



Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.
Learn more about PERFORMANCE
COOLING
Enlarged MOSFET Heatsink

Enlarged MOSFET Heatsink ensures lower temperature.

Pre-installed IO Shield for easier assembly.


Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.



Fan Connectors

Internal Temperature Sensors

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Temperature Sensors


Hybrid Fan Headers


■ 5 Temperature Sensors
■ 3 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control

FAN STOP

Hybrid FAN Header
Smart Fan 5 Software

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Intelligent Fan Control Design


LIGHTING
RGB FUSION 2.0
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.

With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

* The external RGB LED strips and Addressable LED strips are not included with Motherboard purchase.













RGB Fusion 2.0 Software
RGB Fusion APP


With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Sync with one click


Individual control as you wish

AUDIO

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
ULTRA DURABLE
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.





GIGABYTE Patented Double Locking Bracket

Solid Pin Power Connectors

B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.



Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

GIGABYTE EXCELLENCE
GIGABYTE BIOS & Applications
BIOS
APP CENTER
EasyTune
@BIOS
System Information Viewer
BIOS


New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.




XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

BrandGigabyte
Warranty1 Year Manufacturer
ShippingSame Day From Lahore
