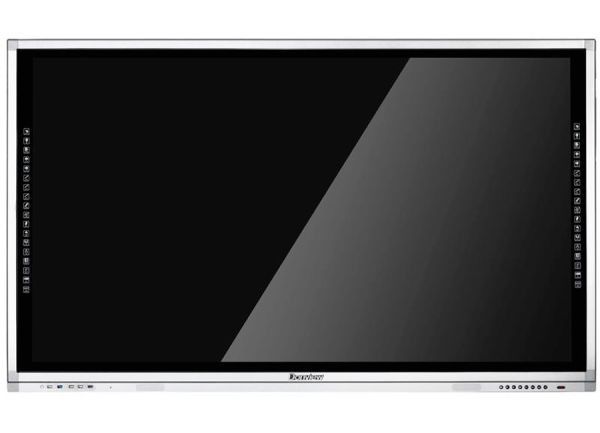

Donview DS-98 smart interactive Screen IWMS-L02PA is the perfect choice for modern classrooms, effectively supporting online learning, online, or meeting… With built-in smart features suitable, eye protection design for maximum work efficiency. Supports 4K resolution and is protected by anti-reflective glass, which is resistant to scratches and dust.
Donview DS-98 IWMS-L02PA Smart Interactive Display Specifications
Backlight: LED
Resolution: 3840 x 2160
Brightness: 500 nits
Contrast: 1300:1
Customizable contrast: 50,000:1
Tempered jack: Anti-glare function AG, anti-scratch thickness 4mm, bearing Mhos 7
Speaker: 18W*2
Lifespan (MTBF): 120,000H
Touch technology: IR
Touch point: Multi-touch, 32 touch points, 20 people writing at the same time
Use a pen or by hand
Allows connecting wireless presentations with Ipad, smartphone, tablet, iphone
Touch object: 1mm touch object, response time, speed, single touch <4-5ms, multi-touch<7ms
Connectors: HDMI*1;TOUCH USB2.0*1; Public Type C*1; Public USB3.0*3
Rear connector: HDMI*3 (1 HDMI used for OPS inside); VGA*1; USB Touch 1:( Type A USB)*1, and extender *3; PC audio*1, AV*1, RS232*1, RJ45*1, android USB2.0*1, Public USB3.0*2
Output connector: HDMI*1( 4K); RJ45*1 (optional extra)
Android 8.0 OS, CPU: Cortex A73*2+A53*2, GPU: Mali G51*4 1.5GHz, RAM: DDR4 4G 240MHz, ROM: 32GB
Supports direct reading of file formats: JPEG, BMB, PNG images
Video: MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, MJPEG, VC1, Divx, FLV
Audio: WMA, MP3, M4A..
Word, Excel, PPT files.
Wi-Fi connection: IEEE 802.11b/g/n/ac 2.4GHz +5GHz
AC input: 100-240V/50Hz-60Hz, DC output 19V/6.8A
Size: 2311*1351*121
Size: 2311*1351*159 (with mount)
Packing size: 2507*450*1670
Net weight: 159kg
Packing weight: 219kg
Outstanding advantages of Donview DS-98 interactive screen IWMS-L02PA
Modern, smart design
Designed in a luxurious style to bring a modern touch to your space. Equipped with high temperature sensors and automatic shutdown. Power saving mode allows you to turn the screen on and off with the touch of a button. The display is controlled by the control panel. You can lock the screen.
Easy to manage
The control panel can be controlled from a smartphone, tablet, computer or laptop. Images and other files can be uploaded to the dashboard from the same device.
Two operating systems
The display can be switched between two operating systems – Windows and Android at the touch of a button. Both systems recognize multiple touches at the same time, support comments and save content.
Durable operation, optimal energy saving
Touch screen with anti-glare, anti-explosion, waterproof, dustproof, anti-light interference, low consumption, no radiation, and has optimal energy-saving features to ensure a long service life long.
Multifunction
Donview software, specially created for educational purposes, is equipped with many functions that make the learning process intuitive and enjoyable.
Software for composing interactive lectures
The software provides an image library of up to 7000 application images for lectures for subjects.Experimental video app in physics: including 17 physics science apps
App video experiments in chemistry: including 25 apps for Chemistry lessons
Experimental video app in Biology: includes 21 lesson apps for Biology
Donview software provides a function that allows inserting and editing contents for objects, such as writing or opening objects first, including full functions such as for objects: delete selection, overlap selection, duplicate, cut, paste, duplicate, delete, redo, undo, lock, unlock, mirror, add header, level (level), group, ungroup (detach from group), hide, show, export as image file, view operation
