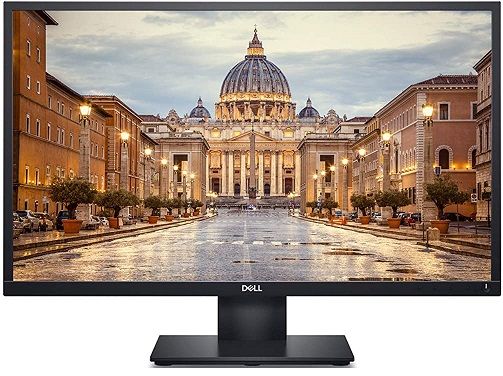

Dell E2420H 23.8 Inch FHD (1920 x 1080) LED Backlight LCD IPS Monitor

Features & Design

All the essentials, and then some

Maximize your workspace:

 A thin profile¹ and improved cable management create a smaller footprint, lending itself to a clean, uncluttered desk.

Enhanced views:

The Full HD resolution is ideal for everyday tasks, while ComfortView is ready for extended viewing periods. It reduces up to 60% of harmful blue light emissions.²

Versatile connections:

 Our E Series monitors accommodate legacy and non-legacy systems with convenient connectivity options like VGA and DP ports. Your workspace will be completely customized to your needs.

Adapts to your needs:

 Make your workspace your own with VESA-compatible mounts and stands.

Improved Dell Display Manager

Productive at every level:

Dell Display Manager’s (DDM) Easy Arrange feature lets you quickly tile and view your applications side by side across one or more connected screens for multitasking efficiency. And with the improved DDM, you’ll get even more preset layouts.

Seamless transitions:

 The auto-restore feature remembers where you left off, so applications will go back to where you left them, even after you’ve unplugged.

The key to convenience:

 Shortcut keys can save you even more time, letting you easily configure your display management settings so you can get to work faster.

More ways to manage:

 Asset management reports allow IT managers to quickly capture and track monitor information as well as configure multiple monitors at once through a single setup.

Eco-friendly inside and out

Guaranteed green:

Compliant with the latest Energy Star® standards, the E Series monitors meet stringent energy efficiency requirements while in sleep, on and off modes. They’re also TCO-certified.³

Energy reducing:

 Save energy with PowerNap, a feature that dims or puts the monitor to sleep when not in use.

Clean disposal:

 Composting or recycling the packaging is easy since it’s made with at least 25% of recycled cardboard.⁴

Ports & Slots:

1. Power Port | 2. DP Port 1.2 | 3. VGA Port

Cables Included

1 x Power cable
1 x DisplayPort cable

Display

Diagonal Viewing Size

60.47 cm  (23.8 inches)

Horizontal

527.04 mm  (20.75 inches)

Vertical

296.46 mm  (11.67 inches)

Panel Type

IPS (In-Plane Switching)

Display Screen Coating

Anti-Glare

Maximum Preset Resolution

1920 x 1080 at 60 Hz

Viewing Angle

178°/178°

Pixel Pitch

0.275 mm x 0.275 mm

Pixel Per Inch (PPI)

92

Contrast Ratio

1000:1 (typical)

Aspect Ratio
16:9

Backlight Technology

LED

Brightness

250 cd/m² (typical)

Response Time

8 ms typical (Normal) 5 ms typical (Fast) (gray to gray)

ComfortView with Flicker-free screen

Yes

Dell Display Manager Compatibility

Yes

Remote Asset Management

Yes, via Dell Command I Monitor

GSA/TAA

No

Optional Soundbar

AC511 - usb powered via PC
AE515 Skype for Business Certified

Connectivity

Connectors

1 X VGA
1 X DisplayPort 1.2

HDCP Support

DisplayPort HDCP 1.2

Security

Security lock slot (cable lock sold separately)

Dimensions & Weight

Dimensions (with stand)

Height

419.70 mm  (16.52 inches)

Width

550.60 mm (21.68 inches)

Depth

171.0 mm (6.73 inches)

Weight

Weight (panel only - for VESA mount/ no cables)

3.25 kg (7.17 lb)

Weight (monitor + cables)

4.27 kg (9.41 lb)

Weight (with packaging)

5.95 kg (13.12 lb)

Power

AC input voltage/frequency/current

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 0.8 A (typical)

Power Consumption (Operational)

15W (Typ). 22W (Max). 14.36W (Energy Star)

Power Consumption Stand by/Sleep

Less than 0.3W

Chassis

Adjustability

Tilt Only (-5° to 21°)

Standard Service Plan

3 Years Advanced Exchange Service and Limited Hardware Warranty

Optional Service Plan

Dell ProSupport

Color Support

Color gamut (typical): 83% (CIE1976) 72% (CIE1931)
Color depth: 16.7 Million

Flat Panel Mount Interface

VESA (100 mm)

Regulatory

What's in the Box

Components

Monitor with stand

Cables

Power cable
1 X DP Cable (DP to DP)
1 X VGA Cable (EMEA and Japan only)
1 X VESA screw cover

Documentation

Quick Setup Guide
Safety and regulatory information

Environmental Compliance

ENERGY STAR®, EPEAT® registered where applicable,  TCO Certified Display
