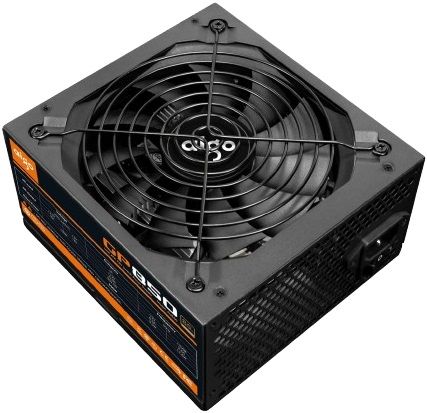

DarkFlash Aigo GP850 850W 80 Plus Bronze ATX PC Power Supply
SKU
S65656
Category: Power Supply
DarkFlash Aigo GP850 850W 80 Plus Bronze ATX PC Power Supply
Aigo GP850 850W ATX Power Supply / Non-Modular / 80 Plus Bronze
The Aigo GP850 power supply is designed to ensure a stable supply for your PC, optimizing the performance of its components. With a rated power of 850W and 80 Plus Bronze certification, it is ideal for high-end configurations. Its ATX form factor ensures compatibility with Intel and AMD platforms. In addition, its fan maintains a silent and efficient airflow, extending the life of the power supply, and ensuring optimal performance for your PC.
POWER: 850W
FORM FACTOR: ATX
MODULARITY: Non-Modular
EFFICIENCY: 80 Plus Bronze
FAN SPECIFICATIONS: 2200 RPM
POWER SPECIFICATIONS
Supports: 160 – 264V
PROTECTION: OVP / UVP / OCP / OPP / SCP / OTP
CONNECTORS: MB 24 Pin x 1 – CPU 4 + 4 Pin x 4 – PCIe E6 + 2 Pin x 4 – SATA x 6 – Ide 4 Pin x 3
COR: For that
FORM FACTOR: ATX
MODULARITY: Non-Modular
EFFICIENCY: 80 Plus Bronze
FAN SPECIFICATIONS: 2200 RPM
POWER SPECIFICATIONS
Supports: 160 – 264V
PROTECTION: OVP / UVP / OCP / OPP / SCP / OTP
CONNECTORS: MB 24 Pin x 1 – CPU 4 + 4 Pin x 4 – PCIe E6 + 2 Pin x 4 – SATA x 6 – Ide 4 Pin x 3
COR: For that
Aigo GP850 Active Power 80PLUS BRONZE Desktop Power Supply
Feature
Rated 850W, suitable for high-end computer configuration
Conforms to the Intel ATX12V specification design, supports Intel, AMD complete series of dual core platform
High efficiency energy-saving silent fan
High efficiency energy-saving silent fan
Built in PFC, double magnetic ring magnetic amplifier circuit, high frequency low resistance filter capacitor,
to ensure that the current is pure and stable output
to ensure that the current is pure and stable output
Adopt 12cm hydraulic bearing fan, mute and durable, large air flow
Intelligent temperature control circuit design, automatically adjust the fan speed, and extend the service life
Horn high capacity, large capacity, support wide use, in the unstable voltage environment can still be used
normally
Multi function protection circuit design, with overvoltage, overcurrent, overload, under voltage, short-circuit,
light protection functions
Innovative pest control technology design.
Specification
Power supply size: 160mm*150mm*85mm
Power standard: ATX 12V
For CPU range: AMD, Intel
PFC type: Active PFC
Rated power: 650W
Maximum power: 850W
Efficiency: 80%
Input voltage: 160V-264V
+ 3.3V output current 20A
+ 5V output current 15A
+ 12V1 output current 48A
– 12V output current 0.3A
+ 5Vsb output current 2.5A
Supports wide voltage: Yes
Support temperature control PWM: Yes
Authentication: CB, CCC, FCC, class, B, CE, ROHS
Product weight: 1900g
Support power supply: 20P/ 24P motherboard
Power output design: Multiplex +12V
IDE interface: 2
SATA interface: 4
CPU interface: P4+4
Video card interface: (6PIN+2)*2
