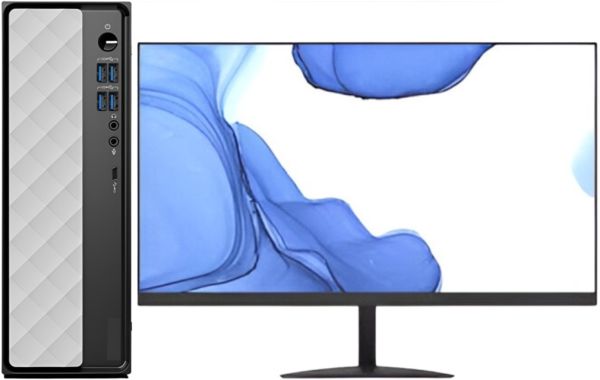

Dahua DHI-MCC8305 Desktop PC With DHI-LM22-A200Y 21.45'' FHD Monitor

Dahua DHI-MCC8305 Desktop PC With DHI-LM22-A200Y 21.45'' FHD Monitor



Technical Specification

Model

Model DHI-LM22-A200Y

Display

Screen Size 21.45"

Panel type VA

Aspect Ratio 16:9

Resolution 1920×1080 (FHD)

Backlight LED

Brightness/Luminance 250 cd/㎡(max)

Contrast 3000:1

Display Color 16.7M(8bit)

Viewing Angle(H/V) 178°(H)/178°(V)

Response time(typ.) OD 6ms

Refresh Rate 100Hz (max)

Signals

Input VGA×1, HDMI×1

Output NO

General

Power Supply DC 12V

Consumption (Standard) 22W

Consumption (Standby) ≤0.5W

Net Weight 2.05kg (4.51lb)

Gross Weight 2.86kg (6.29lb)

Bezel Width 3.3mm(U/R/L) 15.2mm(B)

Wall Mount 75x75mm (3.0"x3.0")

Dimension with stand (W×H×D) 492.7x284.0x48.4mm (20“x11.6”x1.9”)

Package(W×H×D) 598x99x366mm (24.4“x4.0”x14.9)

Work Environment

Temperature 0℃~40℃ (32°F~104°F)

Humidity 10%~85%

Accessory

Standard HDMI cable,Adapter,base

Certifications

Certifications TBD

_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________


Model

Internal Model DHI-MCC8305

General

Processor Intel Core i5 Processors(13th gen) i5-13500HX

Chipset Intel®HM770

Memoy 16GB DDR4 RAM

Storage 512GB PCIe® NVMe M.2 SSD

Graphics Intel UHD Graphics for 13th Gen Intel Processors

Operating system DOS (support Win10/11 pro)

Power 200W internal power supply

Technical Spec

Front ports 4 x USB3.2 Gen2 Type-A，1 x USB3.2 Gen2 Type-C，

Micphone×1，1 x φ 3.5mm MIC connector，1 x Power button

Back ports HDMI×1, DP×1, USB2.0 Type-A×4, RJ45×1, Line in×1,

Micphone×1,

Keyboard/Mouse Wired keyboard/mouse

Accessory User manual

Dimensions TBD

Form factor Tower

Connectivity

Others

Lan/Wifi Intel®AX210 Wifi 6E+Bluetooth5.3

0℃~40℃

Work Environment

Temperature (32°F~104°F)

Humidity 10%~85%

DVD NA
