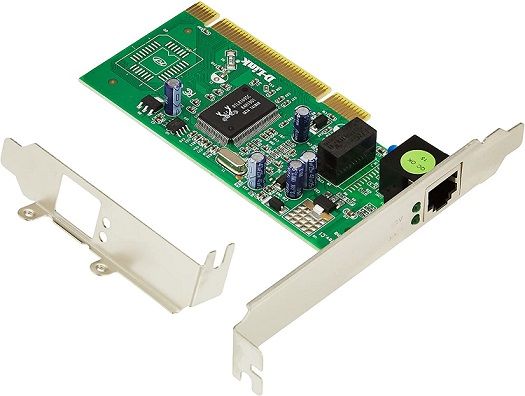

D-Link DGE-528T Copper Desktop Gigabit PCI Card para PC
SKU
A54172
Feature
Remote Management
The DGE-528T includes additional advanced features such as Advanced Power Management and Wake-on-LAN support. It also supports remote network boot using both PXE and RPL, allowing network administrators to boot the PC from anywhere on the network.
Versatility
The DGE-528T supports all major operating systems, guaranteeing compatibility with existing workstation and desktop environments. Its half-height form factor allows it to be used in low-profile cases for compact PCs. The card also has a diagnostic utility tool, simplifying troubleshooting.
Specifications
Topology |
Star |
|---|---|
Data Transfer Rate |
Gigabit Ethernet: Up to 2000 Mbps full duplex; Fast Ethernet: 100 Mbps half duplex, 200 Mbps full duplex; Ethernet: 10 Mbps half duplex, 20 Mbps full duplex |
Interface |
PCI half-height card suitable for low-profile cases |
Supported Functions |
7 KB Jumbo Frames, Wake on LAN, IEEE 802.1p Priority Queues, IEEE 802.1Q VLAN Tagging, Diagnostics utility |
OS Support |
Microsoft Windows XP/Vista/7/8/8.1/10, Microsoft Windows Server 2000/2003/2008/2012, Linux for Kernel 2.4/2.6/3.16, Mac OS X 10.2/10.3/10.4, Free BSD, NDIS 2 for DOS, Novell client for DOS, Novell client for server 5.x/6.x |
Power Consumption |
2.236 W maximum |
Certifications |
CE, FCC |
Diagnostic LEDs |
10/100/1000 Link, 10/100/1000 Activity |
Dimensions |
121 x 114.7 x 19 mm (4.76 x 4.52 x 0.75 inches) |
Weight |
46.6 grams (1.64 ounces) |
Standards |
IEEE 802.3, 802.3u, 802.3ab, PCI local bus 2.3, ANSI/IEEE 802.3 NWay auto-negotiation, Universal Bus Support 3.3 V / 5 V, IEEE 802.3x Flow Control |
Temperature |
Operating: 0 to 40 °C (32 to 104 °F), Storage: -25 to 55 °C (-13 to 131 °F) |
Humidity |
Operating: 5% to 90% non-condensing, Storage: 5% to 90% non-condensing |
| Brand | D Link |
|---|---|
| Warranty | 7 Day Replacement |
| Shipping | 24 - 48 hrs |
