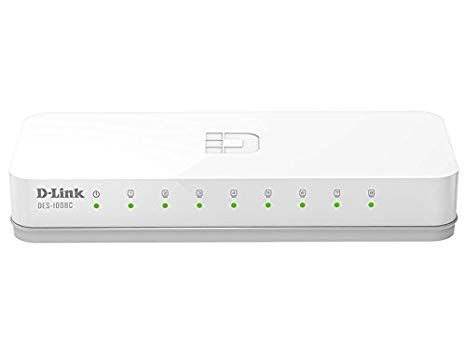

The DES-1008C 10/100 Mbps Unmanaged Switch is economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Fast Networking Made Easy
With data transfer speeds of up to 200 Mbps at full duplex, this switch is ideal for quick file transfers, online gaming and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover
makes connection a cinch; just plug in your cables and you’re ready to go.
Conserve Energy
The DES-1008C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DES-1008C is Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Device Interfaces
Eight 10/100 Mbps LAN ports
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Switching Capacity
1.6 Gbps switching fabric
Advanced Features
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
Supports 2,048 byte jumbo frames
Back pressure at half-duplex operation
Wire-speed reception and transmission
Store and-Forward switching method
Auto-negotiation for each port
EEE compliant IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3az EEE
IEEE 802.3x flow control
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Transmission Method
Store-and-forward
MAC Address Table Size
2,000
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
96 KB per device
Physical Parameters
LED Indicators
Per port: Link/Activity/Speed
Per device: Power
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Dimensions
131 x 54 x 21 mm
Weight
74.8 grams
Power
DC 5 V / 0.55 A
DC jack: Located on side
Power Consumption
Power On (Standby): 0.55 watts
Maximum: 1.55 watts
Temperature
Operating: 0° to 40°C
Storage: -40° to 70°C
Humidity
Operating: 10% to 90% (Non-condensing)
Storage: 5% to 95% (Non-condensing)
MTBF
1 579 582 hours
Maximum Heat Dissipation
0.691 BTU/h
Certifications
CE Class B
CE (LVD 2006/95/EC)
