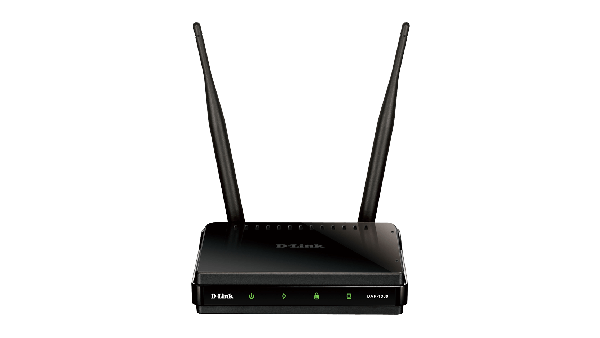

D-Link DAP‑1360 Wireless N Range Extender

The D-Link DAP-1360 Wireless N Range Extender can provide your wired network with wireless connectivity, or upgrade your existing wireless network and extend its coverage. Enjoy surfing the web, checking e-mail, and chatting with family and friends online, at faster speeds and from previously out-of-reach locations.

Wireless Security

The DAP-1360 provides 64/128-bit WEP encryption and WPA/WPA2 security to help protect your network and wireless data. This device also supports Wi-Fi Protected Setup (WPS) to quickly and securely set up a wireless network. In addition, the device features MAC address filtering and a disable SSID broadcast function to limit outsiders’ access to your home or office network.

Multiple Operation Modes

The DAP-1360 offers seven modes of operation, namely Access Point, Wireless Client, Bridge, Bridge with AP, Repeater, WISP Client Router, and WISP Repeater (Range Extender) Mode. These modes allow you to flexibly configure the device for use with different wireless applications. Access Point Mode allows the device to act as a central hub for wireless users. Wireless Client Mode enables the DAP-1360 to connect to another access point. Bridge Mode can join two wired networks together, while Bridge with AP Mode allows the device to act as a wireless hub and a bridge at the same time. Repeater Mode extends wireless coverage to cover all “dead” spots. WISP Client Router Mode allows wireless Internet service subscribers to share Internet connection with home/office Ethernet-enabled computers without the need for an extra router. Finally, the device can act as a WISP Repeater (Range Extender) to let WISP subscribers share their Internet connection with wired and wireless computers without any extra routers.

Quick and Easy Installation

With the D-Link setup wizard, you can set up your wireless network in minutes. It configures your DAP-1360’s operating mode and makes it easy to add new wireless devices to the network. Create a simple wireless network for your home or office quickly and easily with the DAP-1360.

Effective Power Saving

The DAP-1360 includes a built-in schedule function that turns the wireless network off when not in use. This feature reduces power consumption, thus saving you both energy and money.

Specs

Connectivity

Wireless N connectivity

Wireless 802.11g/b backward compatibility

Wireless speeds of up to 300 Mbps1

Multiple Operation Modes

Access Point

Wireless Client

Bridge

Bridge with AP

Repeater

WISP Client Router

WISP Repeater (Range Extender)

Security

WPA2/WPA wireless encryption

Wi-Fi Protected Setup (WPS)

Easy to Use

Built-in setup wizard

Technical Specifications

General

Network Standards

802.11n wireless LAN

802.11g wireless LAN

802.11b wireless LAN

802.3/802.3u 10BASE-T/100BASE-TX Ethernet

ANSI/IEEE 802.3 NWay auto-negotiation

Device Interfaces

802.11n/g/b wireless LAN

One 10/100BASE-TX Ethernet LAN port

Operating Frequency

2.4 to 2.4835 GHz

Operating Channels

FCC: 11

ETSI: 13

Radio & Modulation Schemes

DQPSK, DBPSK, CCK, OFDM

Functionality

Operating Modes

Access Point

Wireless Client

Bridge

Bridge with AP

Repeater (Range Extender)

WISP Client Router

WISP Repeater

Antennas

Two 2 dBi Gain detachable omni-directional antennas with RP-SMA connector

Security

64/128-bit WEP data encryption

WPA-PSK, WPA2-PSK

WPA-EAP, WPA2-EAP

TKIP, AES

MAC address filtering

SSID broadcast disable function

WPS (Wi-Fi Protected Setup)

Advanced Features

Quality of Service (QoS): Wi-Fi Multimedia (WMM)

Device Management

Web-based management through Microsoft Internet Explorer 6 or higher, Firefox 3.0 or higher, or other Java-enabled browser

Status LEDs

Power

Wireless

Security

LAN

Physical

Dimensions

147.5 x 113 x 31.5 mm (5.81 x 4.45 x 1.24 inches)

Weight

185.7 grams (6.55 ounces)

Power Input

12 V DC/0.5 A external power adapter

Temperature

Operating: 0 to 40 °C (32 to 104 °F)

Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

Operating: 10% to 90% non-condensing

Storage: 5% to 95% non-condensing

Certifications

FCC Class B, CE, IC, C-Tick, Wi-Fi Certified
