Using COUGAR’s exclusive 120 mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.

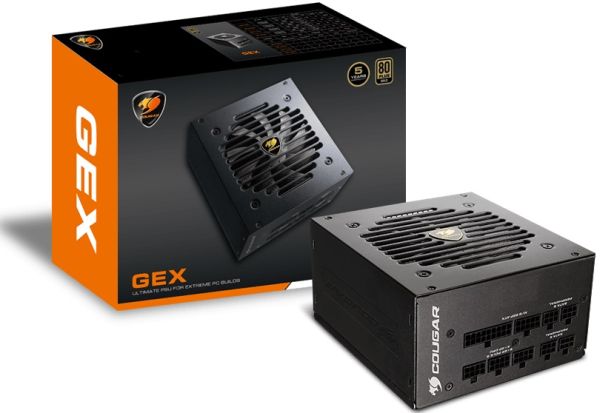

Cougar 850W PSU GEX850 80Plus Gold Certified Gaming Power Supply
SKU
U62201
Category: Power Supply
GEX
COUGAR GEX is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40°C environments. Efficient, silent and durable, GEX is the best answer for those looking for the best value in PSUs.
Efficiency
GEX features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.
Extreme Cooling System
Durability
Firstly, GEX has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments.
Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.
Stability
GEX’s LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stable operation.
Compact
Flat and long modular cables for better airflow and a tidier case
100% external cable management: get less cable clutter and a cleaner build!
Features
80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill
Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow
COUGAR HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels
Superior fan Curve Tuning
Advanced technology for noise minimization
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature
Ultra-stable Voltage Outputs
DC to DC technology for enhanced voltage stability
Dimension
160 x 150 x 86 (mm)
Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP
Maximum safety for your key system components
Specifications
| Model Name | AC Input | DC output | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
| GEX650 | AC100-240V 50-60Hz 10-5A |
18A | 20A | 54.1A | 0.3A | 3A | 650W |
| 100W | 649.2W | ||||||
| GEX750 | AC100-240V 50-60Hz 10-5A |
18A | 20A | 62.5A | 0.3A | 3A | 750W |
| 100W | 750W | ||||||
| GEX850 | AC100-240V 50-60Hz 12-6A |
20A | 20A | 70.8A | 0.3A | 3A | 850W |
| 120W | 849.6W | ||||||
| Connector | Main | CPU | Peripherals | S-ATA | PCI-E |
| Pin | 24(20+4) Pins | 8(4+4) Pins | 4 Pins | 5 Pins | 8(6+2) Pins |
| GEX650 | 1 | 2 | 6 | 8 | 4 |
| GEX750 | 1 | 2 | 6 | 8 | 4 |
| GEX850 | 1 | 2 | 6 | 8 | 6 |
| Brand | Cougar |
|---|---|
| Shipping | 24 - 48 hrs |
