Cisco Switch Catalyst WS-C2960X-48FPS-L

Quick Specs

Table 1 shows the Quick Specs.

Product Details

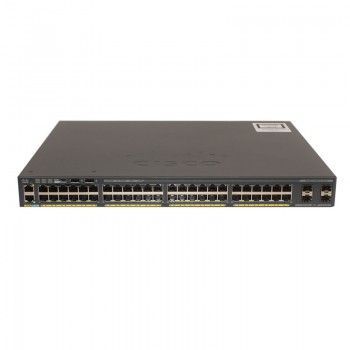

Figure 1 shows the front panel of the Cisco Catalyst 2960X-48FPS-L switch.

Note:

① Ethernet management port ② Mode button ③ Switch LEDs ④ USB mini-Type B (console) port ⑤ USB Type A ports

⑥ SFP module ports ⑦ 48 x 10/100/1000 ports ⑧ CONSOLE LED ⑨ MGMT LED ⑩ RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.

·Power over Ethernet Plus(PoE+) supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port.

Figure 2 shows the back panel of the Cisco Catalyst 2960X-48FPS-L switch.

Note:

① FlexStack-Plus module slot and cover ② Fan Exhaust  ③ RPS Connector ④ AC power connector

Figure 3 shows the stackable capacity.

This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.

Figure 4 shows WS-C2960X-48FPS-L and cables.

The Accessories

Table 2 shows some accessories of WS-C2960X-48FPS-L.

Solution

How to use this product to build Network for Small Business (Requires Router & Voice Module)?
