Cisco SPA8000-G5 VoIP 8-Ports ip Telephony Gateway

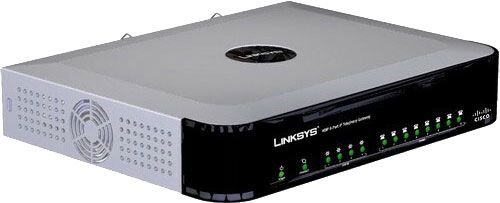

The Cisco SPA8000 8-Port IP Telephony Gateway (Figure 1) is a full-featured analog telephone adapter (ATA) for small businesses, providing enhanced communication services via a broadband connection to the Internet.

The Cisco SPA8000 features eight RJ-11 FXS ports to connect analog telephones to IP-based data networks and includes a single multiport RJ-21 50-pin connector, offering an alternative connection choice when deploying the telephony gateway in varied environments. The device also has one 10/100BASE-T RJ-45 Ethernet interface to connect to either a router or a multilayer switch.

Solid in design, the Cisco SPA8000 is an affordable solution that is ideally suited for use in business and consumer voice over IP (VoIP) service offerings, including call centers and multidwelling environments. Customers can protect and extend their investment by continuing to use their existing analog telephones and teleconferencing equipment.

Installed by the end user and remotely provisioned, configured, and maintained by the service provider, each Cisco SPA8000 converts voice traffic into data packets for transmission over an IP network and uses common standards for voice and data networking for reliable voice and fax operation.

Features

Toll-quality voice and carrier-grade feature support: The Cisco SPA8000 delivers clear, high-quality voice communication in diverse network conditions. Excellent voice quality in a demanding IP network is achieved via the advanced implementation of standard voice coding algorithms. The SPA8000 is interoperable with common telephony equipment such as voicemail, fax, private branch exchange (PBX), and interactive voice response systems.

Large-scale deployment and management: The Cisco SPA8000 enables service providers to provide customized services to their subscribers. It can be remotely provisioned and supports dynamic, in-service software upgrades. A highly secure profile upload saves providers the time and expense of managing and preconfiguring or reconfiguring customer premises equipment (CPE).

Ironclad security: Cisco understands that security for both end users and service providers is a fundamental requirement for a solid, carrier-grade telephony service. The Cisco SPA8000 supports highly secure, encryption-based methods for communication, provisioning, and servicing.

Telephony Features

Eight voice ports (RJ11) for analog phones or fax machines

Impedance agnostics: eight configurable settings

Call waiting, cancel call waiting, call waiting caller ID

Caller ID with name and number (multinational variants)

Caller ID blocking

Call forwarding: no answer, busy, all

Do not disturb

Call transfer

Three-way conference calling with local mixing

Message waiting indication-visual and tone based

Call return

Call back on busy

Call blocking with toll restriction

Delayed disconnect

Distinctive ringing-calling and called number

Off-hook warning tone

Selective/anonymous call rejection

Touch-tone phone keypad configuration with interactive voice response (IVR)

Fax: G.711 pass-through or real-time fax over IP via T.38 (T.38 support is dependent on fax machine and network/transport resilience)

Specifications

Table 1 contains the specifications and package contents for the Cisco SPA8000 8-Port IP Telephony Gateway. Table 2 compares the SPA8000 with other Cisco Small Business Voice products.
