Cisco SG350X-24P-K9 (POE) Gigabit Stackable Switch

Overview

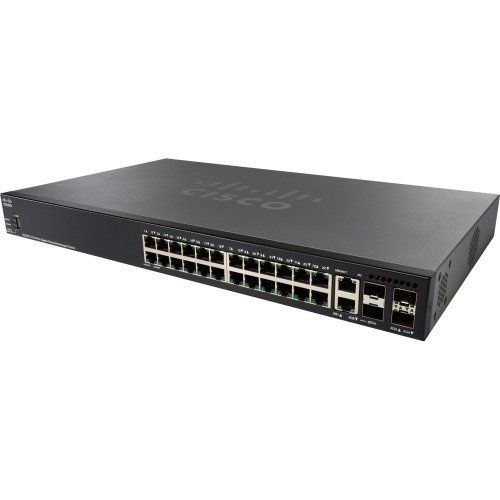

The Cisco® 350X Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. The SG350X models provide 24 or 48 ports of Gigabit and Multigigabit Ethernet connectivity with 10 Gigabit uplinks. The Cisco 350XG models provide 12, 24, or 48 ports of all 10 Gigabit Ethernet, providing a solid foundation for your current business applications as well as those you are planning for the future. In addition, these switches are easy to deploy and manage without a large IT staff. The SG350X platforms are Cisco’s most cost-effective platforms with 10 Gigabit Ethernet and stacking. Quick Specs Figure 1 shows the appearance of SG350X-24.

General
Product ID SG350X-24-K9
Short Description Switch: L3 managed, 24 x 10/100/1000 + 2 x 10GE combo + 2 x 10GE SFP+, rack-mountable
Device type Switch: 1G, 24 ports, L3 managed
Enclosure type Rack-mountable, 1RU
Ports 24 x 10/100/1000 + 2 x 10GE copper/SFP+ combo + 2 x 10GE SFP+
Power over Ethernet (PoE) None
Switching capacity 128 Gbps
Forwarding performance (64-byte packets) 95.23 Mpps
MAC address table size 16,000 entries
Capacity (active VLANS) 4000
Routing protocol Static IPv4 /IPv6 routing
Remote management protocol SNMP1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI

Features
Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, sFlow, RSPAN

Compliant standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
RAM 512 MB
Flash memory 256 MB
Status indicators System, Master, Fan, Stack ID, Link/Speed per port
Expansion and Connectivity
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45, 2 x 10GBase-T/SFP+ combo, 2 x SFP+, 1 x console - RJ45

Power
Power supply Internal
Voltage required AC 120/230V (50/60 Hz)
Width 17.3 in. (440 mm)
Depth 10.1 in. (257 mm)
Height 1.73 in. (44 mm)
Weight 9.52 lb (4.32 kg)
Cables included 1 x console cable
Compliance standards UL 60950, FCC Part 15 A, CSA 22.2
