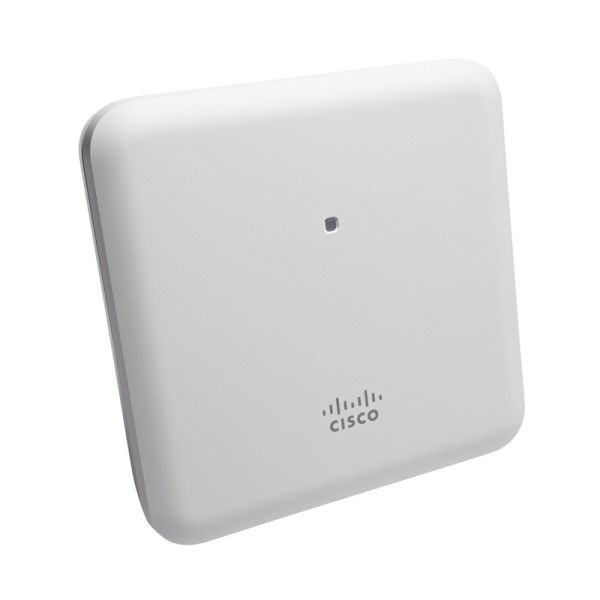

Cisco AIR-AP2802I-A-K9 Access Point

Product description



AIR-AP2802I-A-K9 is one of the Cisco Aironet 2800 Series Access Points. This
2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large
enterprise organizations that rely on Wi-Fi to engage with customers. The Series
is a hands-off product that’s intelligent enough to make decisions based on
end-device activities and usage. AIR-AP2802I-A-K9 provides internal antenna and
A regulatory domain.



Product Code

AIR-AP2802I-H-K9

Frequency band and 20-MHz operating channels



H (H regulatory domain):

2.412 to 2.472 GHz; 13 channels

5.150 to 5.350 GHz; 8 channels

5.745 to 5.825 GHz; 5 channels



Antenna

Internal Antenna



Features

4x4 MU-MIMO with three spatial streams



MRC

802.11ac Beamforming

20-, 40-, 80, 160-MHz channels

PHY data rates up to 5.2 Gbps

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support



Interfaces

2 x 100/1000BASE-T autosensing (RJ-45)

Management console port (RJ-45)

USB 2.0 (enabled via future software)



System memory



1024 MB DRAM

256 MB flash



Dimensions (W x L x H)

8.66 x 8.68 x 2.17 in.



Net Weight

3.53 lb (1.6 kg)
