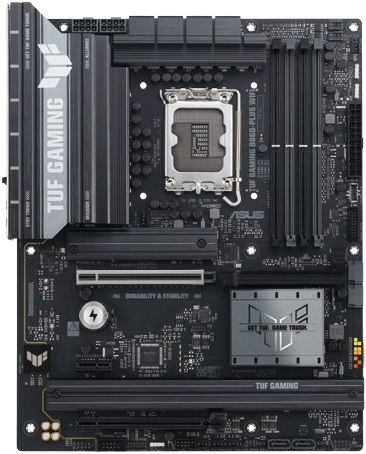

Asus TUF Gaming B860 Plus WIFI DDR5 Motherboard With Ai Advisor

Intel Core Ultra Processors (Series 2)

Expansion Slots

» 1 x PCIe 5.0 x16 SafeSlot
» 1 x PCIe 4.0 x16 slot
   (supports x4 mode)
» 1 x PCIe 4.0 x1 slot

12(80A) + 1(80A) + 2(80A) + 1(80A) Power Stages

4 x DIMM

» DDR5

» Dual Channel

» AEMP III

3 x M.2 Slots

» 1 x M.2 2280 PCIe 5.0 x4

» 1 x M.2 2280/22110 PCIe 4.0 x4

» 1 x M.2 2242/2260/2280 PCIe 4.0 x4​

VRM Heatsinks

Two M.2 Heatsinks for Three M.2 Slots

CPU / CPU OPT Fan Headers & AIO Pump Header

Chipset Heatsink

4 x Chassis Fan Headers

Realtek Audio Codec

Exclusive DTS Audio Processing

» Audio Shielding

» Rear Optical S/PDIF Out Port

» Premium Audio Capacitors

» Dedicated Audio PCB Layers

» TUF Gaming Audio Cover

Aura Edge Lighting

3 x Addressable Gen2 RGB Headers

DisplayPort
HDMI™

1 x USB 5Gbps
1 x USB 20Gbps (with DP Alt mode)

BIOS FlashBack™ Button

2 x USB 2.0
2 x USB 5Gbps

Realtek 2.5Gb Ethernet
2 x USB 10Gbps

WiFi 7

1 x Optical S/PDIF Out
5 x Audio Jacks

1 x USB 10Gbps Connector

1 x USB 5Gbps Header

1 x 2.0 Header

ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

Availability of ASUS AI Advisor may vary by region.

AI Advisor functions may vary by platform.

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

Provides easy-to-use configuration options for PC beginners and advanced features for veterans.

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

12

VCCCORE

Power

(80A, DrMOS)

1

VCCGT

Power

(80A, DrMOS)

2

VCCSA

Power

(80A, DrMOS)

1

VNNAON

Power

(80A, DrMOS)

Enhanced stability and overclocking.

This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Proprietary 8+8 pin connectors improve PSU connection.

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF chokes and capacitors offer rock-solid durability and stability.

TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Real-time voltage control.

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

*Results may vary according to individual system specifications. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.​

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

This motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Bandwidth (Gbps)

PCIe 5.0 x4

128

PCIe 4.0 x4

64

PCIe 3.0 x4

32

Actual transmission speed will be lower than theoretical maximum speed.

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Image is for reference only.

This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C with DP Alt mode and front USB 10Gbps Type-C

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

This motherboard features a USB Type-C front panel connector for speedy data transfers of up to 10Gbps.

This motherboard features a rear USB 20Gbps Type-C with DP Alt mode for speedy data transfers of up to 20Gbps.

A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button—no CPU or memory needed.

SafeSlot is a reinforced metal sheath integrated with a PCIe slot to keep a card firmly installed and to ensure the highest possible data speeds. The SafeDIMM sheath is integrated to protect memory modules, empowering you to insert them with speed, accuracy and confidence.​

ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.​

TUF Gaming motherboards feature a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.​

Longer Lifespan

Salt Fog Testing

play/pause

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
