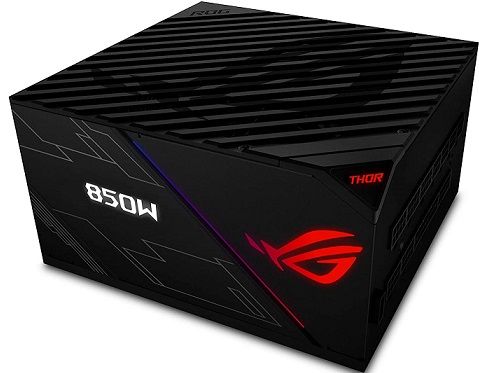

ASUS ROG Thor 850 Certified 850W Fully-Modular RGB Power Supply

Overview

ROG-THOR-850P

ROG Thor 850W Platinum Power Supply Unit stands out with Aura Sync and an OLED display

Aura Sync : Advanced customization with addressable RGB LEDs and Aura Sync compatibility

OLED Power Display : Real-time power draw monitoring with OLED Power Display

ROG Thermal Solution : 0dB cooling with dustproof IP5X Wing-blade Fan and ROG heatsink design

80 PLUS Platinum : Built with 100% Japanese capacitors and other premium components

Sleeved Cables : For easy building and superior aesthetics

ROG-THOR-850P

ROG Thor 850W Platinum Power Supply Unit stands out with Aura Sync and an OLED display

Aura Sync : Advanced customization with addressable RGB LEDs and Aura Sync compatibility

OLED Power Display : Real-time power draw monitoring with OLED Power Display

ROG Thermal Solution : 0dB cooling with dustproof IP5X Wing-blade Fan and ROG heatsink design

80 PLUS Platinum : Built with 100% Japanese capacitors and other premium components

Sleeved Cables : For easy building and superior aesthetics

Intel Specification

ATX12V

Dimensions

16 x 15 x 8.6 Centimeter

Efficiency

80Plus Platinum (At 20%/50%/100% load AC 115V 60Hz and AC 230V 50Hz, the power efficiency is 90%/92%/89%.)

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

RGB Connector

Aura Sync

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 71A 0.3A 3A

Total Output

850W

Connectors

MB 24/20-pin*1
CPU 8/4-pin*2
PCIE 8/6-pin*4
SATA *12
Peripheral 4-pin*5
Floppy*1

Package Contents

Power Cord x 1
Motherboard Power Cable (24-pin) x 1
CPU Cable (4+4-pin) x 2
PCI-E Cable (6+2-pin) x 3
SATA Cable x 3
Peripheral x 2
SATA to Peripheral Cable x 1
Addressable RGB Cables x 2
ROG Sticker x 1
ROG Cable Tie x 4
Sleeved Cable Combs (6-pin) x 2
Sleeved Cable Combs (8-pin) x 6
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 10
User Manual x 1
